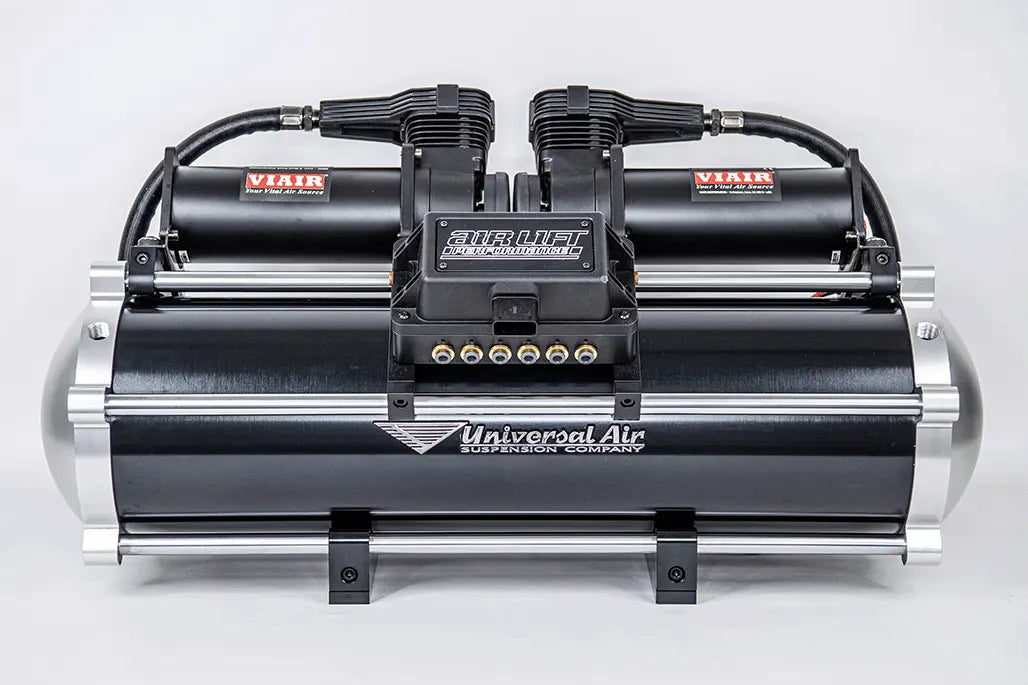

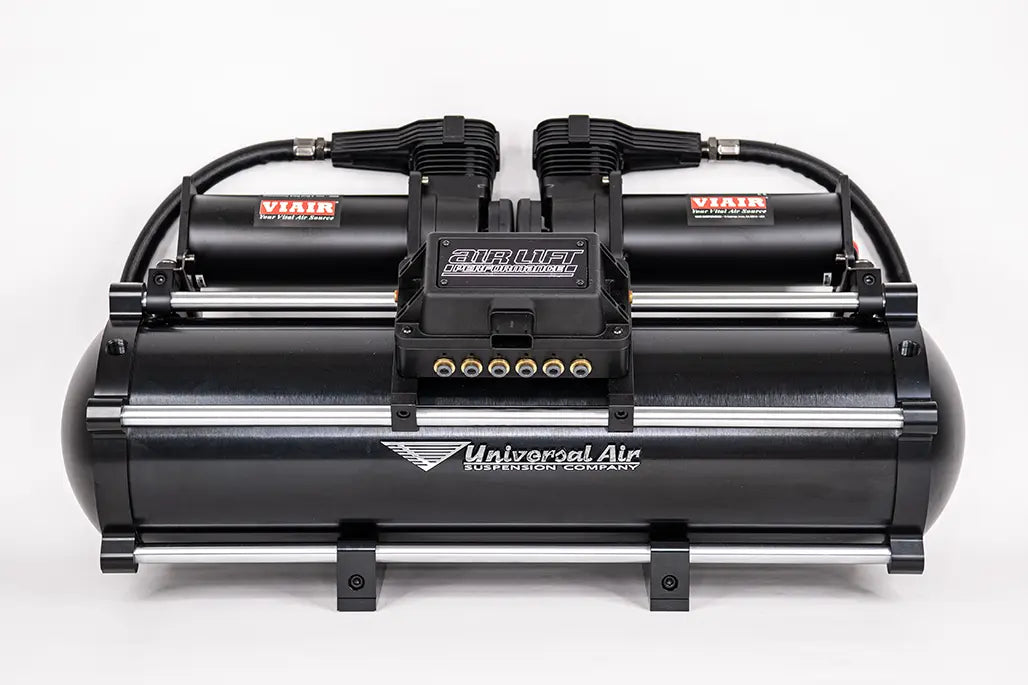

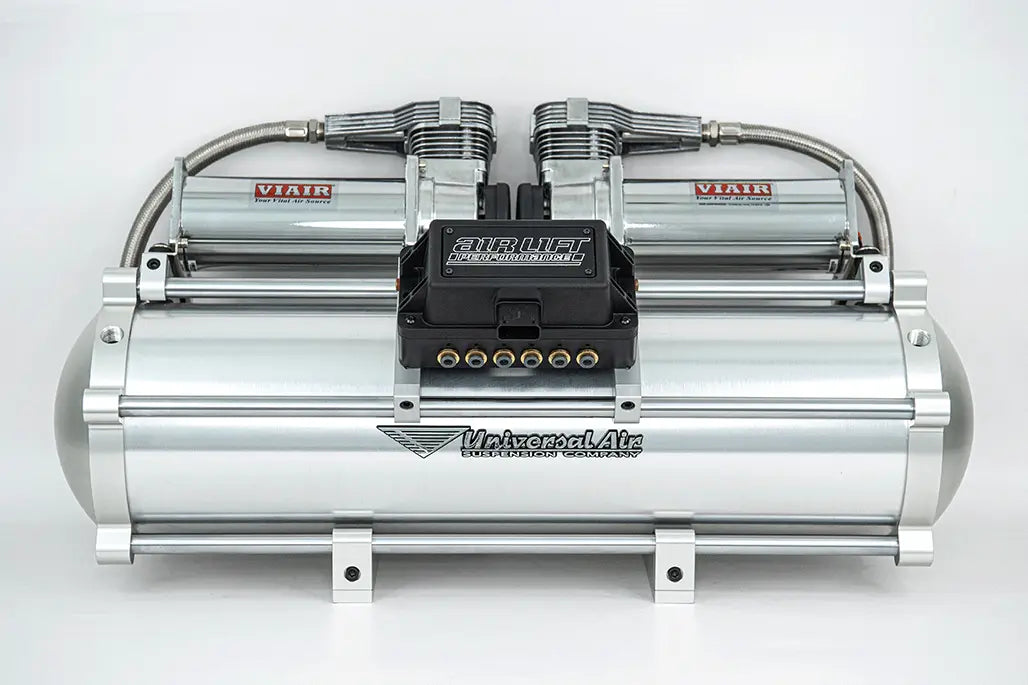

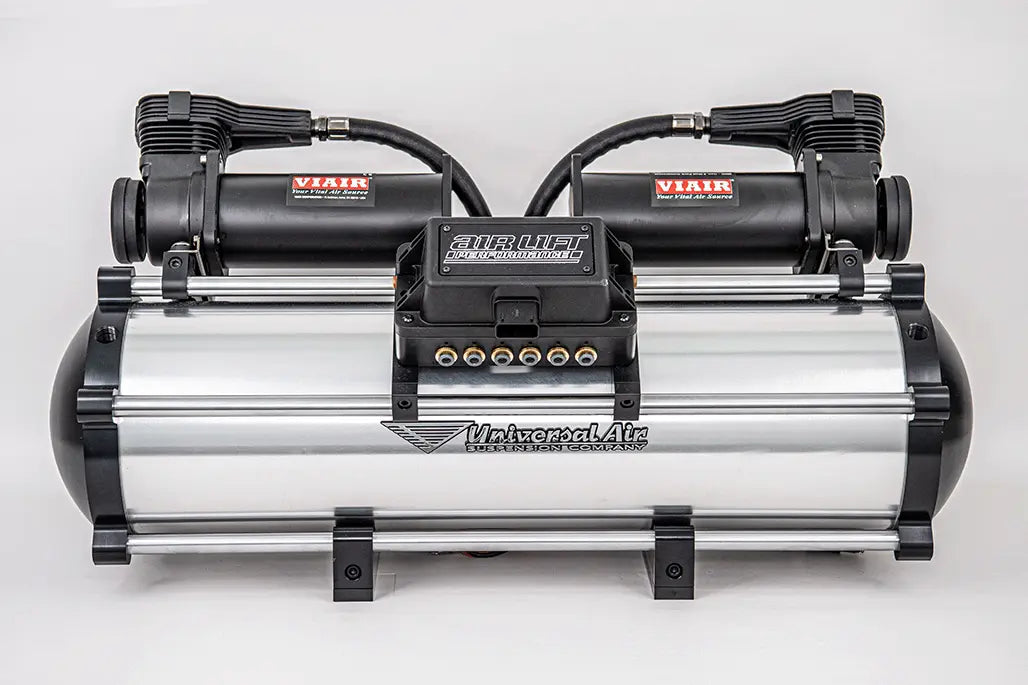

Universal Air Billet Modular Air Tank – 24, 28 & 32 Inch

Build an organized air suspension setup around the Universal Air Billet Modular Air Tank. Five integrated mounting rails provide flexible positions for compatible compressor and manifold brackets, helping keep your equipment together and accessible.

Availability: Available to order from Universal Air in 24-, 28-, and 32-inch sizes with black end caps and either a silver or black tube. These are supplier-order items; current supplier stock and dispatch timing are confirmed for each order. Other finishes are unavailable to order until confirmed.

Choose your tank

Features

• Machined aluminum end caps and an aluminum center tube.
• Five integrated cross shafts / mounting rails.
• Bolt-together construction with black or silver end-cap and tube combinations.
• Bottom clamp-on mounting feet included.
• Manufacturer-listed depth: 9 inches; height with feet facing down: 9 5/8 inches.
• Each end cap has two 3/8-inch NPT ports and one 1/4-inch NPT port.

Optional compressor and manifold mounts

Add the separately sold Universal Air compressor / Air Lift manifold mount pair to attach a compatible Viair compressor or an Air Lift 3P/3H manifold. One pair supports one component. A layout with two compressors and one manifold requires three pairs.

Included: selected tank and bottom mounting feet. Compressors, manifold, and accessory mounting brackets are sold separately. Photos show finish examples; select the required tank length and finish.

Verify vehicle clearance, component mounting patterns, and fitting requirements before installation.
