Sky High Car Audio | SKU:
Sold out

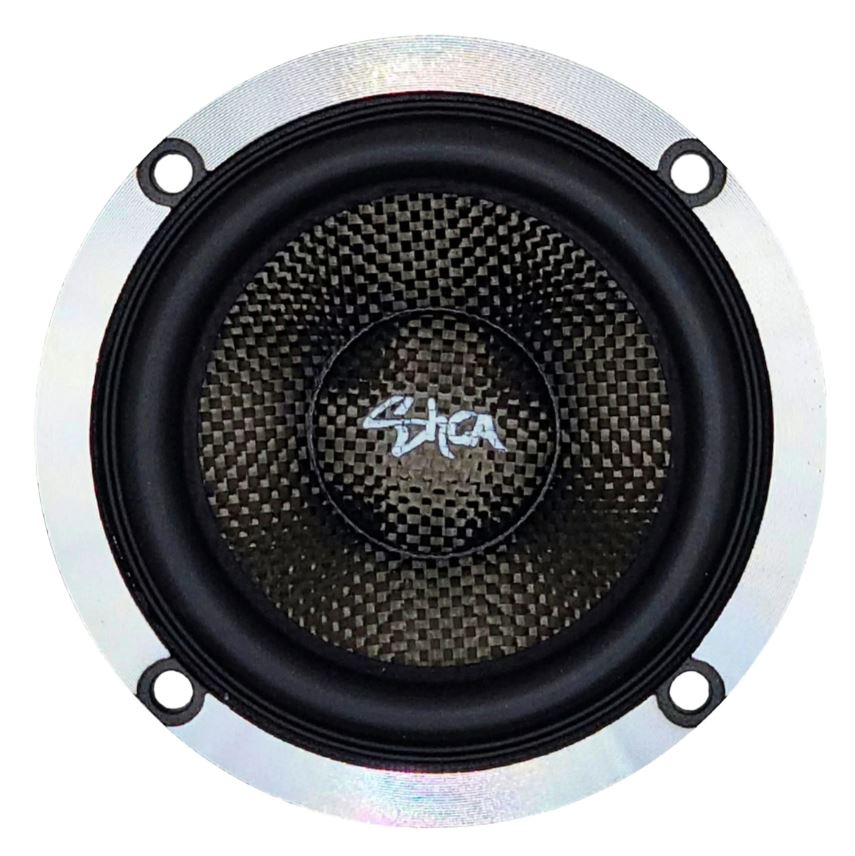

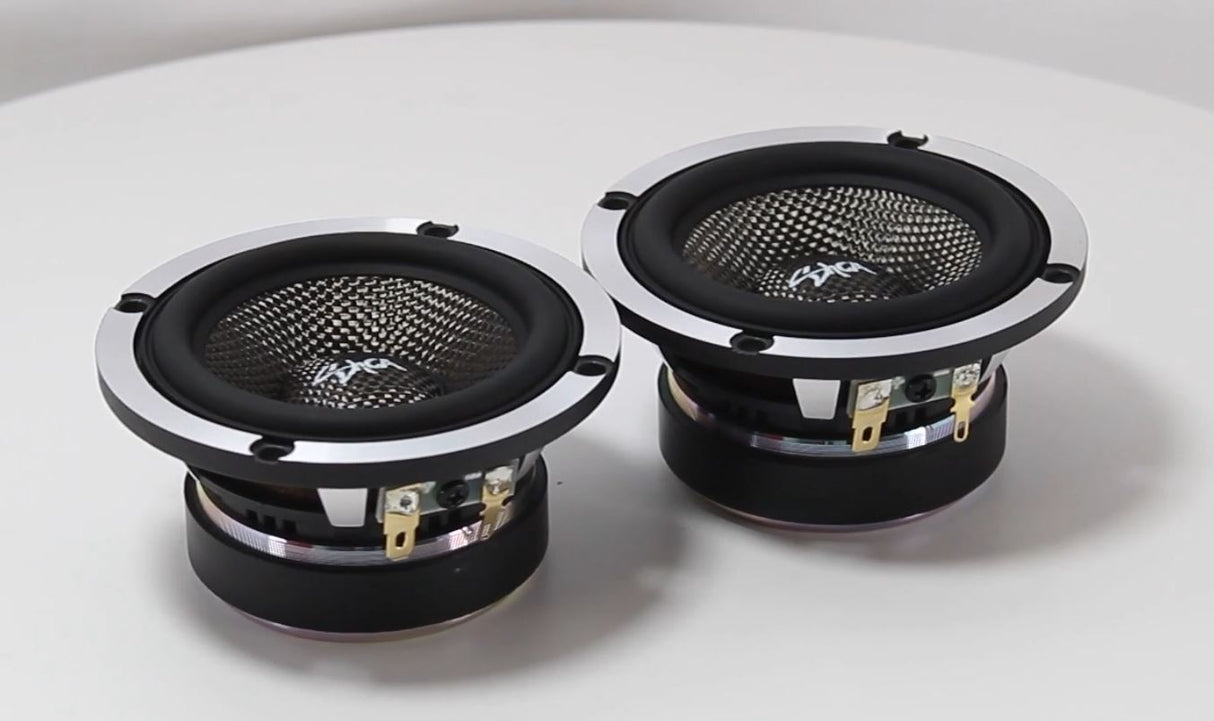

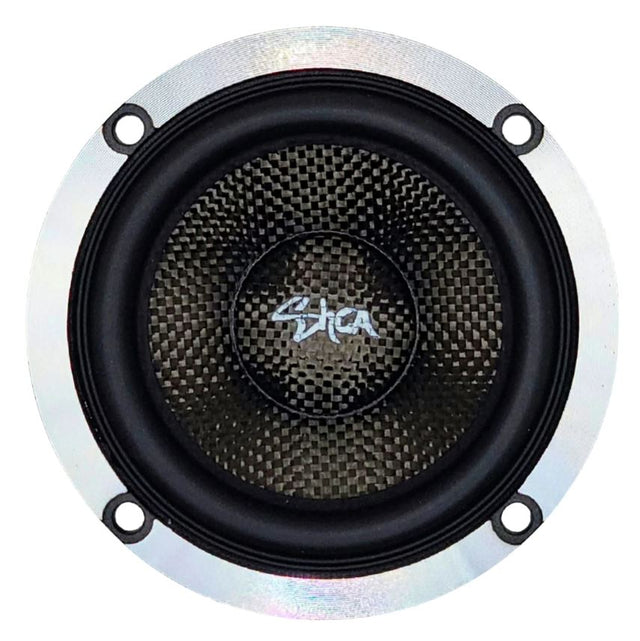

Sky High Car Audio 3.5" Neo Midrange Speakers 120W 4 Ohms SHCA-35
Regular price
$89.99
Unit price
Sky High Car Audio 3.5" Neo Midrange Speakers 120W 4 Ohms SHCA-35 is backordered and will ship as soon as it is back in stock.
Pickup currently unavailable at Serious Innovations Clifton Location
Sky High Car Audio 3.5" Neo Midrange Speakers 120W 4 Ohms SHCA-35 is backordered and will ship as soon as it is back in stock.
Description
Description
Pair of 3.5? Midrange Speakers Loud Car Audio 1?VC 4 ohm 240 W SHCA-35
Features:
- Peak Power Handling: 120 W
- Voice Coil Diameter: 1?
- Nominal Impedance: 4 Ohms
- Frequency Response: 85Hz-20KHz
- Basket Material: Aluminum

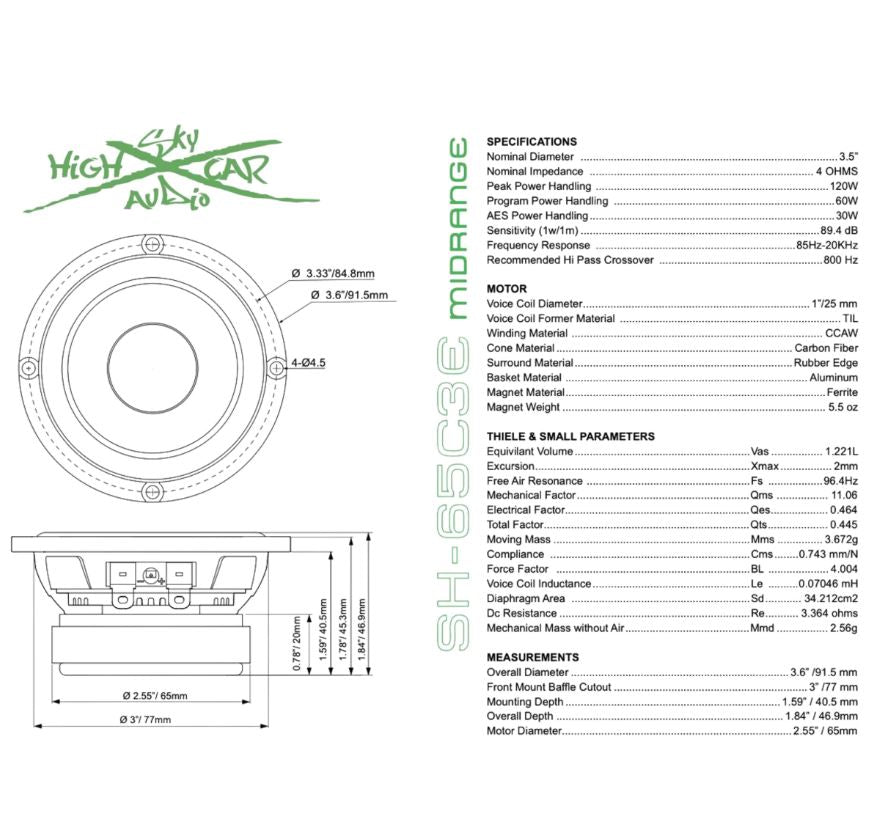

Specs:
- Nominal Diameter: 3?
- Nominal Impedance: 4 Ohms
- Peak Power Handling: 120 W
- Program Power Handling: 60 W
- AES Power Handling: 30 W
- Sensitivity (1w/1m): 89.4 dB
- Frequency Response: 85Hz-20KHz
- Recommended Hi Pass Crossover: 800Hz
- Voice Coil Diameter: 1?
- Voice Coil Former Material: TIL
- Winding Material: CCAW
- Cone Material: Carbon Fiber
- Surround Material: Rubber Edge
- Basket Material: Aluminum
- Magnet Material: Ferrite
- Magnet Weight: 5.5 oz
- Equivalent Volume: (Vas) 1.221L
- Excursion: (Xmax) 2mm
- Free Air Resonance: (Fs) 96.4 Hz
- Mechanical Factor: (Qms) 11.06
- Electrical Factor: (Qes) 0.464
- Total Factor: (Qts) 0.445
- Moving Mass: (Mms) 3.672g
- Compliance: (Cms)
- Force Factor: (BL) 0.743 mm/N
- Voice Coil Inductance: (Le) 0.07046 mH
- Diaphragm Area: (Sd) 34.212cm2
- Dc Resistance: (Re) 3.364 ohms
- Mechanical Mass without Air: (Mmd) 2.56g
- Recommended Hi Pass Crossover on SHCA-SH-35: 800Hz
This listing includes:
- (1) Pair of 3.5? Midrange Speakers Loud Car Audio 1?VC 4 ohm 240 W SHCA-35
Package Dimensions:
- Length: 8.75?
- Width: 4.75?
- Height: 3?
- Weight: 2.06 lb
Item Dimensions:
- Overall Diameter: 3.6?
- Front Mount Baffle Cutout: 3?
- Mounting Depth: 1.59?
- Overall Depth: 1.84?
- Motor Diameter: 2.55?
Features:
- Peak Power Handling: 120 W
- Voice Coil Diameter: 1?
- Nominal Impedance: 4 Ohms
- Frequency Response: 85Hz-20KHz
- Basket Material: Aluminum
Specs:
- Nominal Diameter: 3?
- Nominal Impedance: 4 Ohms
- Peak Power Handling: 120 W
- Program Power Handling: 60 W
- AES Power Handling: 30 W
- Sensitivity (1w/1m): 89.4 dB
- Frequency Response: 85Hz-20KHz
- Recommended Hi Pass Crossover: 800Hz
- Voice Coil Diameter: 1?
- Voice Coil Former Material: TIL
- Winding Material: CCAW
- Cone Material: Carbon Fiber
- Surround Material: Rubber Edge
- Basket Material: Aluminum
- Magnet Material: Ferrite
- Magnet Weight: 5.5 oz
- Equivalent Volume: (Vas) 1.221L
- Excursion: (Xmax) 2mm
- Free Air Resonance: (Fs) 96.4 Hz
- Mechanical Factor: (Qms) 11.06
- Electrical Factor: (Qes) 0.464
- Total Factor: (Qts) 0.445
- Moving Mass: (Mms) 3.672g
- Compliance: (Cms)
- Force Factor: (BL) 0.743 mm/N
- Voice Coil Inductance: (Le) 0.07046 mH
- Diaphragm Area: (Sd) 34.212cm2
- Dc Resistance: (Re) 3.364 ohms
- Mechanical Mass without Air: (Mmd) 2.56g
- Recommended Hi Pass Crossover on SHCA-SH-35: 800Hz
This listing includes:
- (1) Pair of 3.5? Midrange Speakers Loud Car Audio 1?VC 4 ohm 240 W SHCA-35
Package Dimensions:
- Length: 8.75?
- Width: 4.75?
- Height: 3?
- Weight: 2.06 lb
Item Dimensions:
- Overall Diameter: 3.6?
- Front Mount Baffle Cutout: 3?
- Mounting Depth: 1.59?
- Overall Depth: 1.84?
- Motor Diameter: 2.55?
