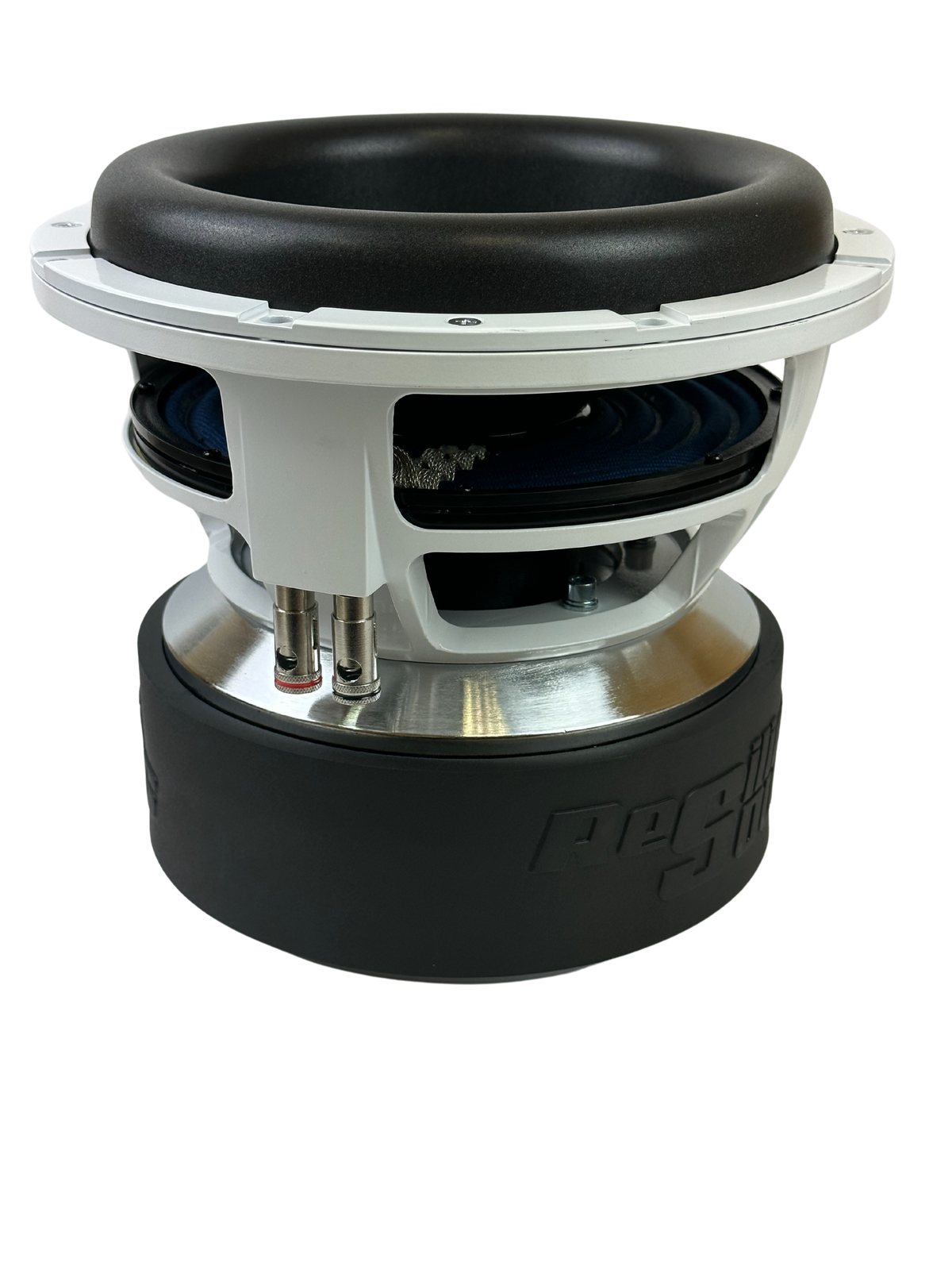

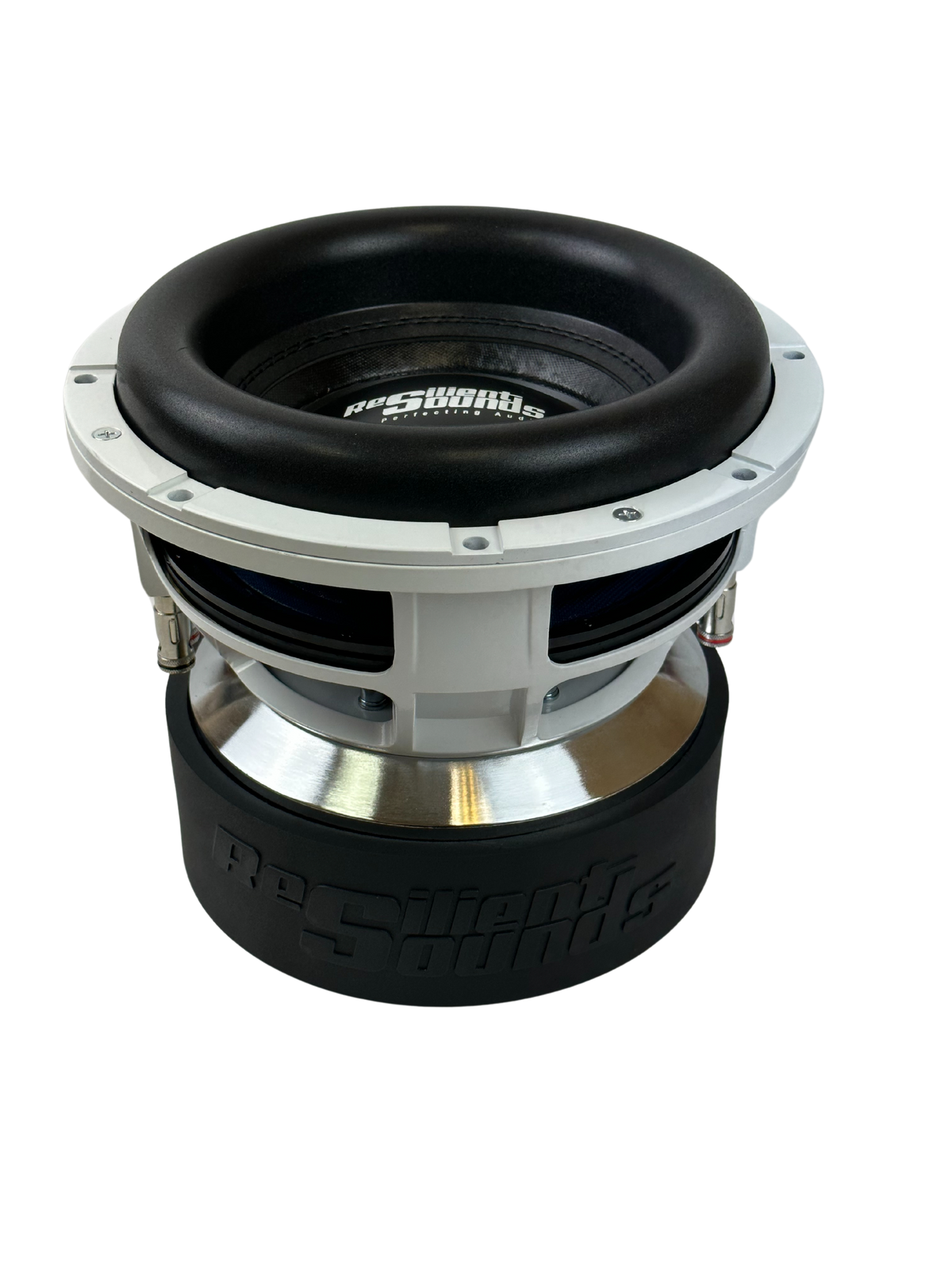

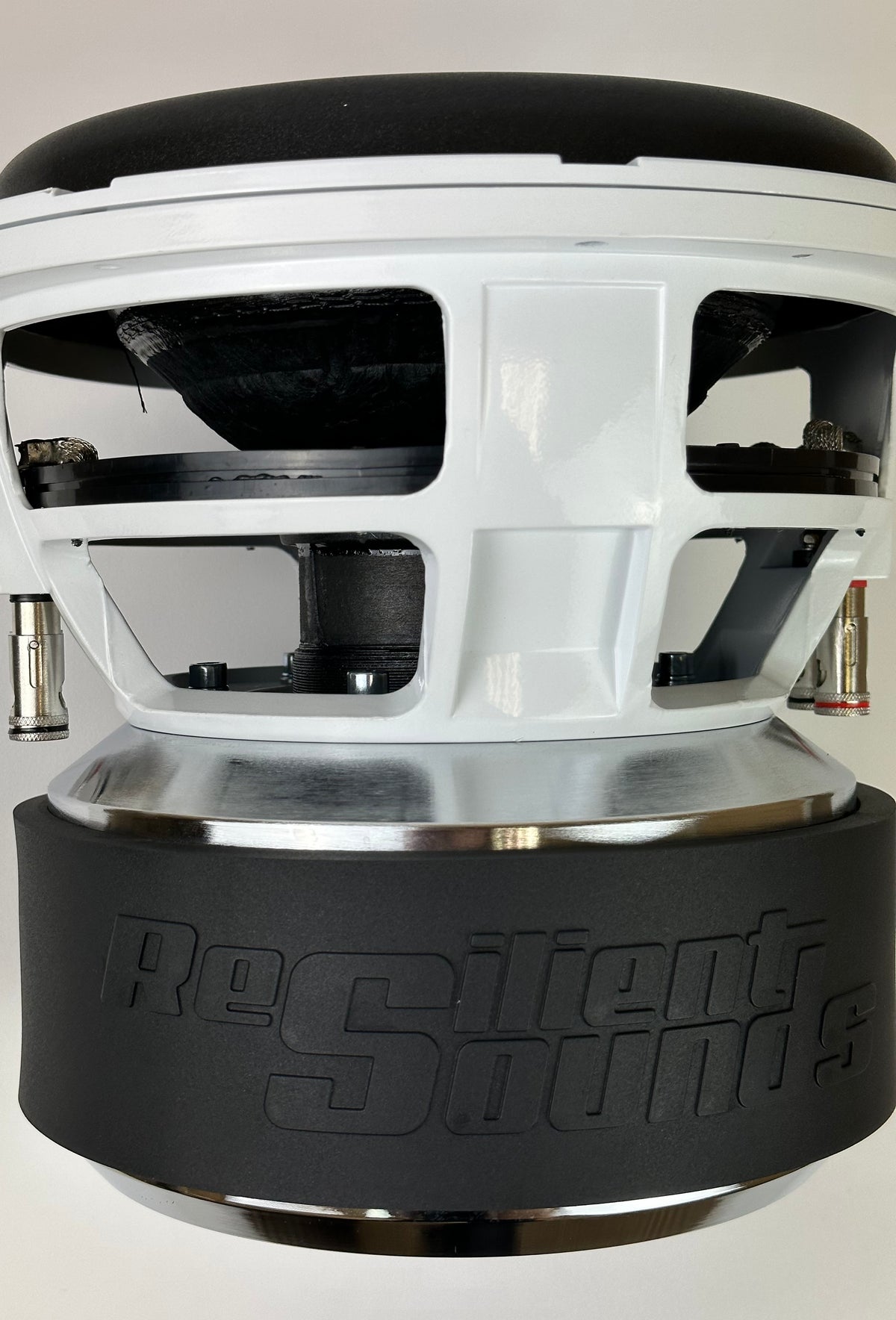

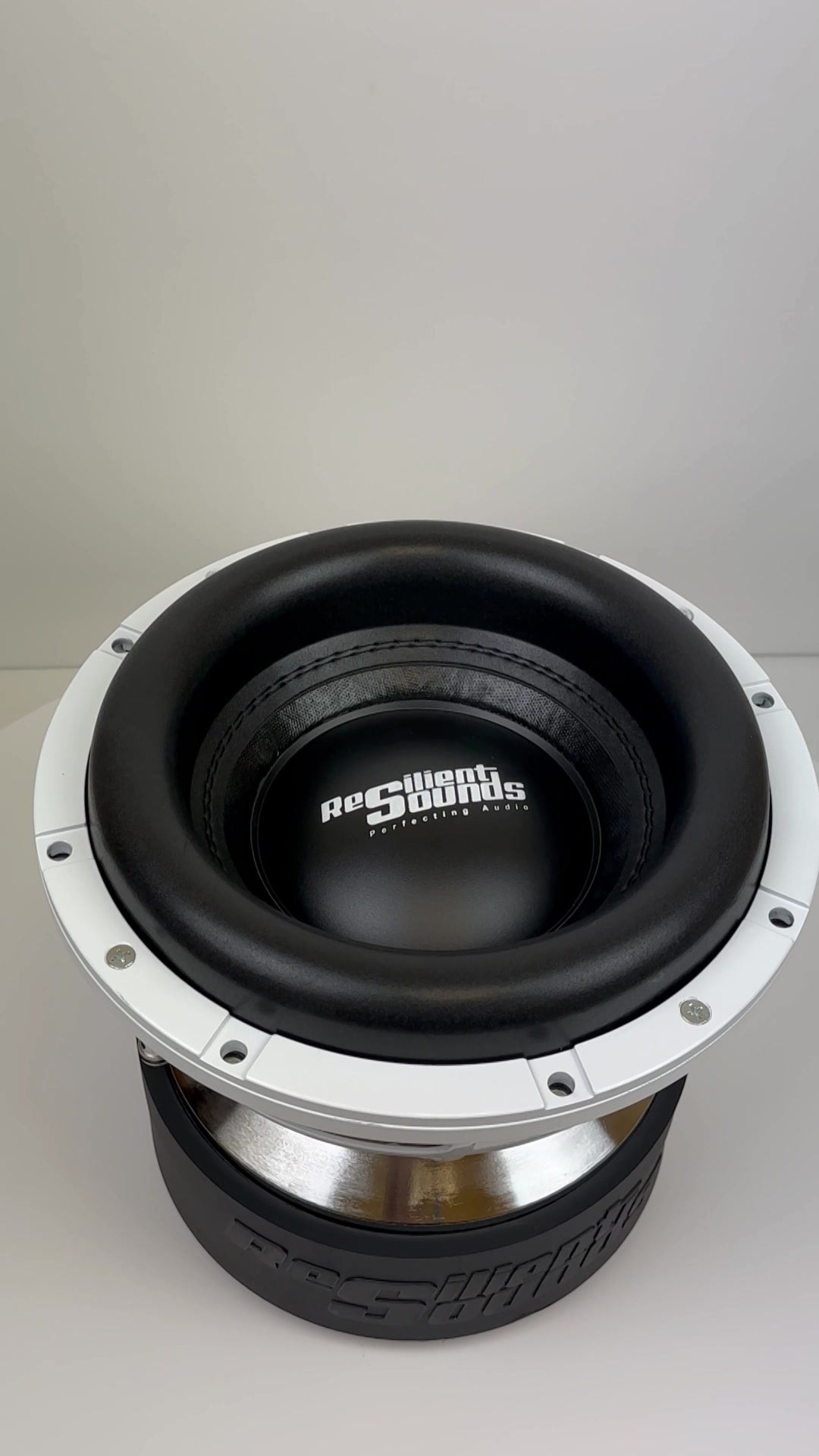

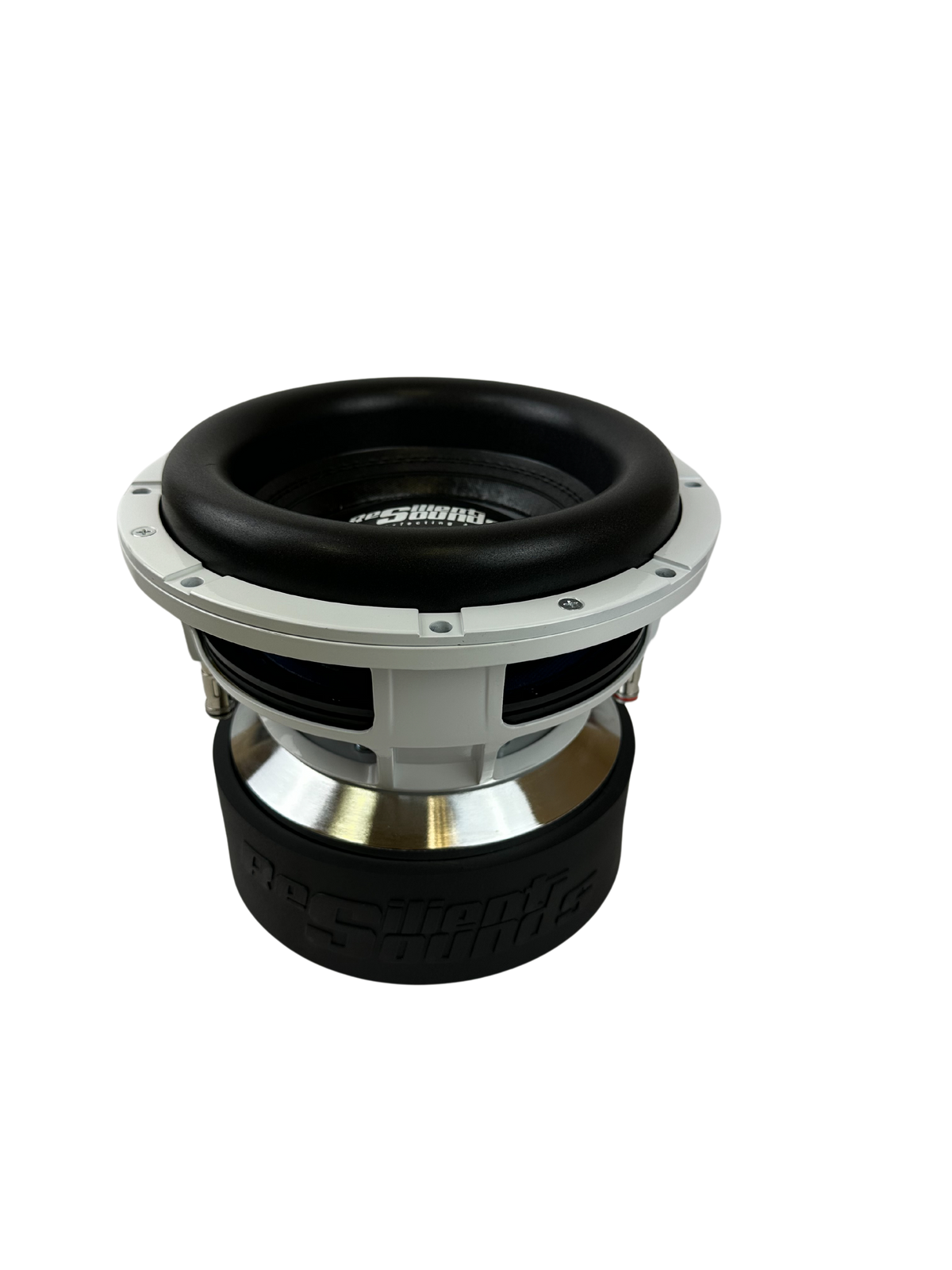

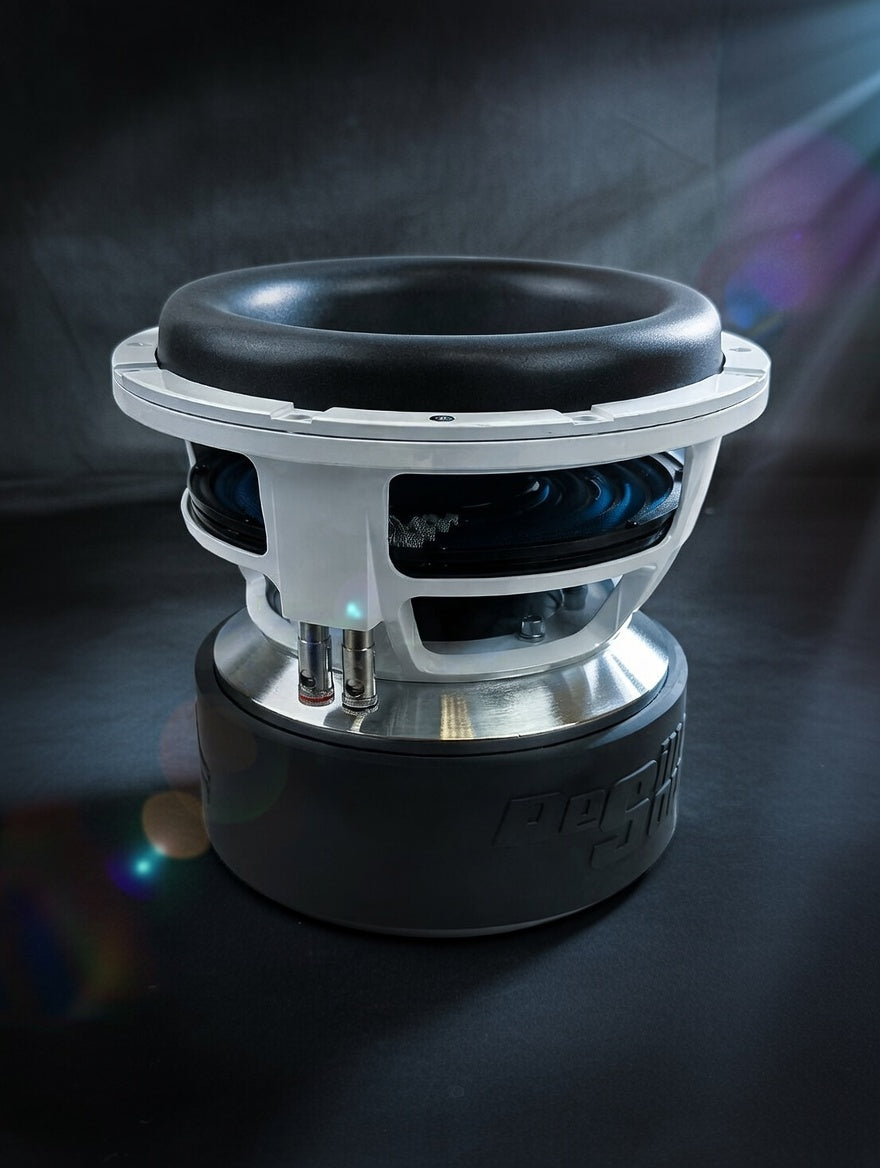

Resilient Sounds Gold 10 V2 10" Subwoofer – 1500W RMS

The Resilient Sounds Gold 10 V2 is a 10-inch car audio subwoofer rated at 1,500 watts RMS, with 31 mm Xmax, a vented triple-stack motor and a cast aluminum frame. Choose dual 2-ohm or dual 4-ohm voice coils to suit your amplifier and wiring configuration.

Features & specifications

• Size: 10 inches
• Power handling: 1,500 watts RMS
• Voice coil: 3-inch, 4-layer design; 25% longer than the V1
• Impedance options: dual 2 ohm (D2) or dual 4 ohm (D4)
• Xmax: 31 mm

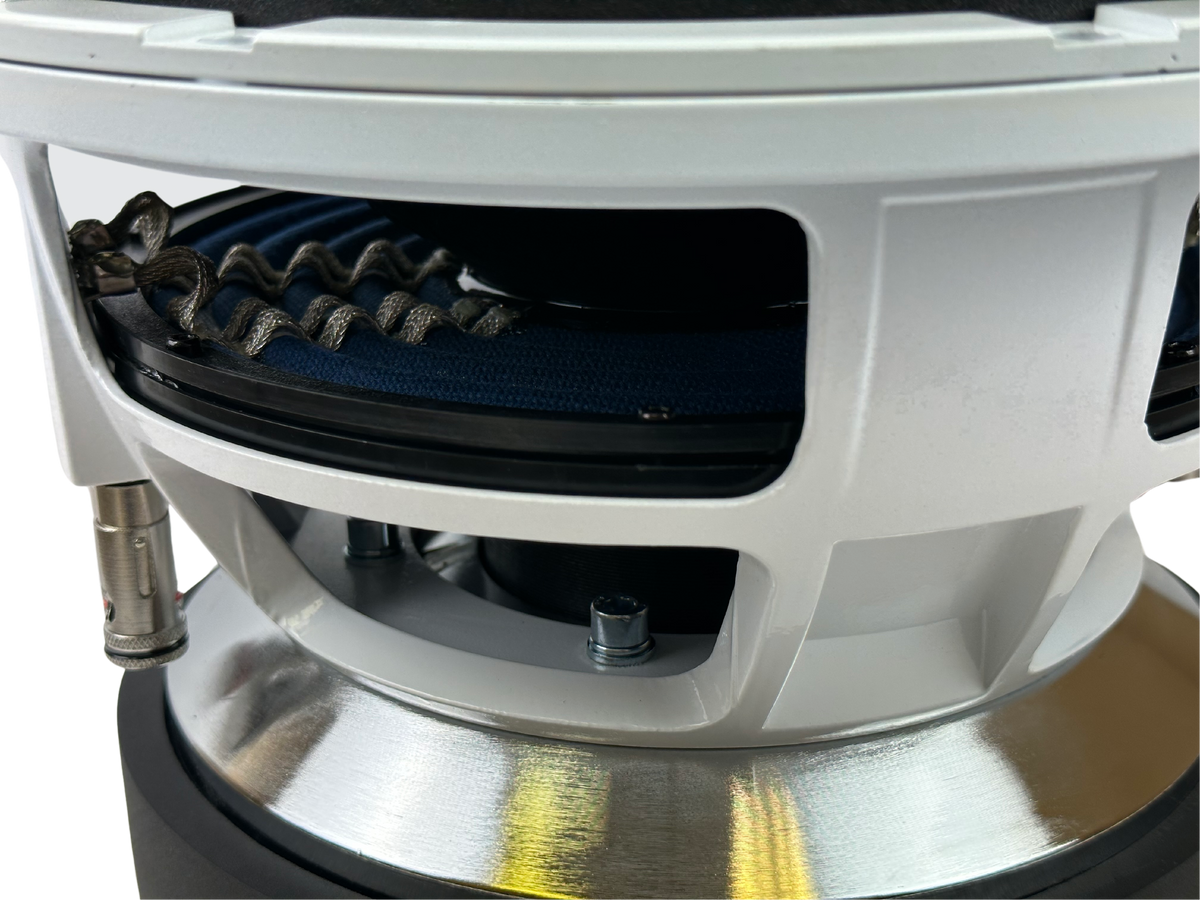

• Spider: 8.5-inch spider pack with dual sewn leads
• High-roll tooled surround

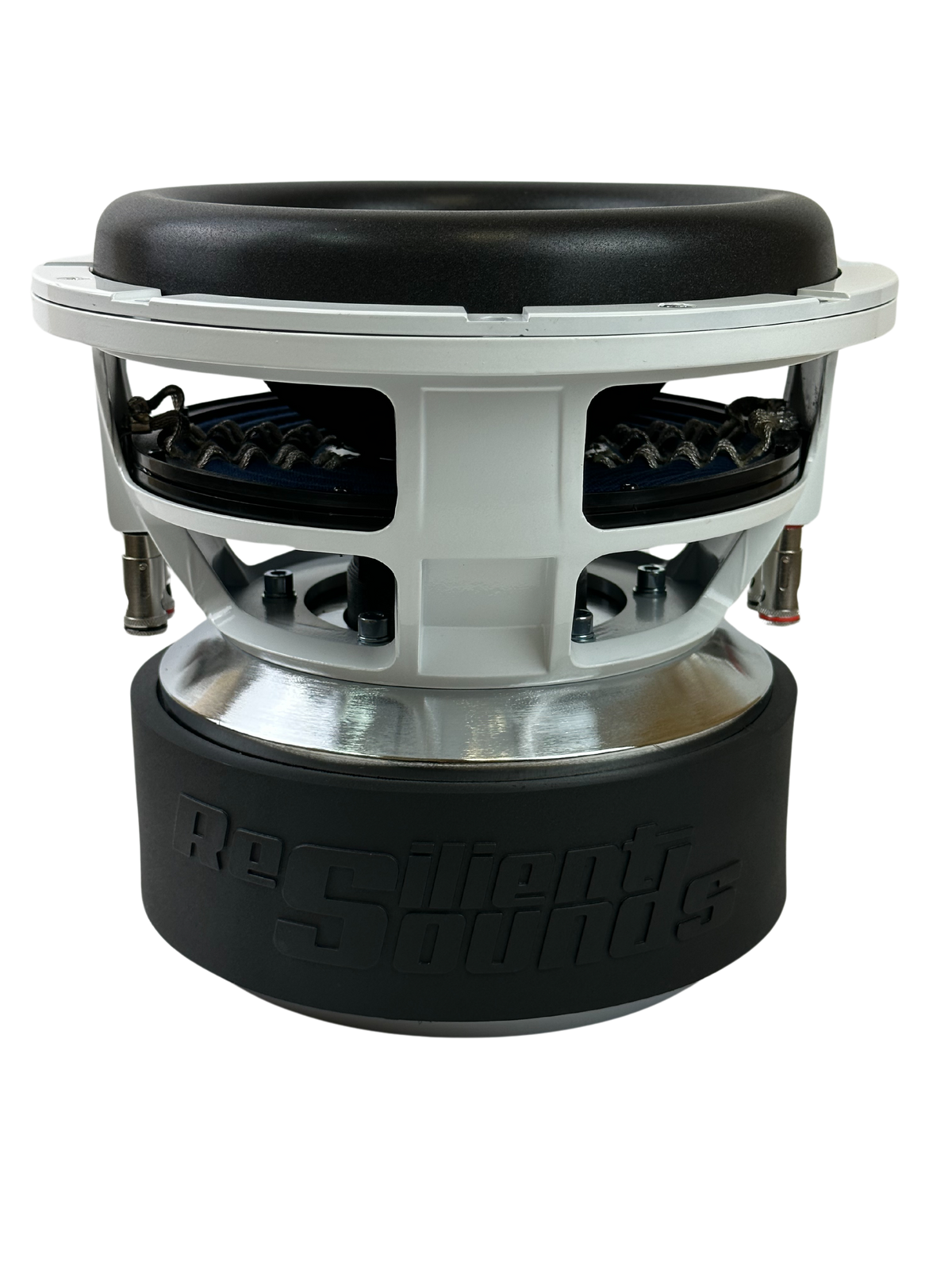

• Motor: vented, triple-stack 220 mm motor; 15% larger than the V1

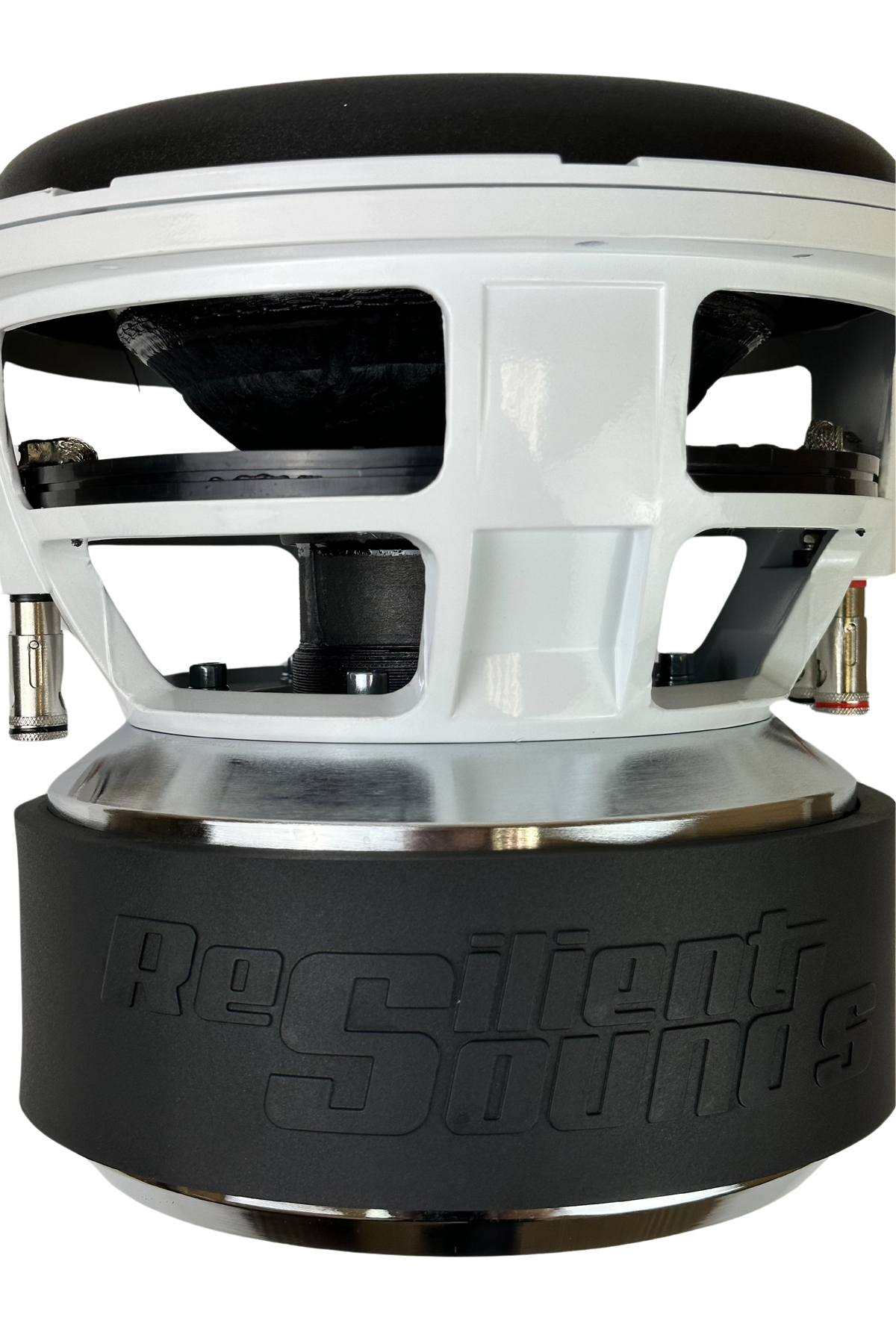

• Aluminum shorting ring, cast aluminum frame and aluminum gasket
• 4-gauge push terminals

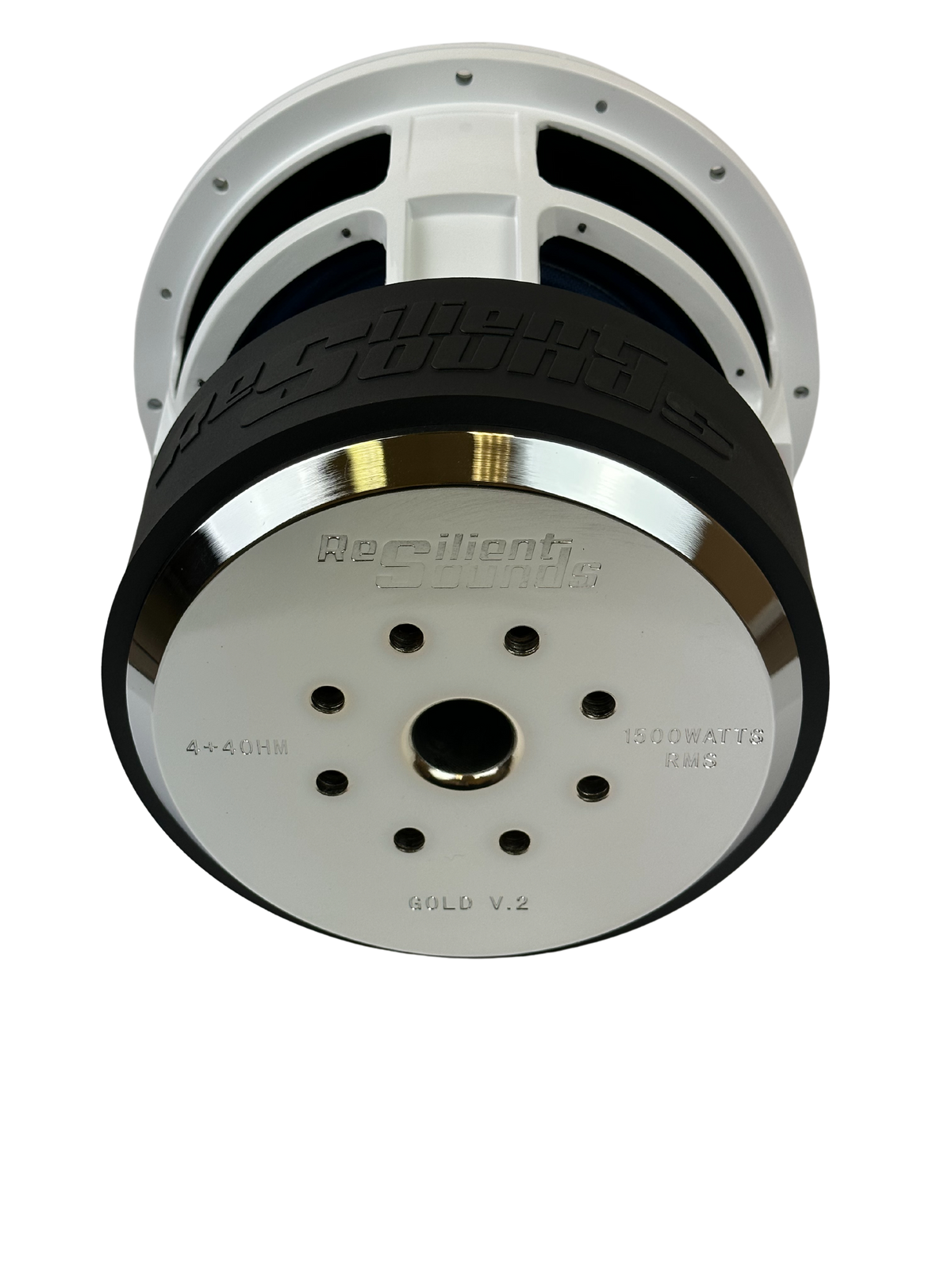

• Engraved bottom plate and molded motor boot

Recommended enclosure

Dimensions

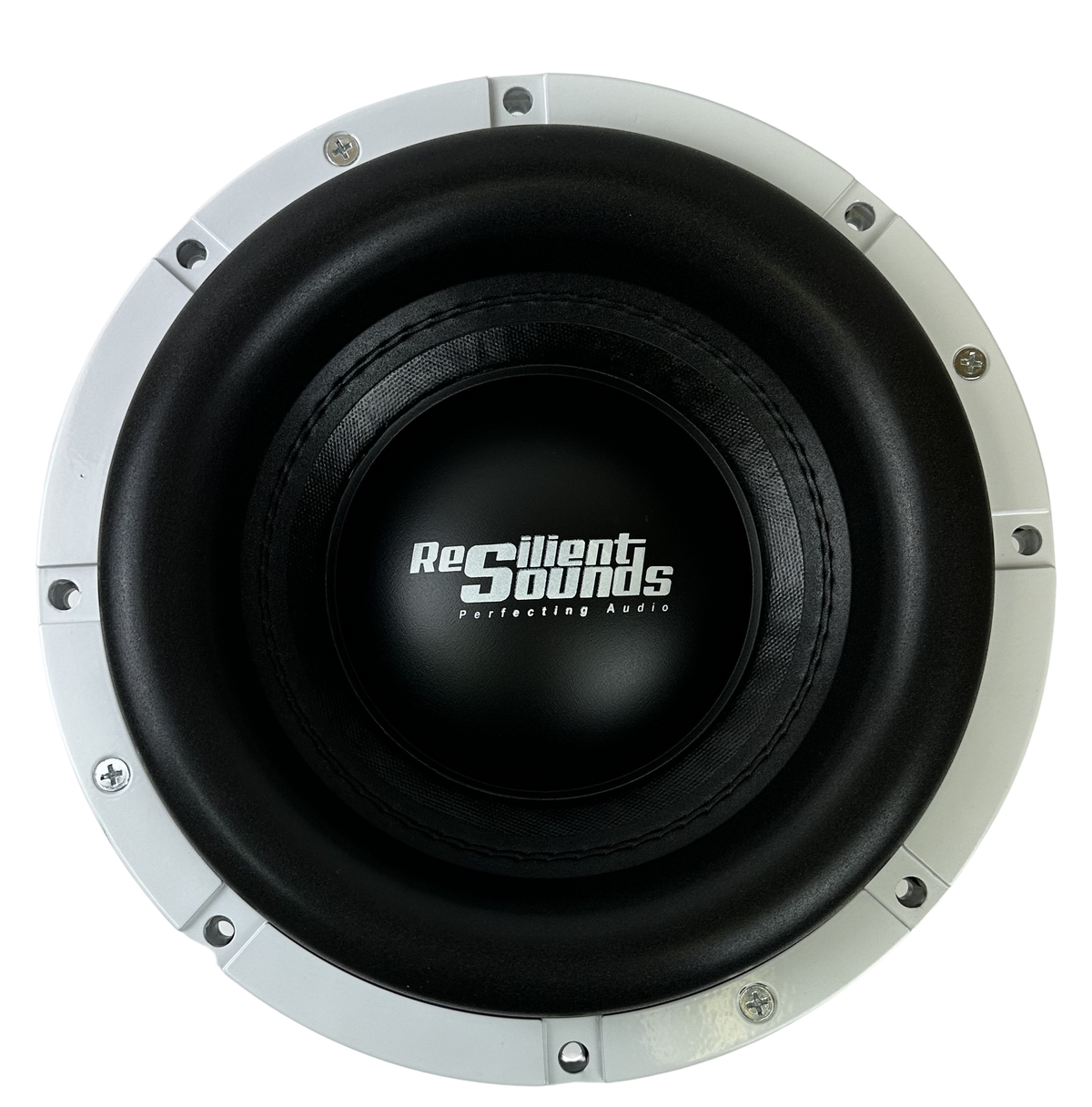

Mounting & trim ring

Resilient Sounds recommends hex-head mounting screws without a flared head to help prevent cracking the trim ring. The screw photo in the gallery shows the recommended head style. The trim ring should only be removed for reconing; removal may void the manufacturer warranty. Hand-tighten trim-ring screws when reinstalling.

Sold individually. Select your desired voice-coil impedance before ordering. Enclosure specifications and dimensions are supplied by the manufacturer.
