ION Compact Full Range 1 Channel Amplifier 1200 Watts RMS @ 1-Ohm

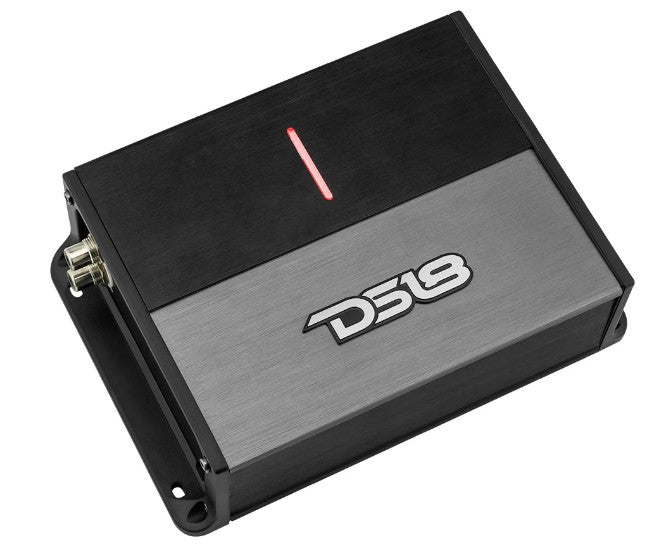

DS18 ION1200.1D Micro Digital 1-Channel Full Range Class D Amplifier

Key Features

• High Power Output – Delivers 1200W at 1  Ohm, 800W at 2 Ohm, and 400W at 4 Ohm for strong, clean audio performance.

• Full Range Capability – Wide frequency response of 10Hz – 20KHz, allowing the amplifier to power subwoofers, midrange, or high-frequency speakers.

• Ultra-Compact Micro Design – Small size and surface mount technology make it easy to install almost anywhere in your vehicle.

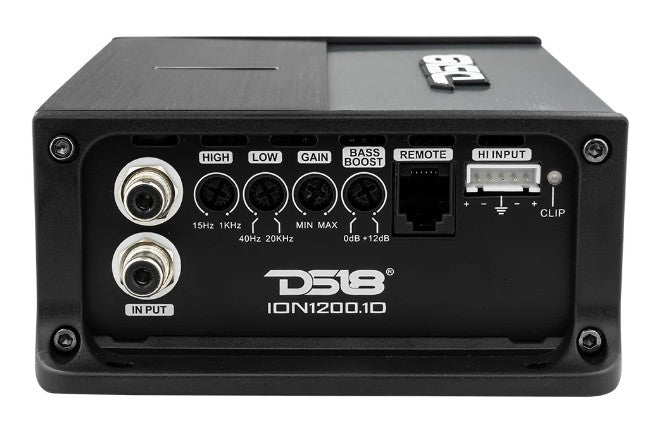

• Precision Sound Tuning – Variable full-range crossover filters allow detailed control over your system’s sound.

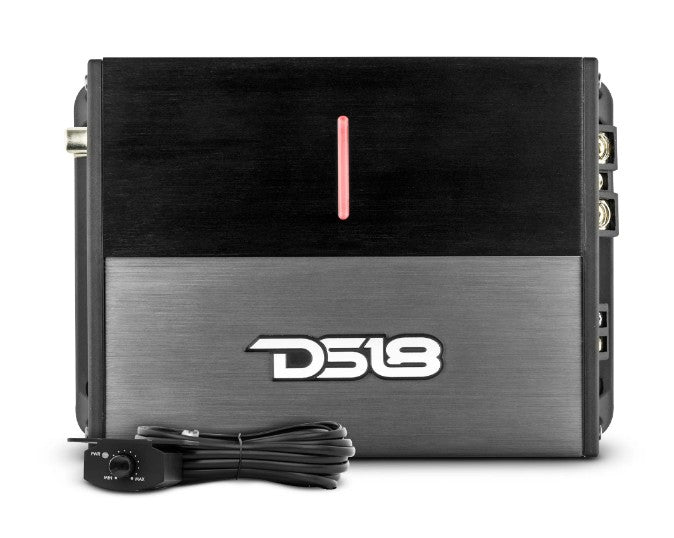

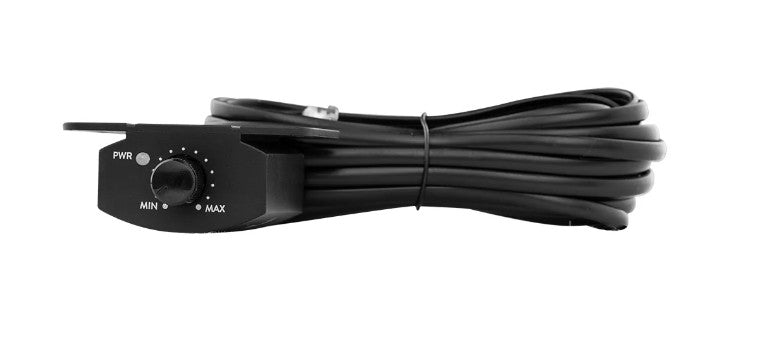

• Remote Level Control – Convenient remote knob lets you adjust sound levels quickly.

• Reliable Protection System – Includes short circuit, thermal, DC offset, and high/low voltage protection for safe and stable operation.

Product Description

The DS18 ION1200.1D Micro Digital Amplifier delivers powerful performance in a compact and efficient design. This 1-channel full-range Class D amplifier is built for versatility, allowing it to power subwoofers, mids, or highs depending on your system configuration.

Equipped with Hi-Level inputs and premium Tiffany RCA connections, the ION1200.1D integrates seamlessly with both factory and aftermarket car audio systems. Its miniature design and surface mount component technology make it ideal for tight installation spaces without sacrificing performance.

With a frequency response of 10Hz – 20KHz and adjustable full-range crossover filters, you can precisely tune your system for optimal sound quality. The included remote level control knob allows quick adjustments to match your listening preferences.

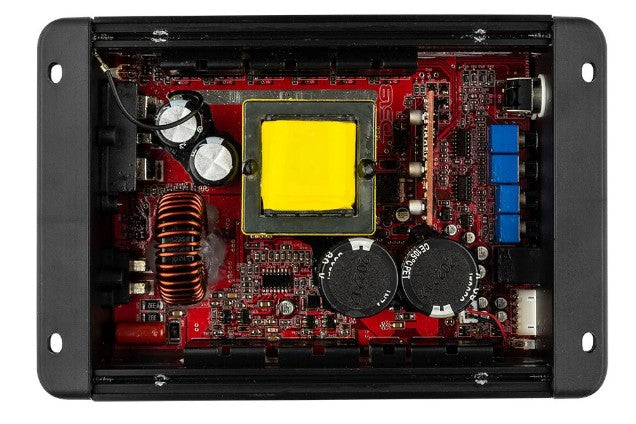

Built for durability, the amplifier features a protective PCB coating to prevent moisture corrosion and reinforced components to withstand vibration. Advanced protection circuits and LED indicators for power, protection, and clipping ensure reliable performance in any audio setup.

Power Ratings

• 1200W @ 1 Ohm

• 800W @ 2 Ohm

• 400W @ 4 Ohm

Audio Performance

• Frequency Response: 10Hz – 20KHz

• Channels: 1

• Amplifier Class: Class D

Protection Features

• Short Circuit Protection

• Thermal Protection

• DC Offset Protection

• High / Low Voltage Protection

• Power / Protection / Clipping LED Indicators
