DS18 PRO-TW920 2.7" Neodymium Super Bullet Tweeter – Titanium, 4 Ohm
DS18 PRO-TW920 2.7" Neodymium Super Bullet Tweeter – Titanium, 4 Ohm is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout

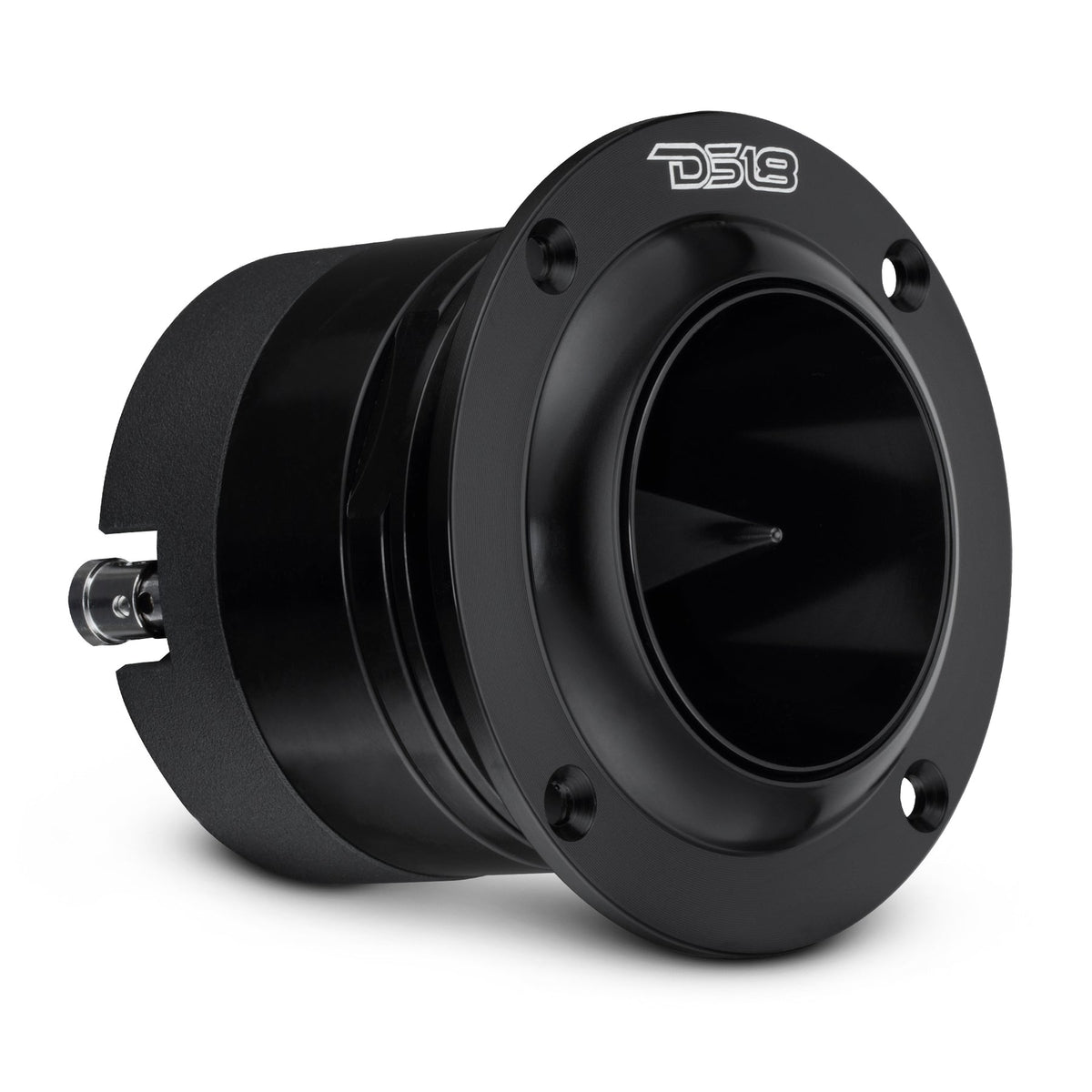

The DS18 PRO-TW920 is a 4-ohm high-compression super bullet tweeter with a neodymium motor, titanium diaphragm, and screw-on aluminum mounting ring. Its 1.4-inch voice coil and adjustable mounting depth support custom speaker panels and pods.
Specifications
| SKU | PRO-TW920 |
|---|---|
| Type | 2.7" high-compression super bullet tweeter |
| Impedance | 4 ohms |
| AES power handling | 80 watts |
| Program power handling | 160 watts |
| Peak power handling | 320 watts |
| Sensitivity (1W/1m) | 106 dB |
| Frequency response | 700 Hz–20 kHz |
| Recommended high-pass crossover | 2 kHz |
| Voice coil | 1.4" / 35.5 mm |
| Voice-coil former / winding | KSV / CCAR |
| Diaphragm | Titanium |
| Magnet | Neodymium |
| Body / bullet | Anodized-black aluminum / CNC aluminum |
| Included bass blocker | 4.7 µF / 50V |
| Overall diameter | 69.2 mm |
| Overall depth | 76.6 mm |
| Baffle cutout | 51.8 mm |
| Adjustable mounting depth | 52–70 mm |
| Replacement diaphragm | PRO-TW920VC (sold separately) |
Included
One PRO-TW920 tweeter, screw mounting ring, two rubber gasket rings (thin and thick), and a 4.7 µF / 50V bass blocker.

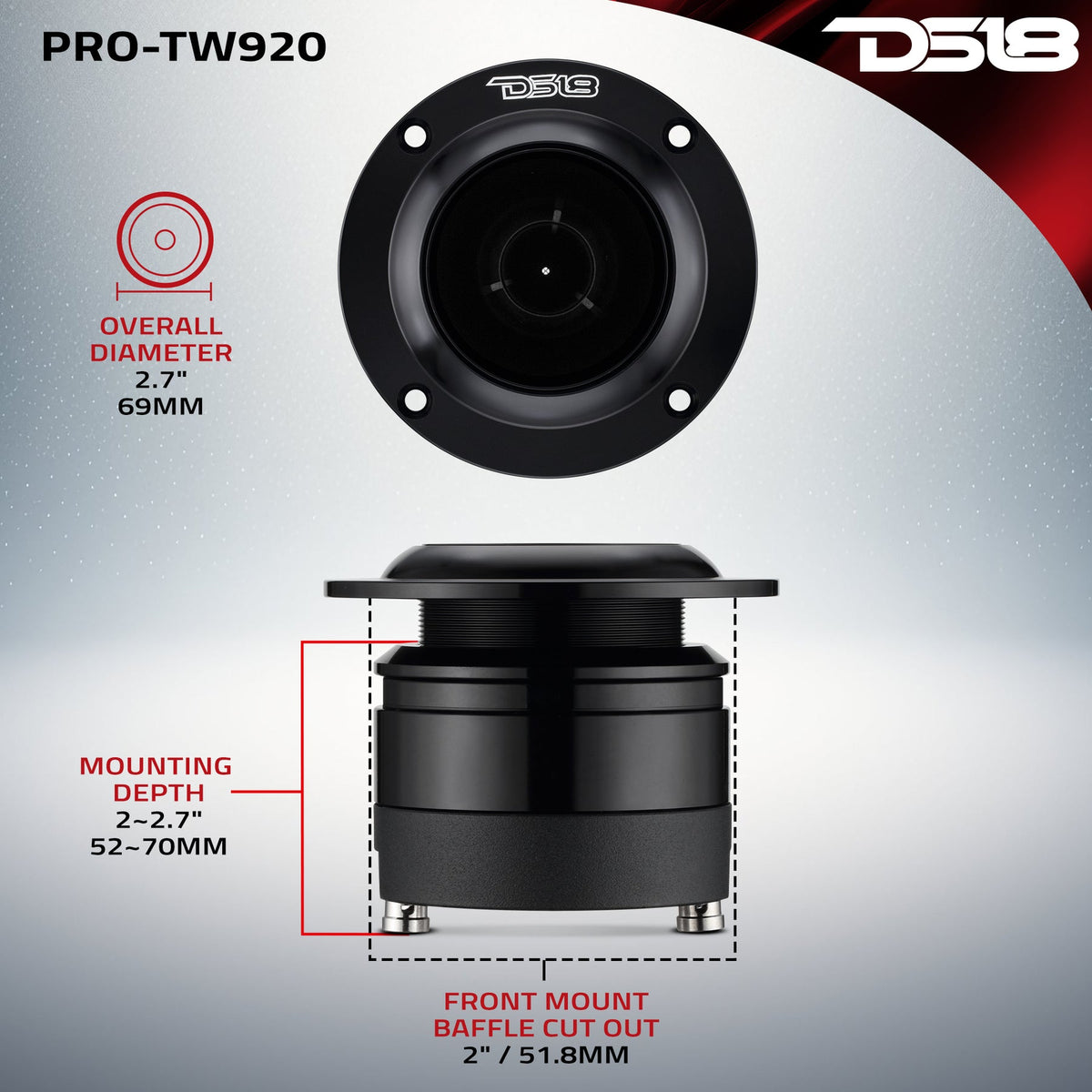

Sold individually. Use the recommended 2 kHz high-pass crossover and check the dimensional drawing before installation.
