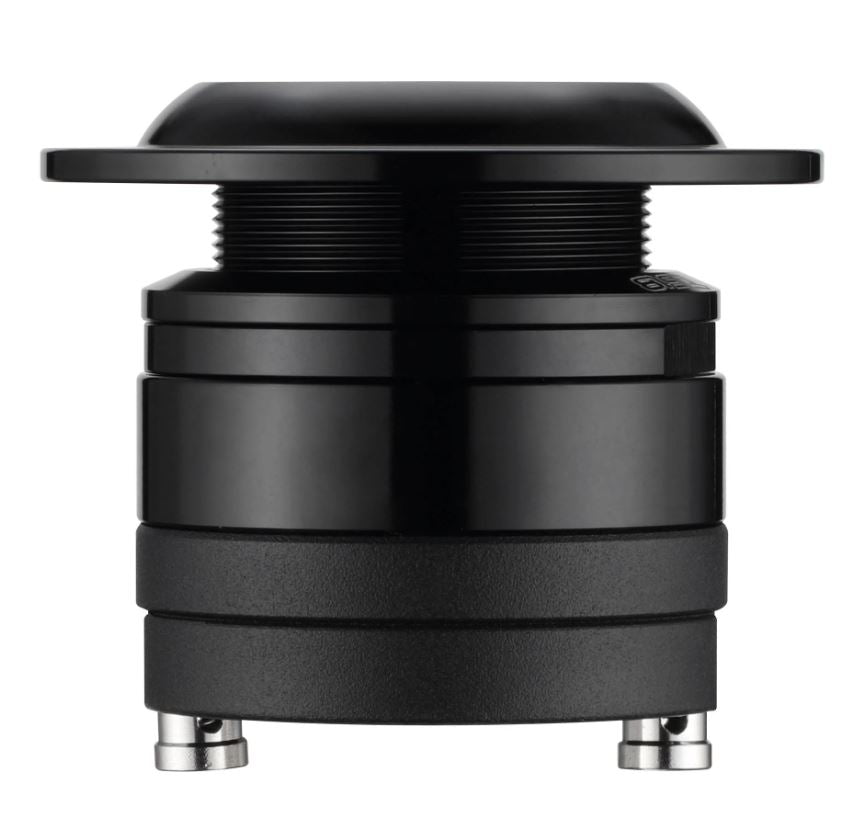

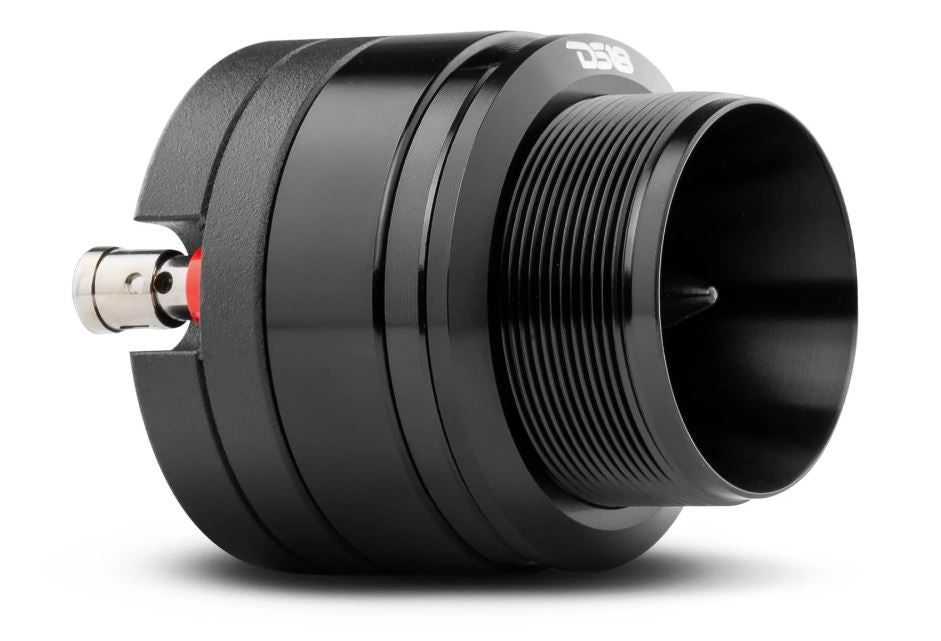

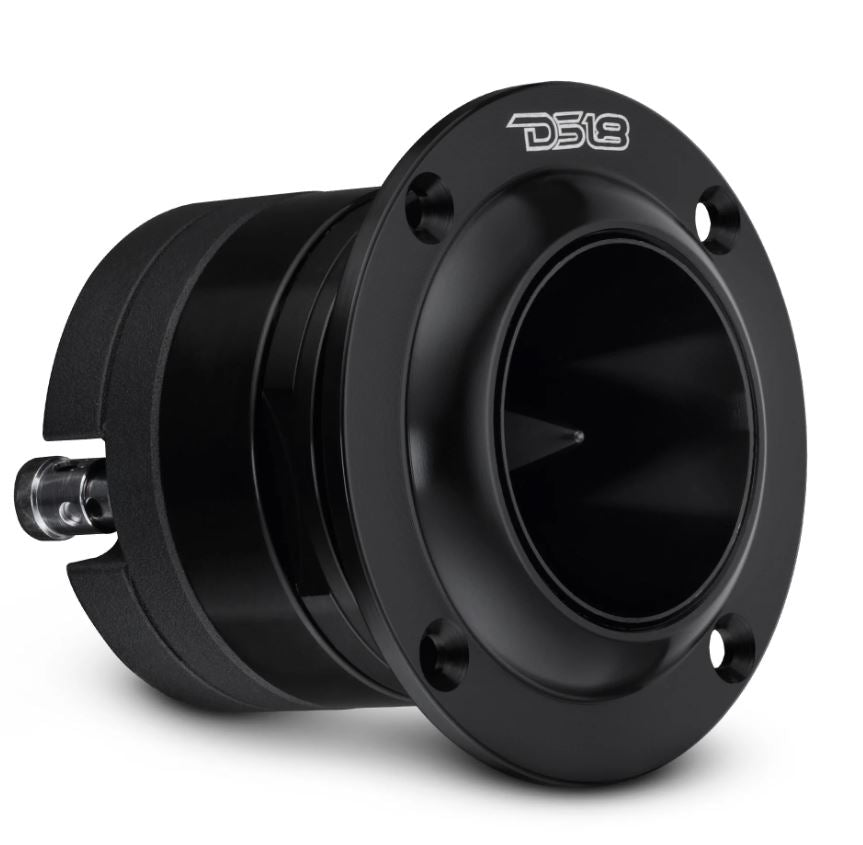

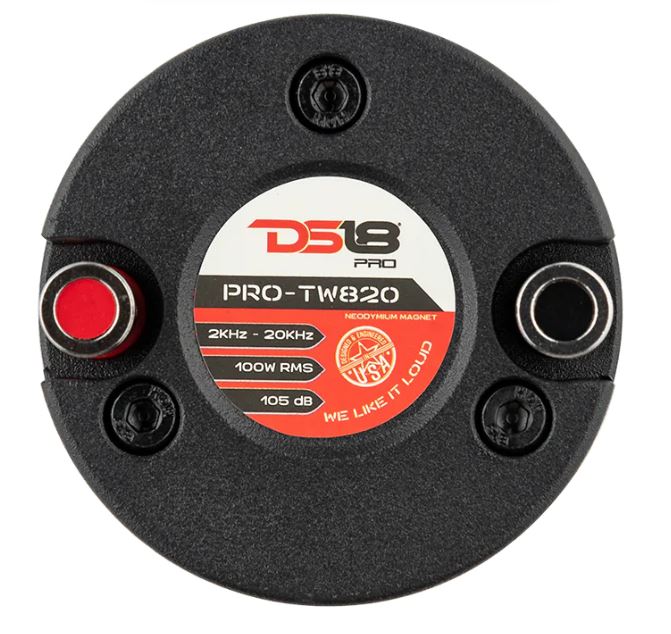

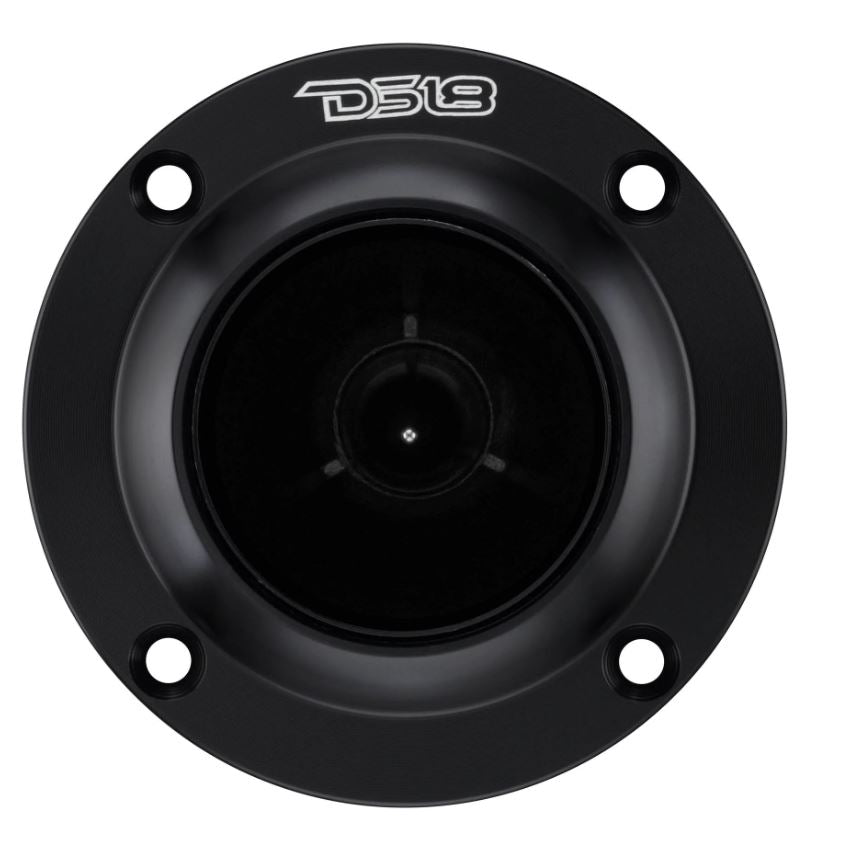

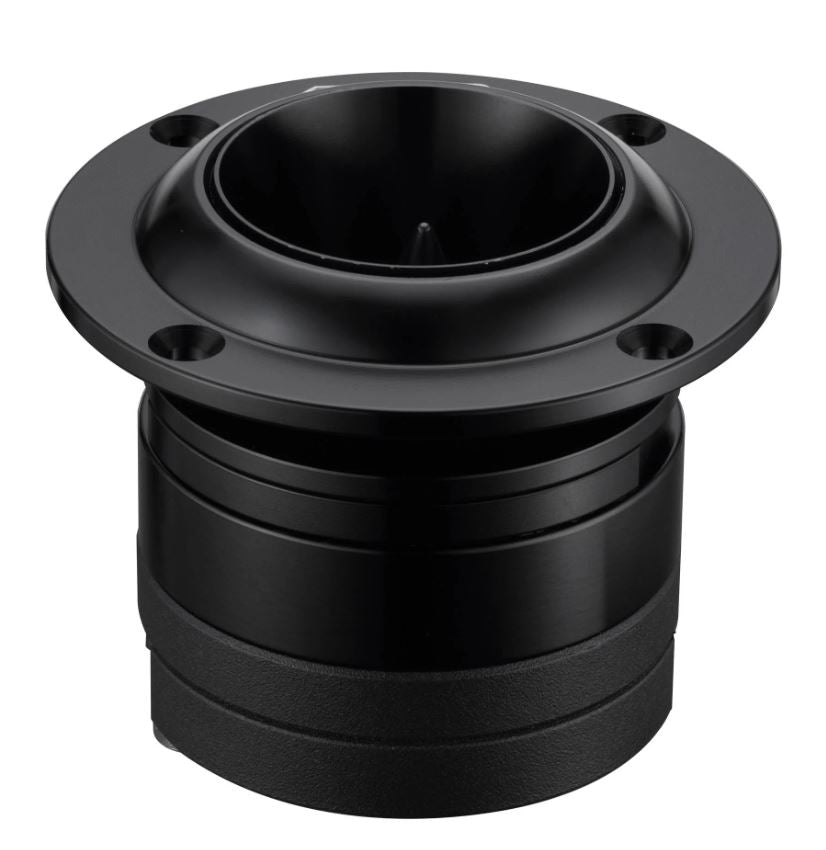

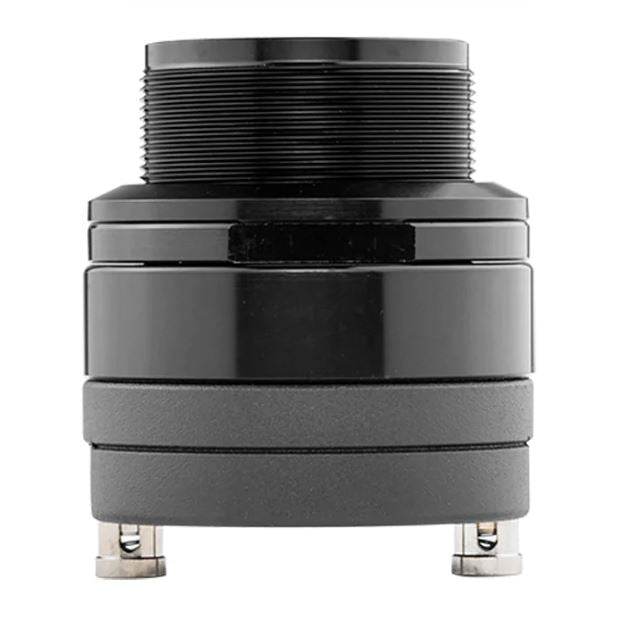

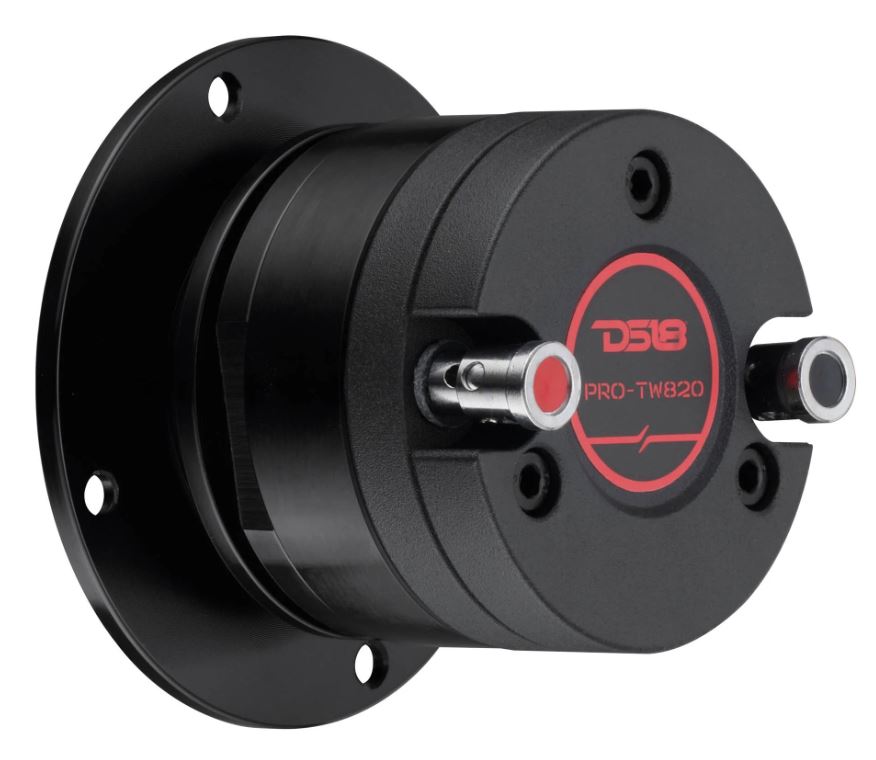

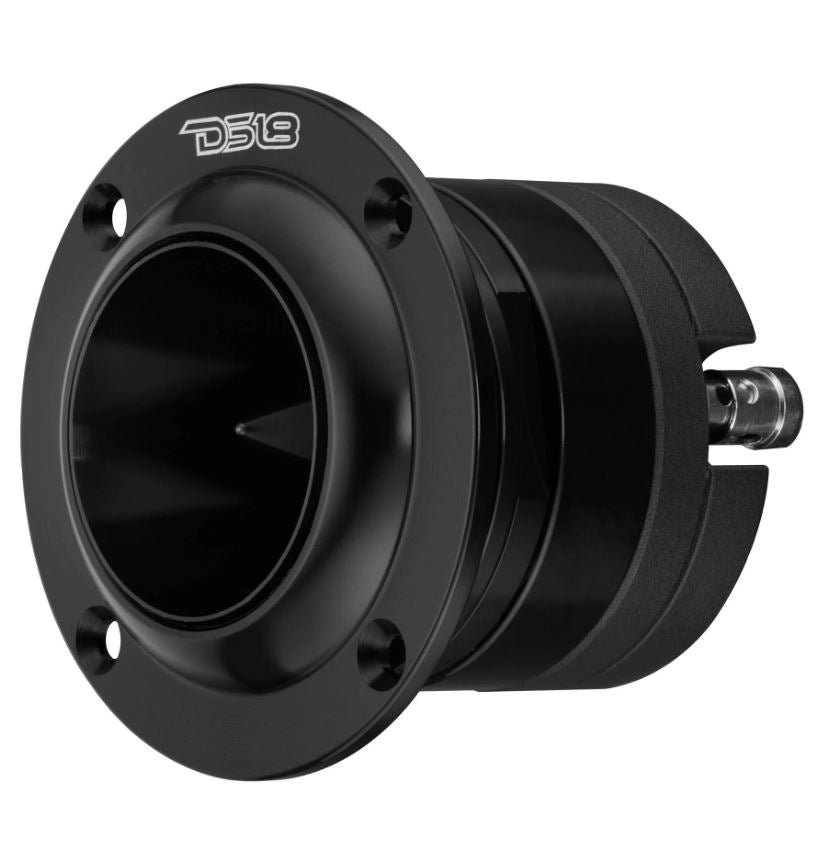

DS18 PRO-TW820 2.3” Super Bullet Tweeter 4 Ohms

DS18 PRO-TW820 2.3” Super Bullet Tweeter — Neodymium High Compression

The DS18 PRO-TW820 is designed for high-output systems that demand aggressive, clear high-frequency response. Built for pro audio and SPL-style builds, this high-compression tweeter delivers strong projection with minimal distortion, making it ideal for loud setups where clarity is critical.

Perfect for demo vehicles, custom door builds, and systems that require strong high-frequency presence.

Built for Sharp Projection

Featuring a lightweight neodymium motor and CNC aluminum bullet housing, the PRO-TW820 is engineered for efficient output and precise sound dispersion. Its high sensitivity allows it to play extremely loud while maintaining clarity across the upper frequency range.

The adjustable mounting depth and included gaskets make it easy to integrate into custom panels, doors, or pods.

Key Features

• 2.3” high-compression super bullet tweeter

• Lightweight neodymium magnet motor

• CNC aluminum bullet housing

• High sensitivity for strong output

• Adjustable mounting depth for flexible installation

• Serviceable diaphragm design

• Includes bass blocker capacitor

• Designed for pro audio and SPL systems

Power Handling

AES Power: 50 Watts

Program Power: 100 Watts

Peak Power: 200 Watts

Specifications

Sensitivity: 105 dB

Frequency Response: 700Hz – 20kHz

Recommended Crossover: High-pass at 3kHz

Voice Coil Size: 1” Aluminum

Magnet Type: Neodymium

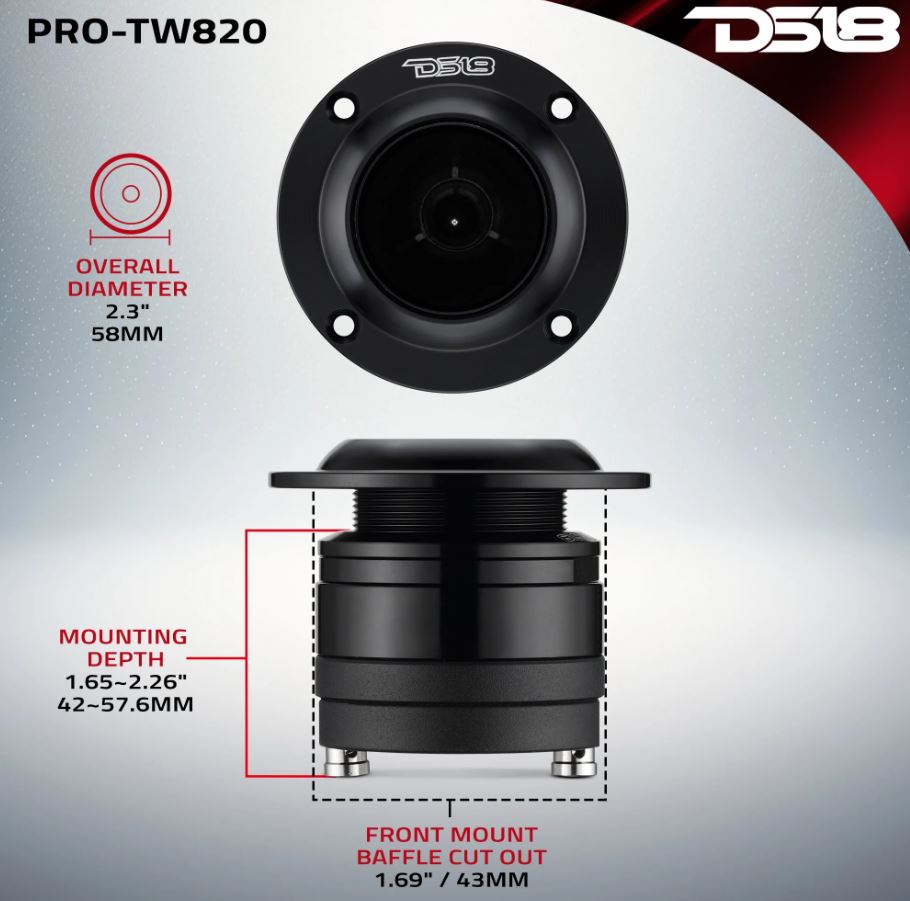

Mounting Depth: Adjustable 1.65” – 2.26”

What’s Included

• (1) PRO-TW820 Tweeter

• Mounting ring

• Rubber gaskets (thin + thick)

• 3.3μF bass blocker

Ideal For

• Pro audio door builds

• SPL systems

• High output daily drivers

• Demo vehicles

• Custom pillar or pod installs

Installation Notes

Proper crossover settings and tuning are recommended to protect the tweeter and achieve optimal clarity and performance.

Serious Innovations Build Insight

Great choice for high-output door builds where strong projection is needed to keep up with powerful midrange and mid-bass drivers.
