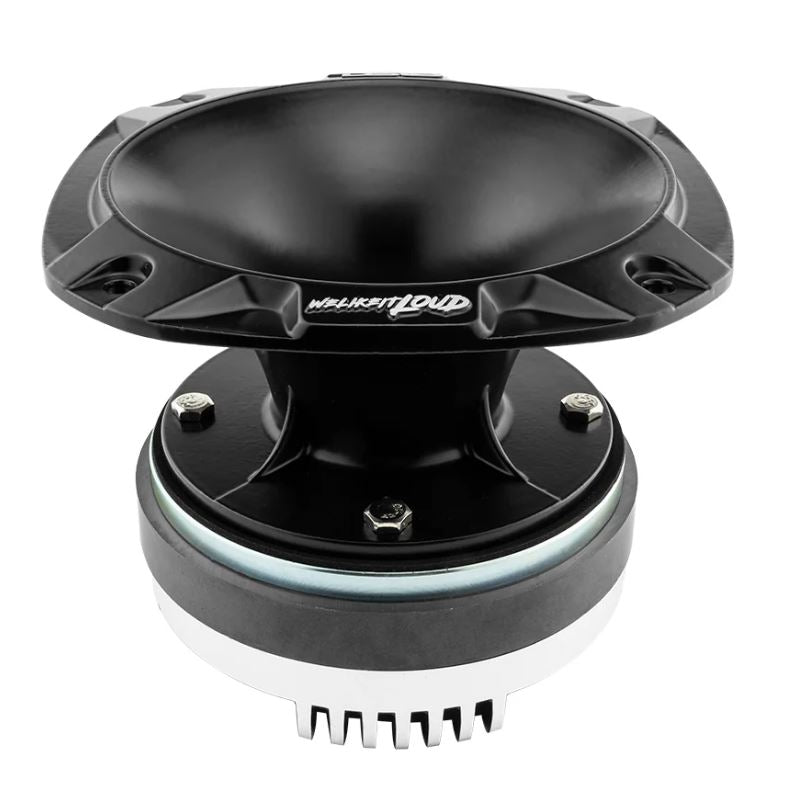

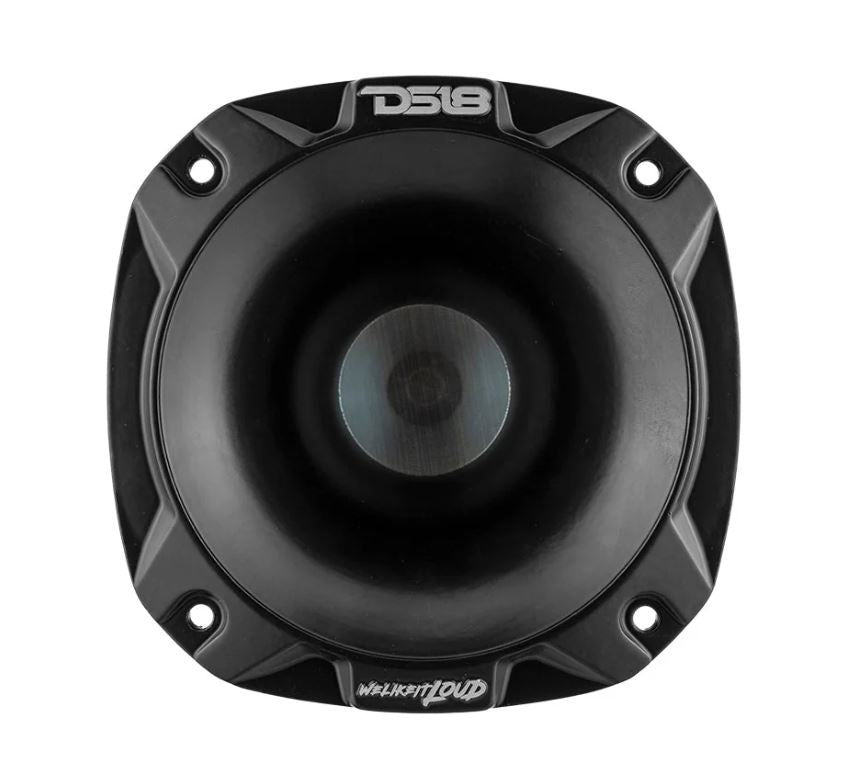

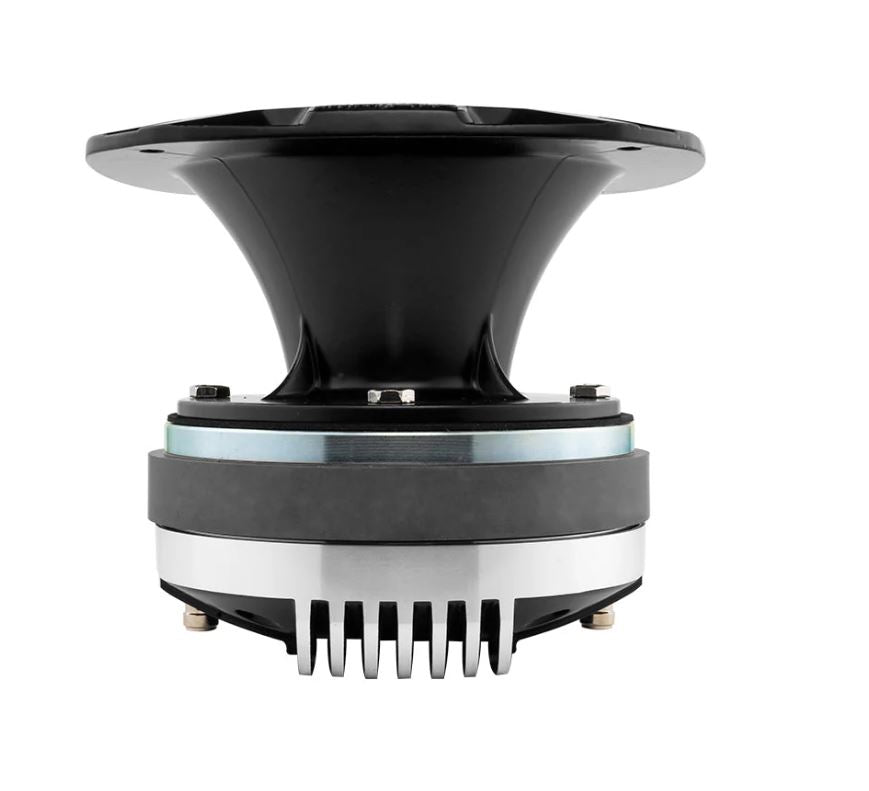

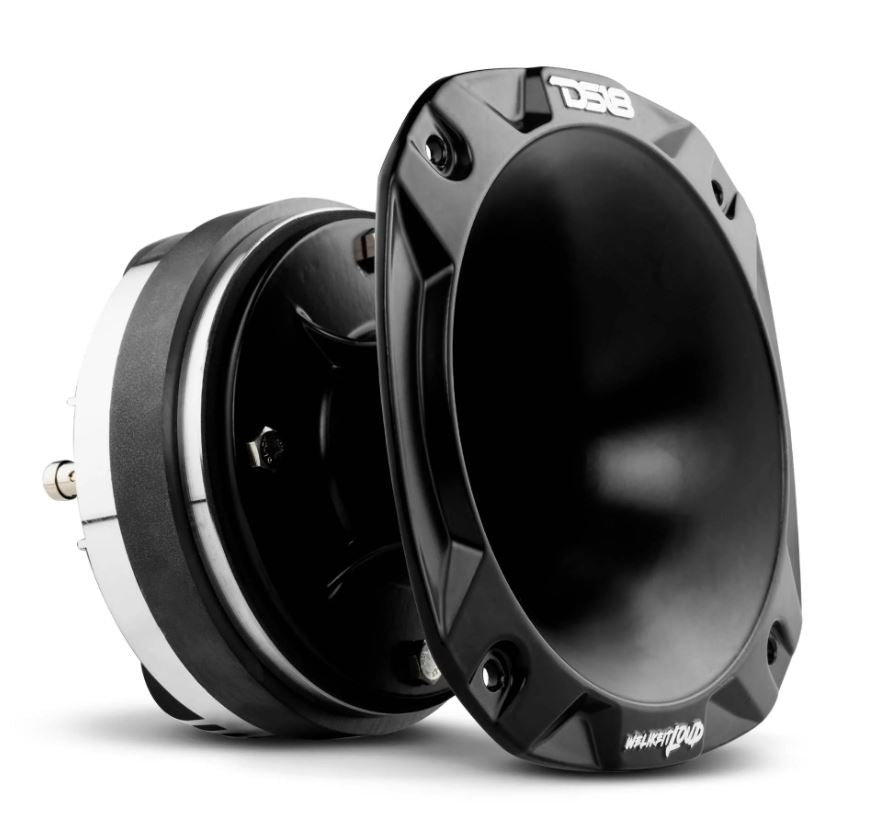

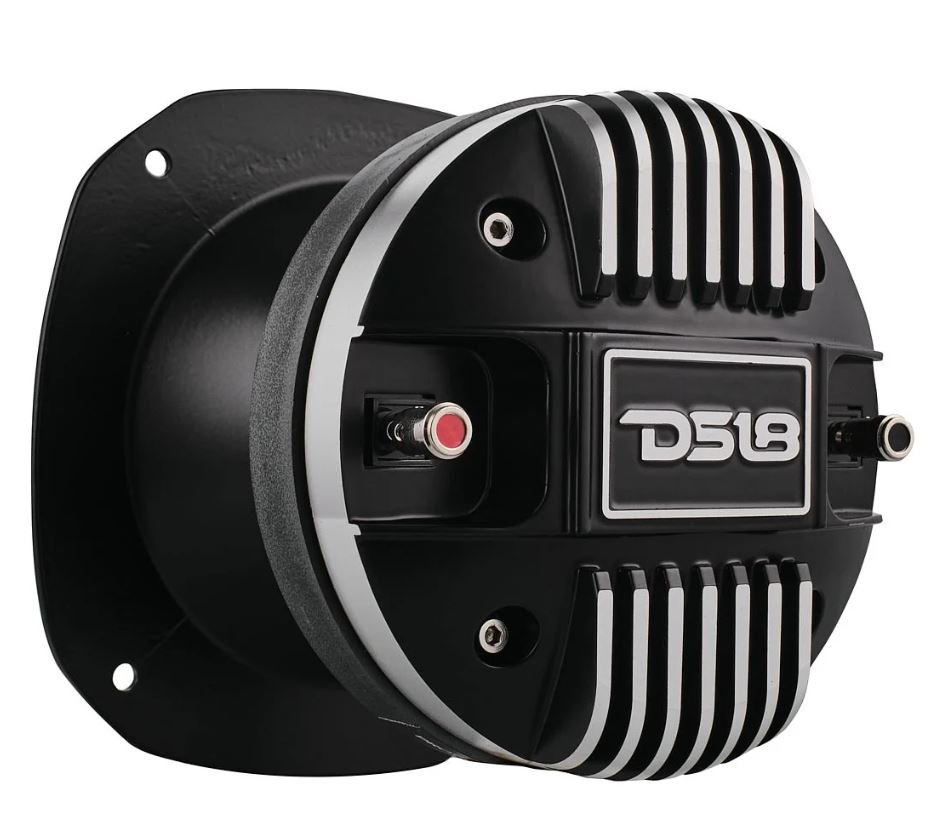

DS18 PRO-DKH1S 2" Driver Short Horn

DS18 PRO-DKH1S 2” Compression Driver with Short Horn — 320W RMS High Output

The DS18 PRO-DKH1S compression driver and horn kit is designed for high-output systems that require strong projection, clarity, and durability. Combining a 2” bolt-on compression driver with a short horn, this setup delivers powerful mid and high frequencies with excellent efficiency.

Ideal for pro audio style builds, demo vehicles, and systems focused on strong vocal presence and projection.

Built for Projection & Control

Featuring a titanium voice coil and diaphragm, the PRO-DKH1S is engineered to handle high power while maintaining clear, detailed sound. The aluminum short horn improves directional output while allowing flexible installation with minimal mounting depth.

Its bolt-on design makes installation straightforward while ensuring a secure connection for consistent performance.

What’s Included

• (1) PRO-D1 Compression Driver

• (1) Short Horn (PRO-HA series)

Key Features

• 2” bolt-on compression driver with short horn

• Titanium voice coil and diaphragm

• High sensitivity for extreme output

• Aluminum horn for improved projection

• Durable ferrite motor structure

• Compact mounting depth for flexible installs

• Designed for pro audio and high-output systems

Power Handling

RMS Power: 320 Watts
Peak Power: 640 Watts

Specifications

Impedance: 8 Ohm

Sensitivity: ~110–111 dB

Frequency Response: 630Hz – 20kHz

Voice Coil Size: 2.03”

Magnet Type: Ferrite

Ideal For

• Pro audio door builds

• Demo vehicles

• High output vocal systems

• Mid/high frequency reinforcement

• Custom panel or horn setups
