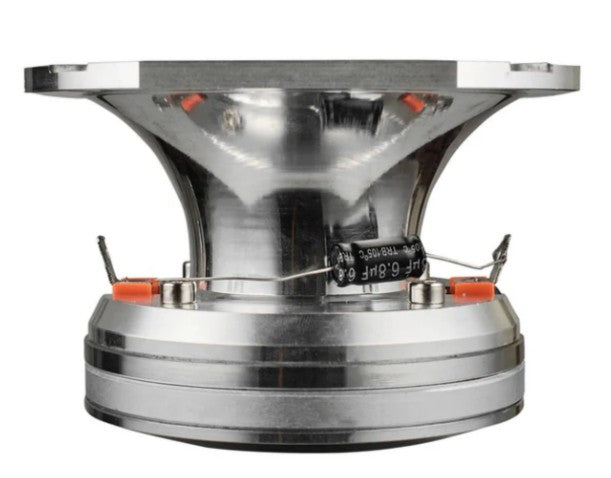

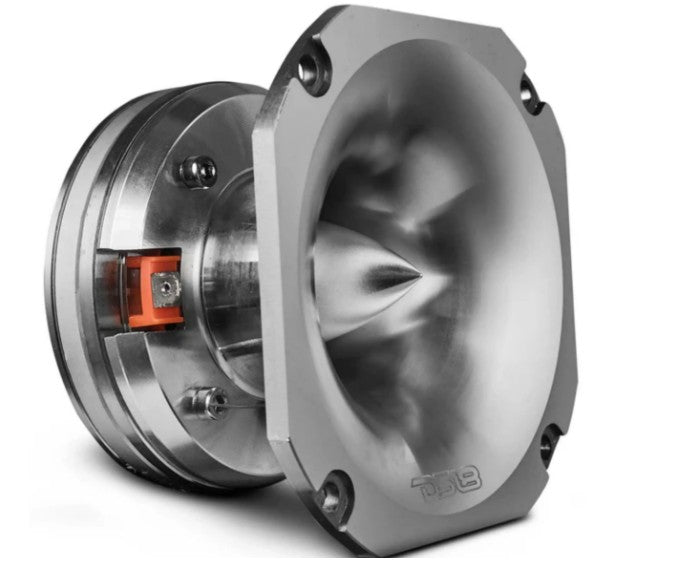

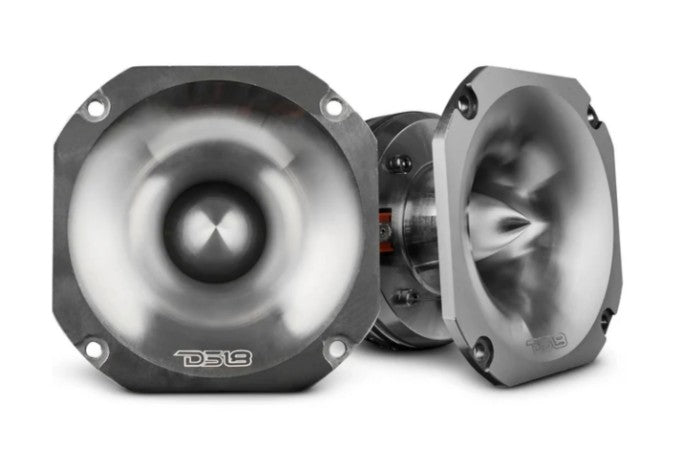

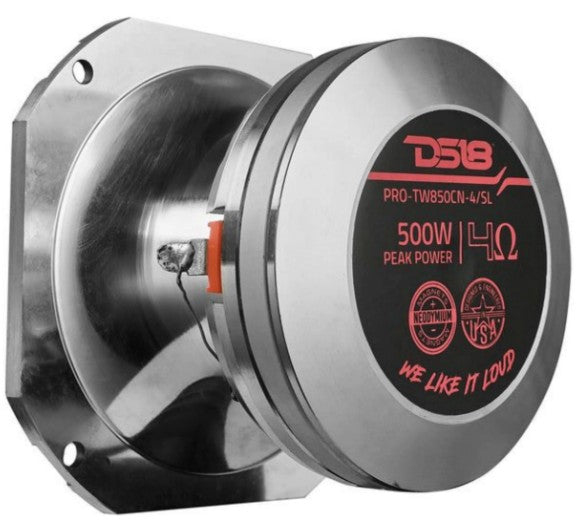

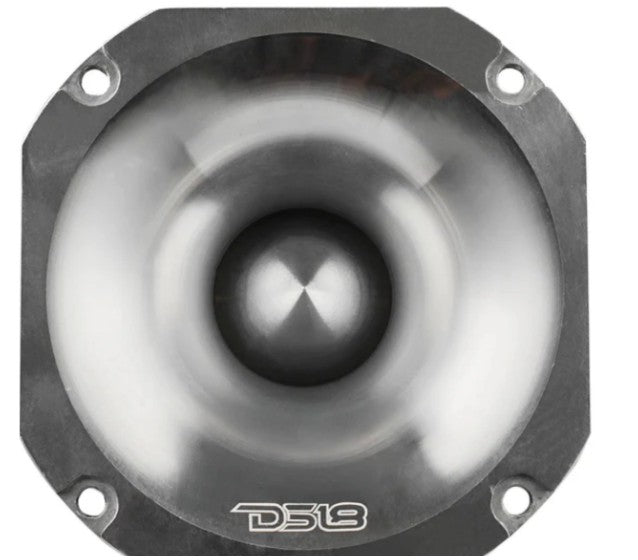

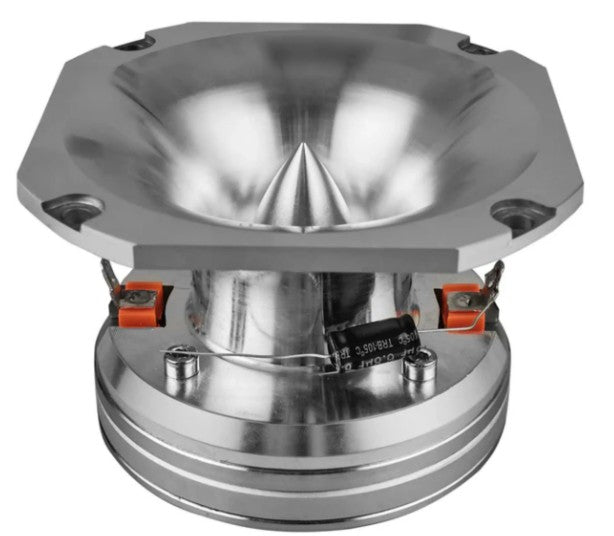

DS18 PRO 4" High Compression Tweeter 1.5" PEI VC 250 Watt RMS 4-Ohm Silver

DS18 PRO-TW850CN-4 4" High Compression Tweeter 250W RMS 4-Ohm (Silver)

Key Features

• High-Performance Sound Quality – Delivers crystal-clear highs with a wide frequency response of 700Hz – 20KHz.

• Powerful Compression Driver – Features a 1.5" PEI voice coil and neodymium magnet for enhanced sensitivity and precision.

• Strong Power Handling – Rated at 170W AES / 250W Program / 500W Peak for dynamic audio performance.

• Premium CNC Aluminum Build – Durable construction with a sleek silver finish for a professional look.

• Compact & Easy Installation – Shallow mounting depth (2.5") allows quick and flexible installation.

• High Sensitivity Output – 111 dB sensitivity ensures loud, clear sound even with lower power input.

Product Description

Take your audio system to the next level with the DS18 PRO-TW850CN-4 High Compression Tweeter, designed for exceptional clarity, detail, and high-frequency performance.

This 4-inch professional tweeter delivers a wide frequency range from 700Hz to 20KHz, producing crisp highs and detailed sound reproduction. Equipped with a 1.5" PEI voice coil and a high-efficiency neodymium magnet, it offers outstanding sensitivity and responsiveness.

Built with a CNC-machined aluminum body, this tweeter not only looks premium but is engineered for long-lasting durability and performance. Its compact size and flush mount design make installation simple across a wide range of car audio systems.

With up to 500W peak power handling, the PRO-TW850CN-4 is perfect for high-output systems that demand clarity and volume without distortion.

What’s Included

• (1) DS18 PRO-TW850CN-4 4" Tweeter (4-Ohm)

Specifications

• Nominal Diameter: 4" (101 mm)

• Impedance: 4 Ohm

• AES Power: 170W

• Program Power: 250W

• Peak Power: 500W

• Sensitivity: 111 dB (1W/1M)

• Frequency Response: 700Hz – 20KHz

• Recommended Crossover: 1KHz High Pass

• Voice Coil: 1.5" (38 mm) PEI

• Voice Coil Former: KSV

• Winding Material: CCAR

• Diaphragm Material: PEI

• Magnet Type: Neodymium

• Magnet Size: 3.4" x 0.25"

• Magnet Weight: 7.4 oz

• Sold As: Single Unit

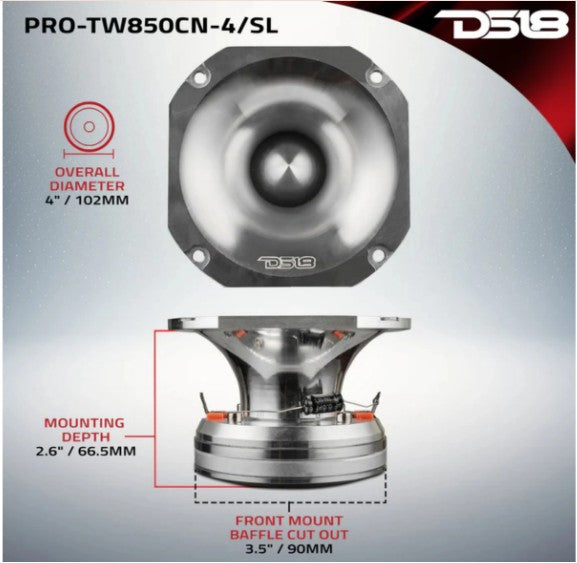

Dimensions

• Overall Diameter: 4" (102 mm)

• Overall Depth: 2.8" (71.5 mm)

• Cutout Diameter: 3.5" (90 mm)

• Mounting Depth: 2.5" (66.5 mm)
