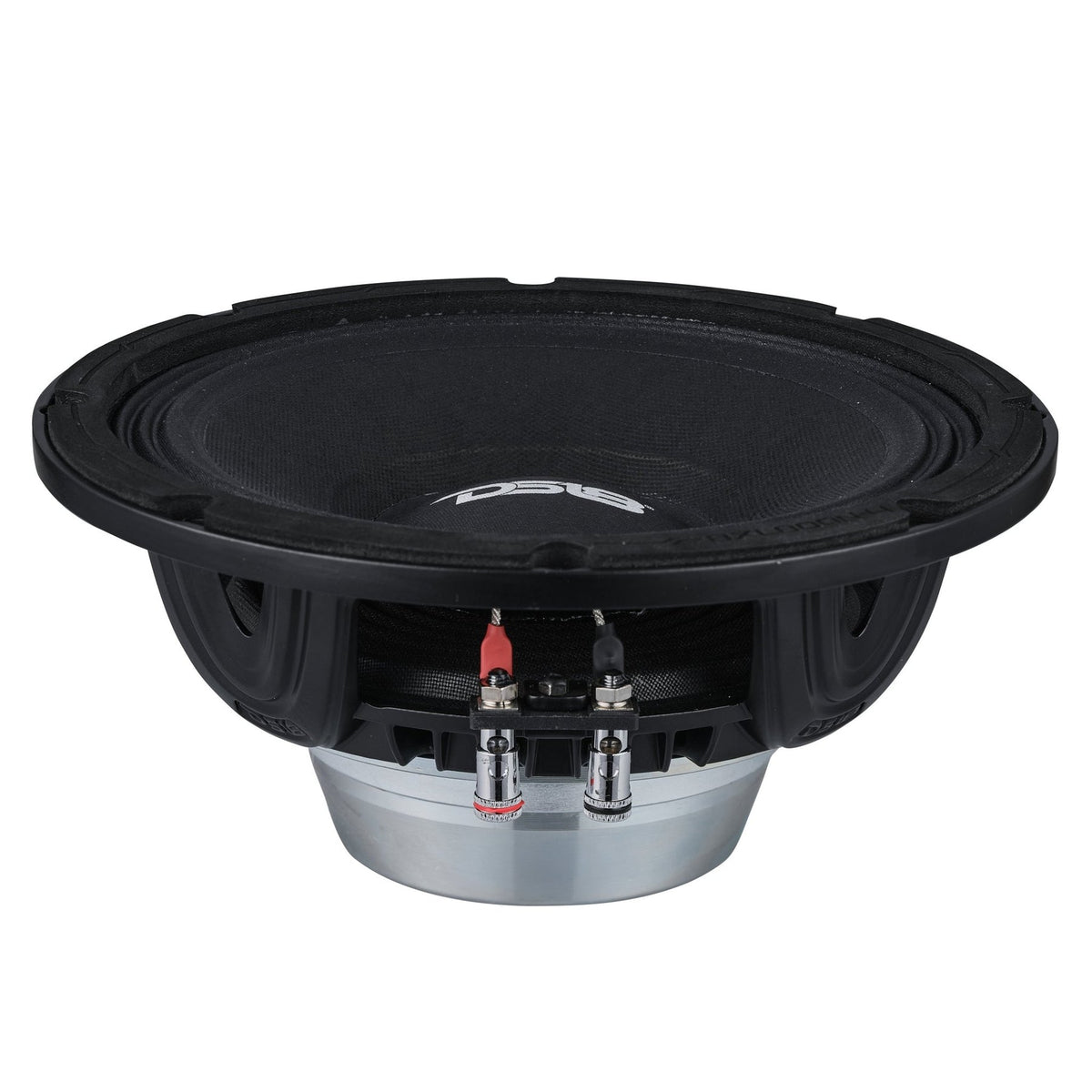

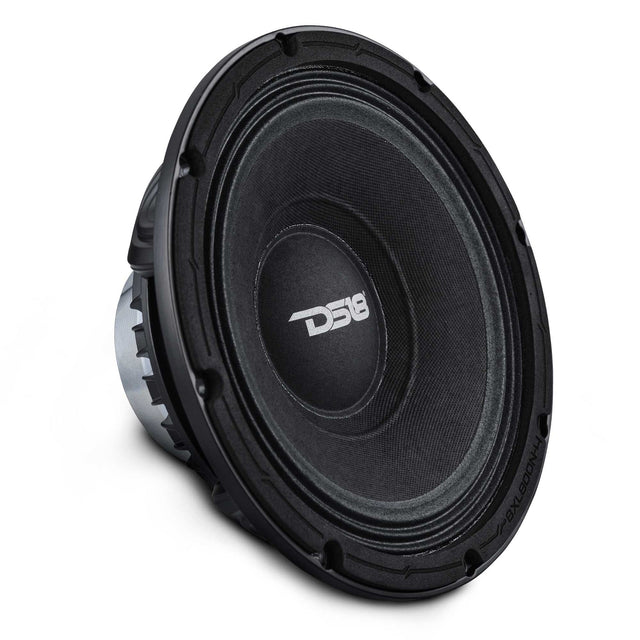

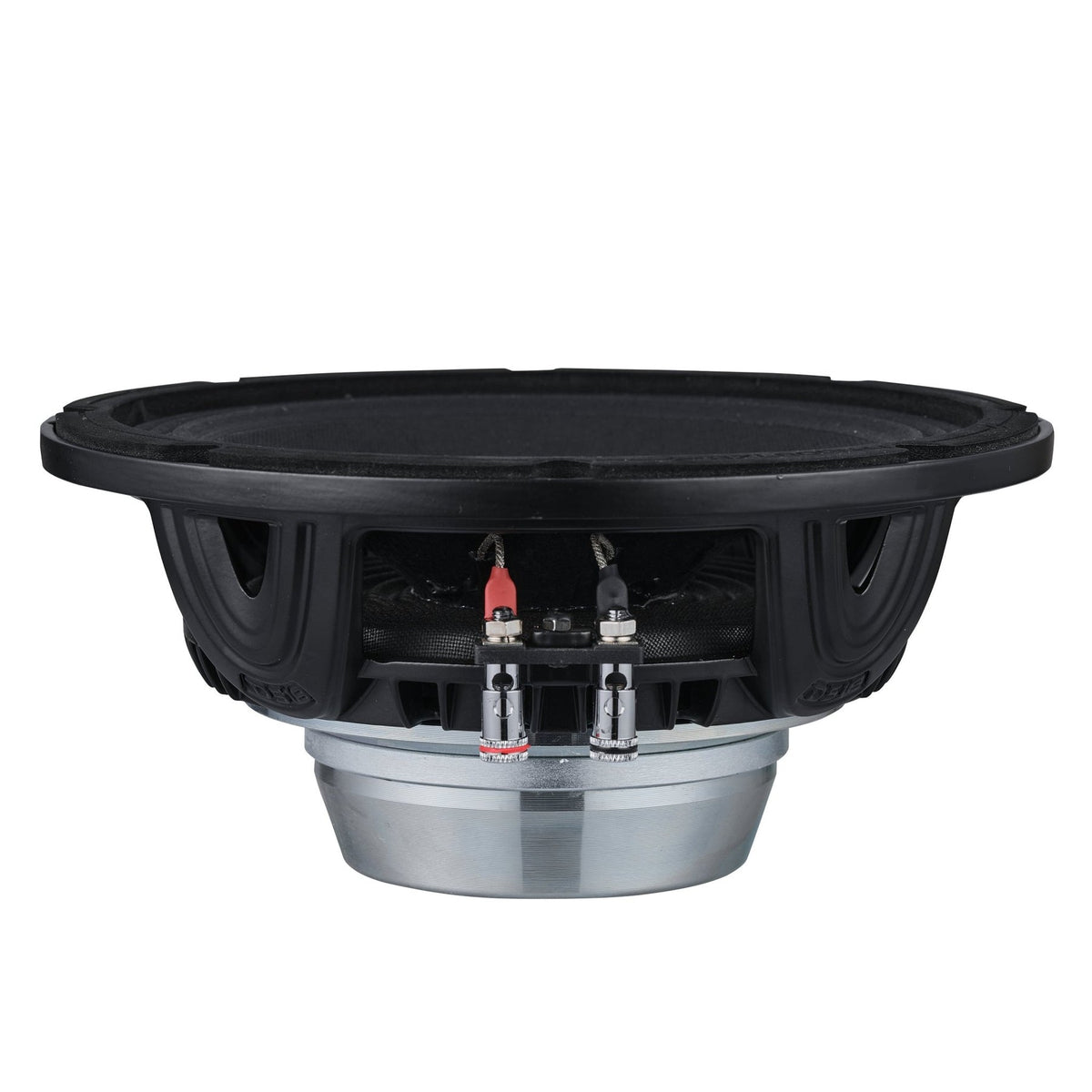

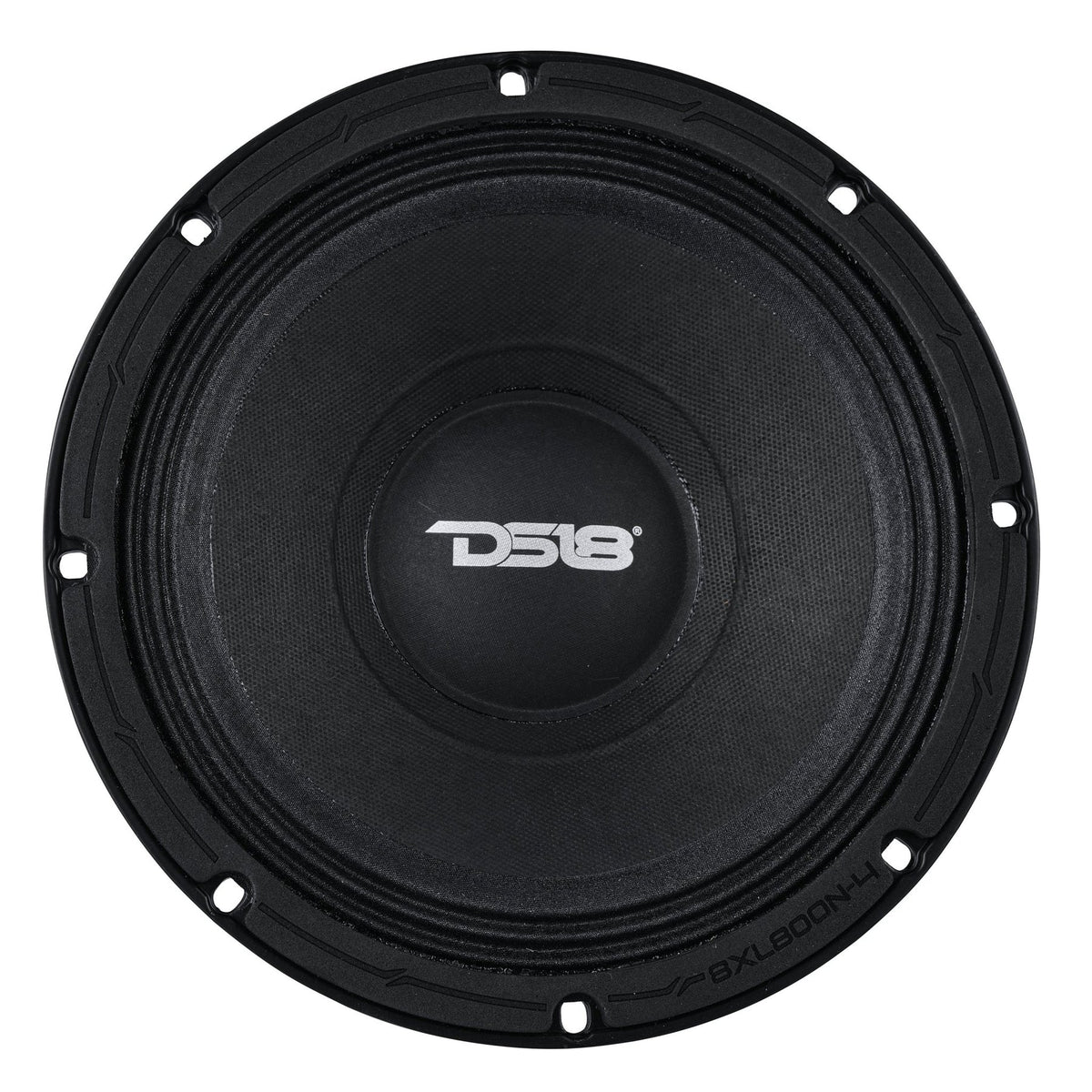

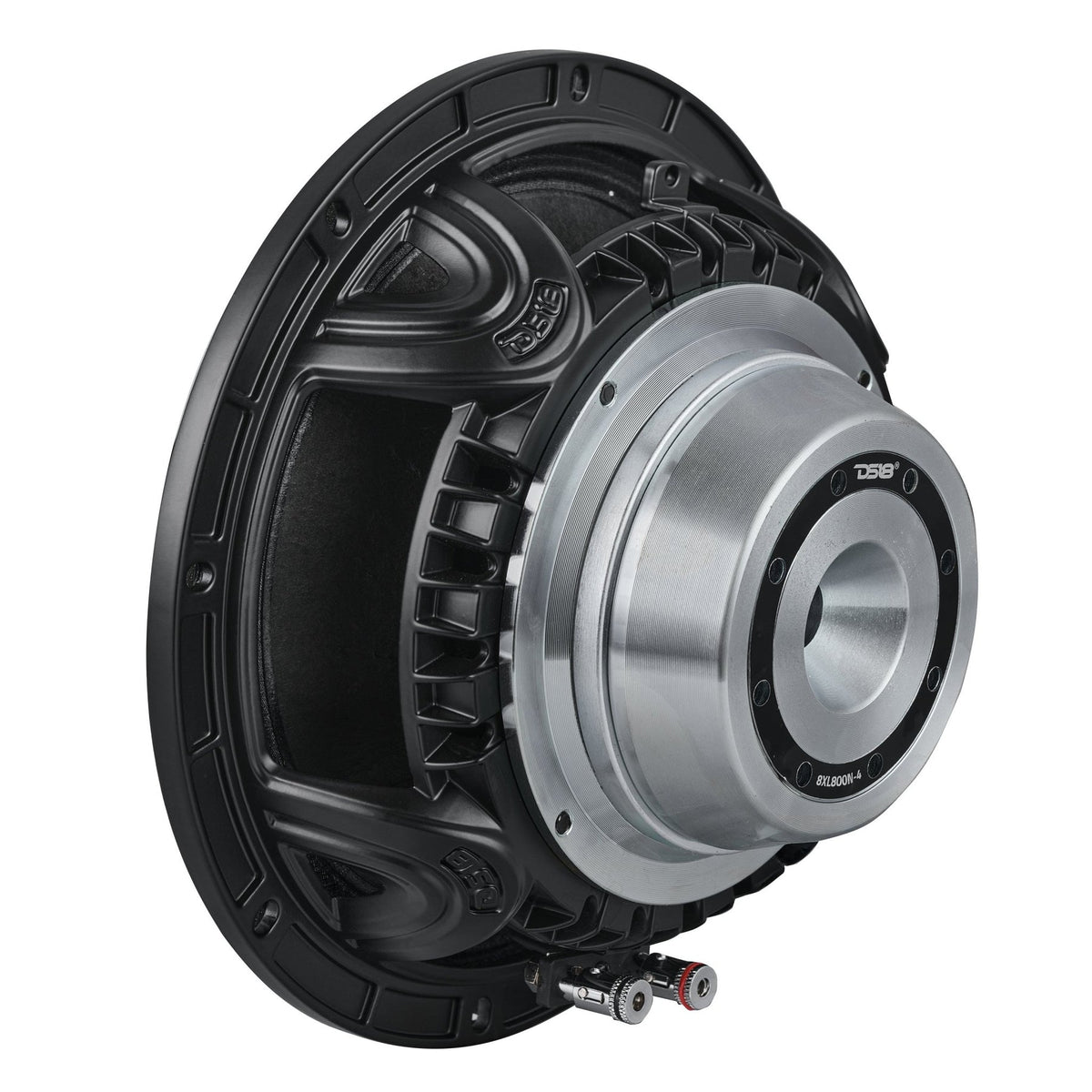

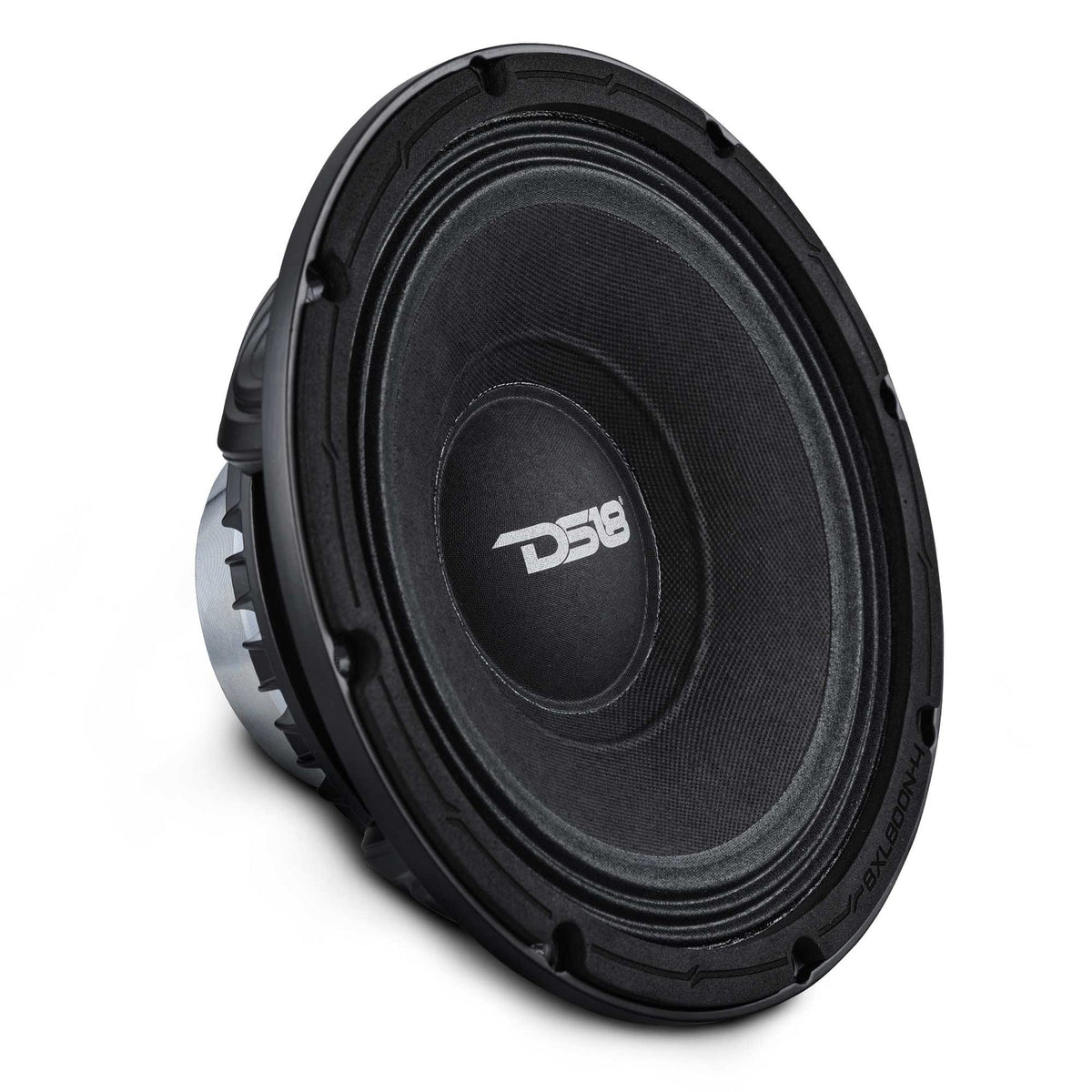

DS18 8XL800N 8" Neodymium Midrange Speaker – 400W RMS
DS18 8XL800N 8" Neodymium Midrange Speaker – 400W RMS - 4 Ohms is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout
The DS18 8XL800N is a 8-inch XL midrange loudspeaker rated for 400W RMS and 800W maximum power. Select the ohm load that matches your amplifier and wiring.
Specifications
| SKU | 8XL800N-4 / 8XL800N-8 |
|---|---|
| Nominal size | 8" |
| Impedance | 4 ohms or 8 ohms |
| RMS power handling | 400 watts |
| Maximum power handling | 800 watts |
| Sensitivity (1W/1m) | 100.7 dB |
| Frequency response | 100 Hz–10 kHz |
| Recommended high-pass crossover | 160 Hz |
| Voice coil | 2" / 50.8 mm |
| Voice-coil former | Kapton |
| Winding | CCAW |
| Magnet | Neodymium, 7.5 oz |
| Basket | Aluminum |
| Cone | Non-pressed paper |
| Surround | Cloth |
| Overall diameter | 210 mm |
| Overall depth | 98 mm |
| Baffle cutout | 183 mm |
| Mounting depth | 86 mm |
| Motor diameter | 102 mm |
Demodulating rings; 12 AWG push terminals.

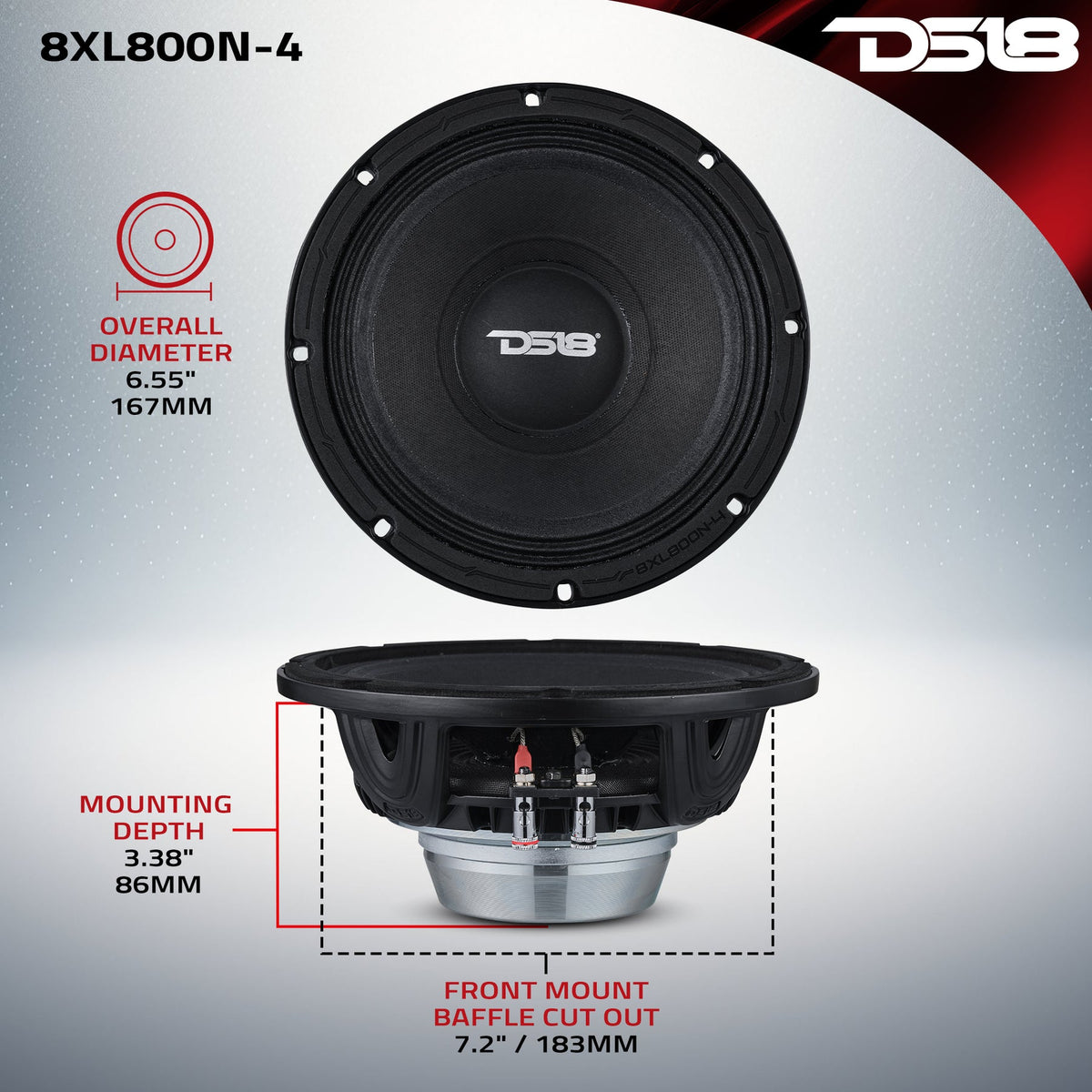

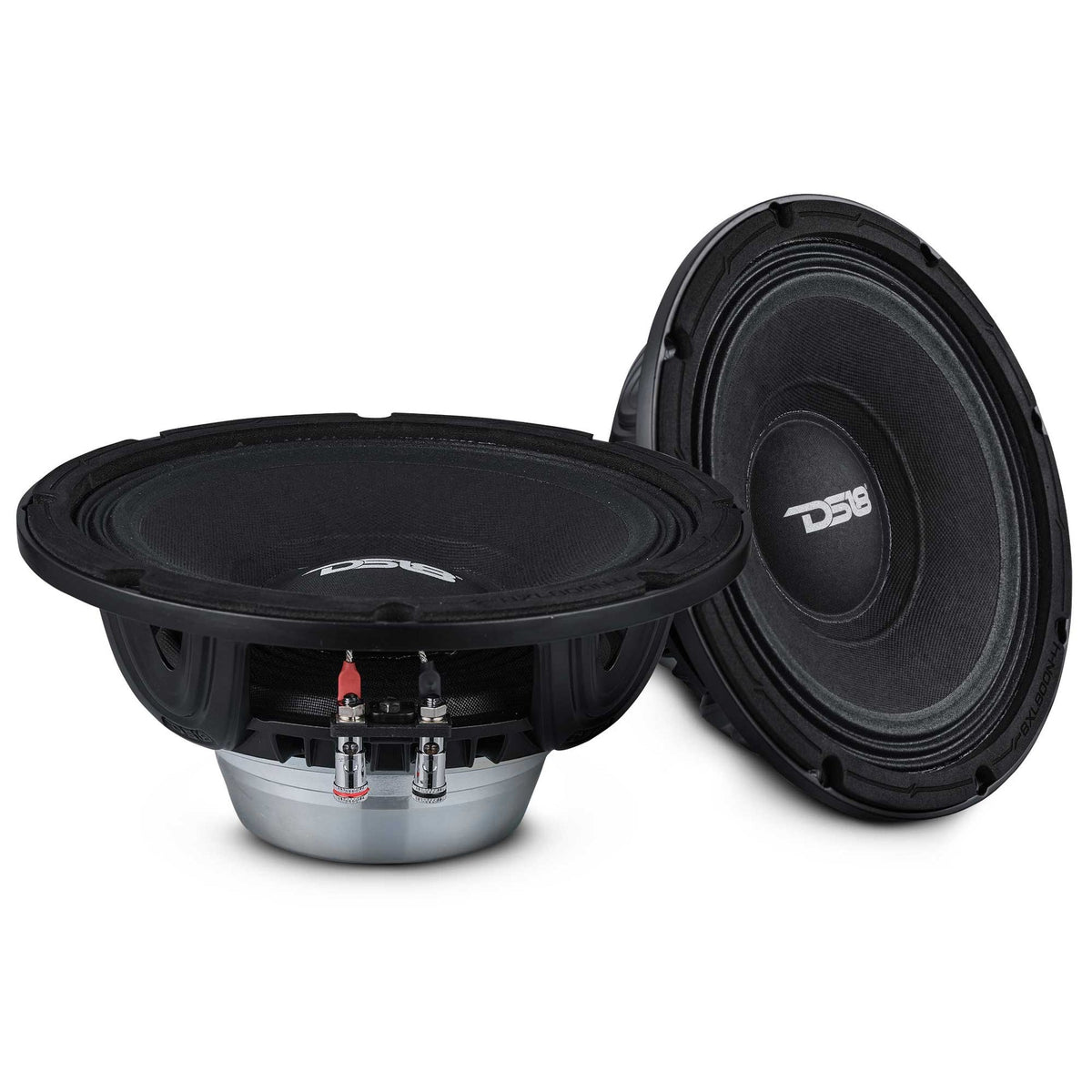

Sold individually. Grille not included. Pair photos are illustrative; this listing includes one speaker. Check the dimensional drawing and mounting clearance before ordering.
