DS18

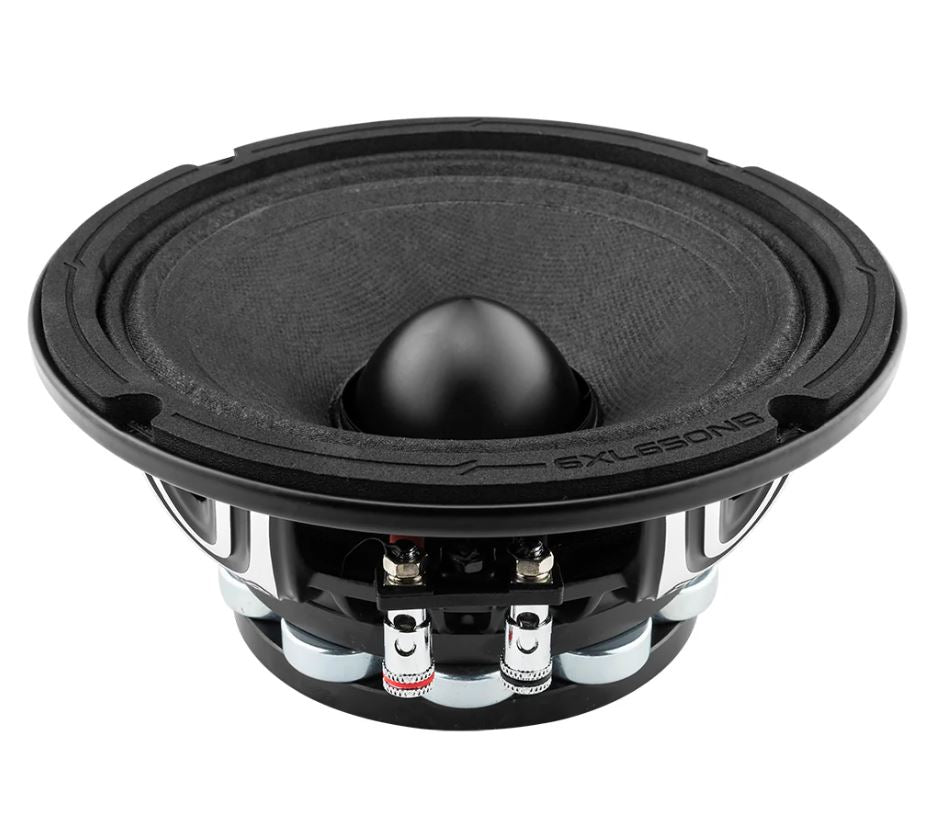

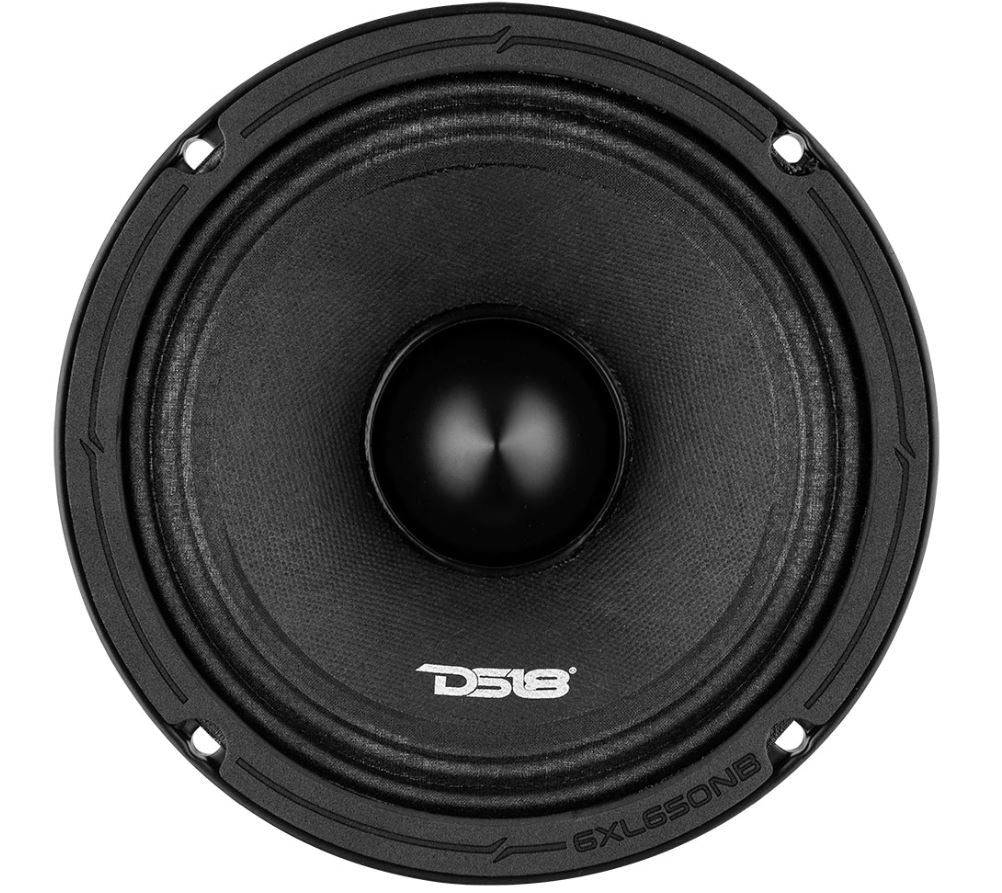

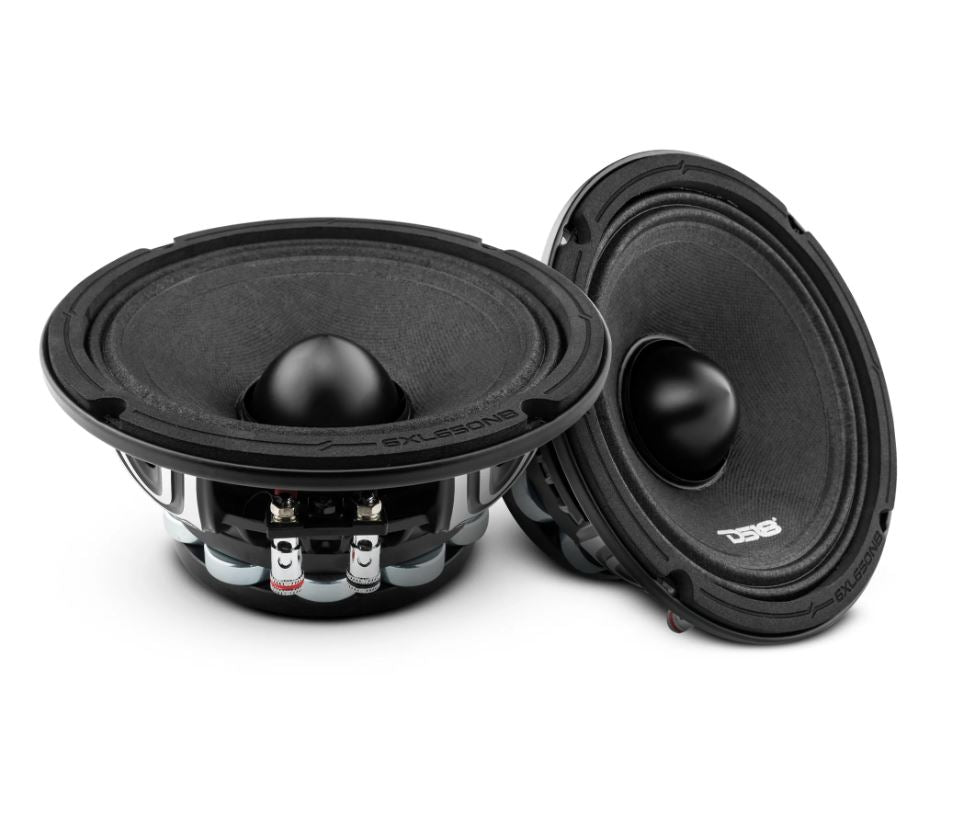

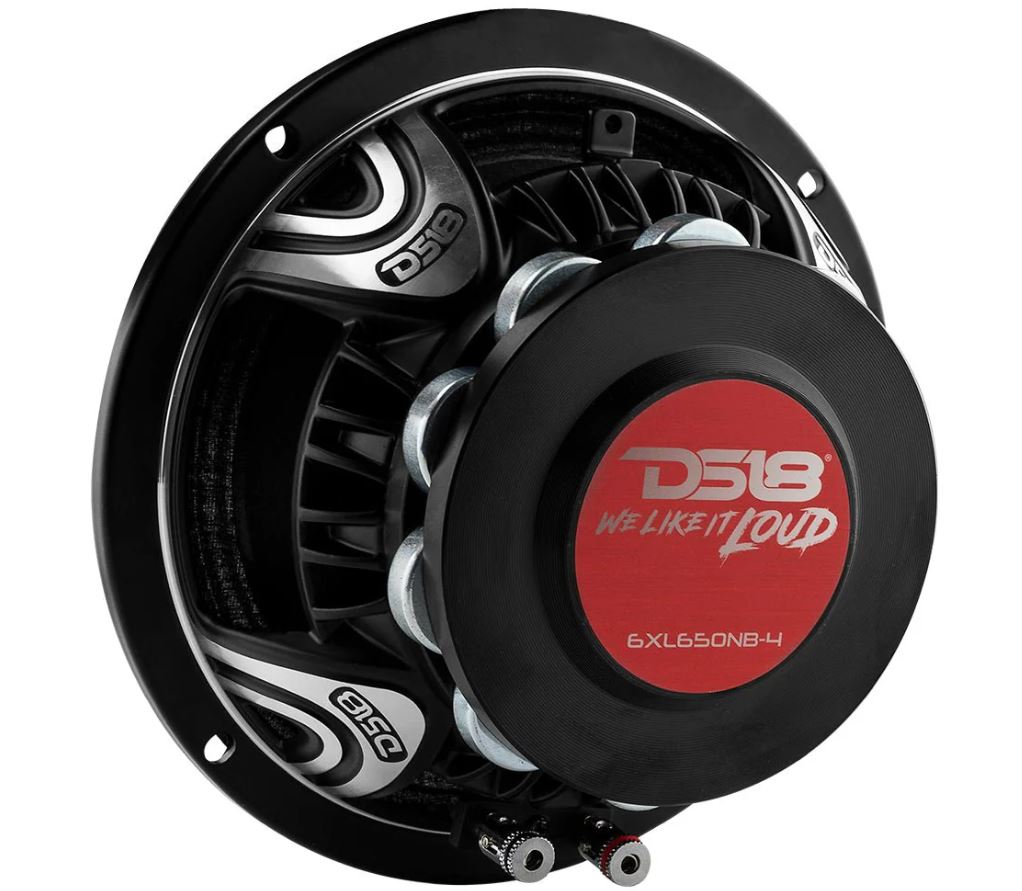

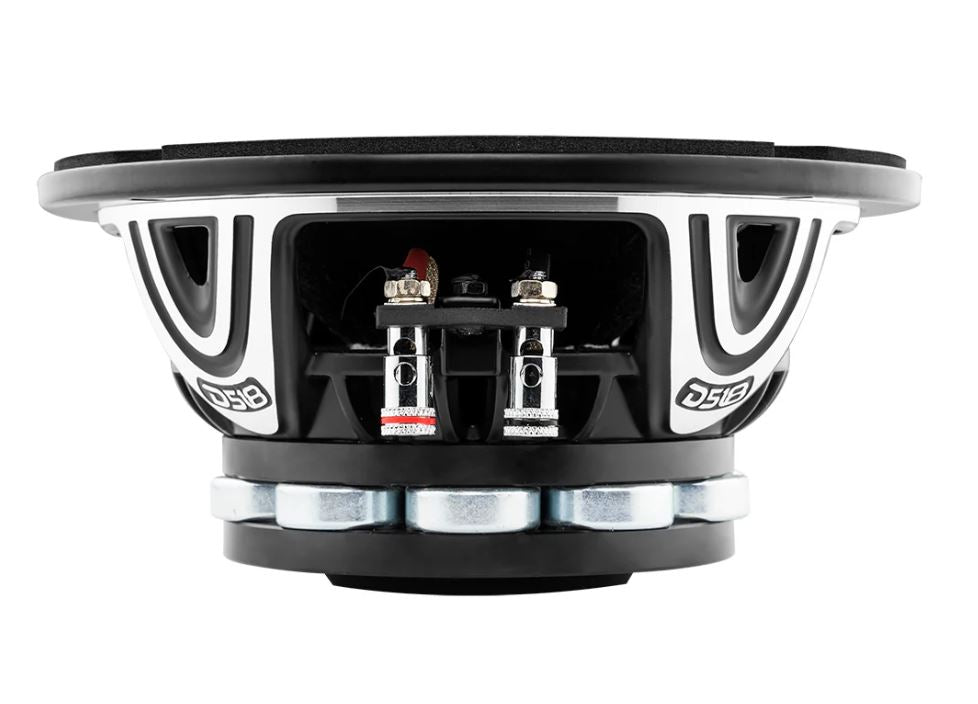

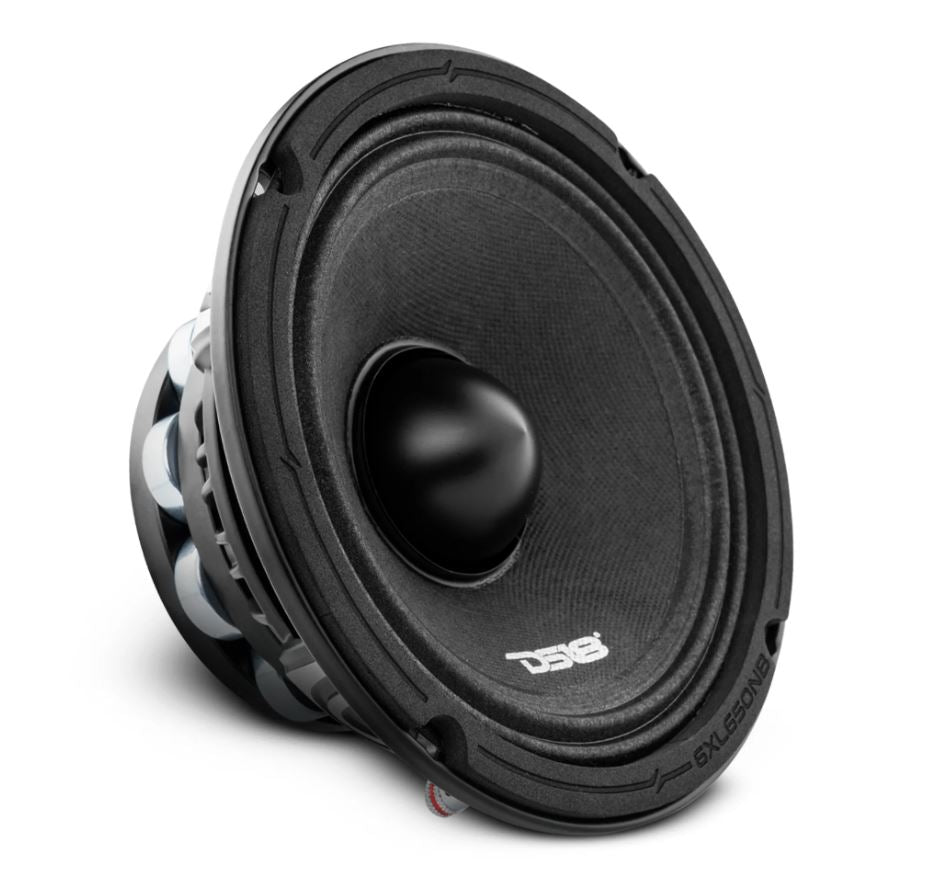

DS18 6XL650NB-4 6.5” Neodymium Midrange Speaker

Regular price $203.95

Ohms

Pickup available at Serious Innovations Clifton Location

Usually ready in 5+ days

Description

DS18 6XL650NB-4 6.5” Neodymium Midrange Speaker with Bullet — 325W RMS

The DS18 6XL650NB-4 is designed for high-output midrange performance with strong clarity and projection. Built with a lightweight neodymium motor and aluminum bullet, this driver delivers fast response and efficient output, making it ideal for pro audio style builds and loud daily systems.

Perfect for setups that require strong vocal presence and dynamic midrange detail.


Built for Loud & Clear Performance

With a high sensitivity rating and wide frequency range, this speaker is engineered to play loud while maintaining clarity. The non-pressed paper cone provides natural sound reproduction, while the aluminum bullet improves dispersion and helps maintain consistent output across the midrange frequencies.

Its compact design and lightweight motor structure make it a great option for door builds and custom panels where space and weight matter.


Key Features

  • 6.5” high-output midrange loudspeaker

  • Lightweight neodymium magnet motor

  • Aluminum bullet for improved dispersion

  • High sensitivity for strong output

  • Non-pressed paper cone for natural sound

  • Satin black aluminum basket construction

  • Designed for pro audio and high-output systems


Power Handling

RMS Power: 325 Watts

MAX Power: 650 Watts


Specifications

Impedance: 4 Ohm

Sensitivity: 97 dB

Frequency Response: 80Hz – 12.5kHz

Voice Coil Size: 2”

Magnet Type: Neodymium


Ideal For

  • Pro audio door builds

  • Loud daily driver systems

  • Midrange reinforcement

  • Demo vehicles

  • Custom speaker panels

SPECS

SKU
6XL650NB-4
Nominal Diameter
6.5" / 165mm
Nominal Impedance
4 Ohm / 8 Ohm
RMS Power Handling
325 watts
MAX Power Handling
650 watts
Sensitivity (1w/1m)
97dB
Frequency Response
80Hz-12.5KHz
Recommended HI Pass Crossover
100Hz
Sold in Pair or Single
Single
Grill Included
No


Motor

Voice Coil Diameter
2" / 50.8mm
Voice Coil Former Material
Kapton
Winding Material
CCAW
Cone Material
Non-pressed Paper
Dust Cap Material
N/A
Bullet Material
Aluminum
Bullet Color/Finish
Black
Surround Material
Cloth
Basket Material
Aluminum
Basket Color/Finish
Satin Black
Magnet Material
Neodymium Rings
Magnet Weight
11.4 Oz
Displacement Volume
0.34L / 0.012ft3


Thiele & Small Parameters

Equivalent Volume
5.07L / 0.17ft3
Excursion (one way)
3.7mm
Free Air Resonance
120Hz
Mechanical Factor
5.16
Electrical Factor
0.28
Total Factor
0.26
Mechanical Mass
9.11g
Mechanical Compliance
0.19mm/N
BL Factor
9.41
Voice Coil Inductance
0.05mH
Cone Area
136.85cm2
DC Resistance
3.5 ohm
Mechanical Mass w/o air
8.2g


Measurement

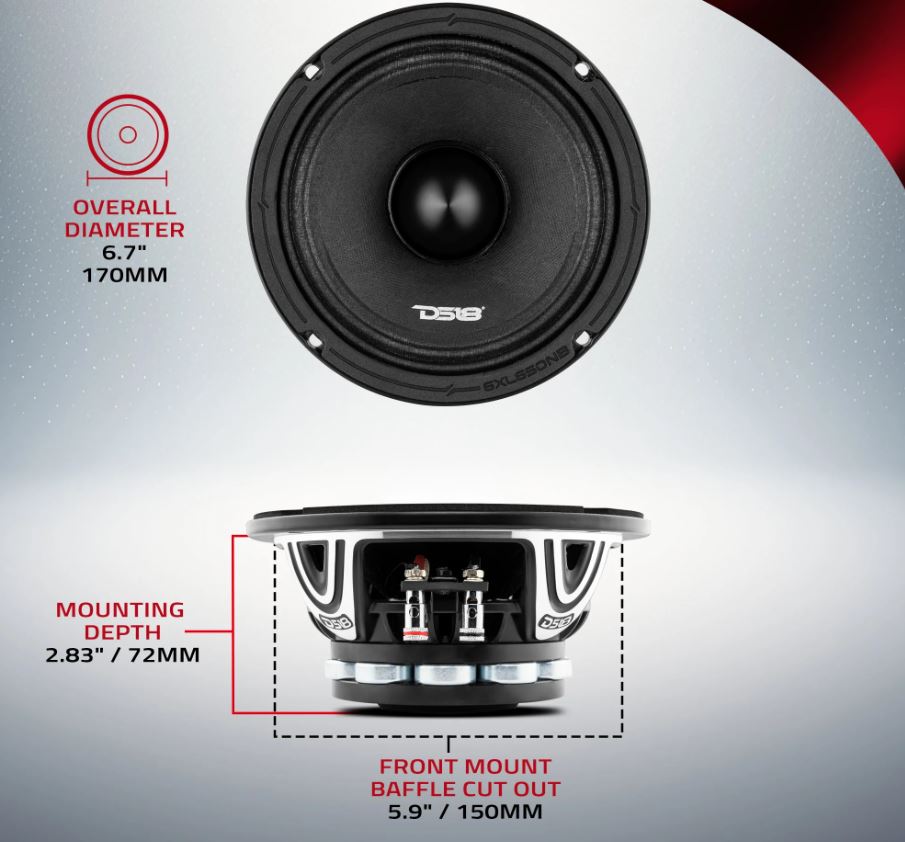

Overall Diameter
6.7" / 170mm
Overall Depth
3.19" / 81mm
Front Mount Baffle Cutout
5.9" / 150mm
Mounting Depth
2.83" / 72mm
Motor Diameter
4.13" / 105mm
