DS18 4" PRO-TW750CN Super Bullet Tweeter with 1.5" 8 ohms

DS18 PRO-TW750CN-8 4” Super Bullet Tweeter — High Output Neodymium Design

The DS18 PRO-TW750CN-8 is built for systems that demand aggressive high-frequency output with exceptional clarity. Designed with a compact footprint and high-efficiency motor structure, this tweeter delivers strong projection while maintaining precision at high volume levels.

Perfect for pro audio style builds, demo vehicles, and high-output daily systems where strong highs are essential.

Built for Projection & Clarity

Featuring a CNC-machined aluminum bullet housing and neodymium motor, this tweeter is engineered for efficient sound projection and heat management. The titanium voice coil allows it to handle high power levels while maintaining crisp detail across the upper frequency range.

Its shallow mounting depth makes it easy to integrate into doors, pillars, dashboards, or custom panels.

Key Features

• 4” super bullet tweeter design

• High-efficiency neodymium magnet motor

• 1.5” titanium voice coil

• CNC aluminum housing for durability and cooling

• High sensitivity for strong output

• Compact mounting depth for flexible installation

• Includes bass blocker capacitor

Power Handling

RMS Power: 220 Watts
Peak Power: 440 Watts

Specifications

Impedance: 8 Ohm

Sensitivity: 110 dB

Frequency Response: 900Hz – 20kHz

Magnet Type: Neodymium

Mounting Depth: 1.8”

Ideal For

• Pro audio style builds

• High output door systems

• Demo vehicles

• Mid/high frequency reinforcement

• Custom pillar or dash installs

Specifications

SKU
PRO-TW750CN-8/BK
Nominal Diameter
4" / 101mm
Nominal Impedance
8 ohms
AES Power Handling
160W
Program Power Handling
220W
Peak Power Handling
440W
Sensitivity (1w/1m)
110dB
Frequency Response
900Hz-20KHz
Recommended Hi Pass Crossover
3KHz
Sold In Pair or Single
Single

Body / Features

Filter (Bass Blocker)
3.3uf / 100V
Body Material
Aluminum
Body Color / Finish
Black / Aluminum
Faceplate Color / Finish
Black / Aluminum
Bullet Material
CNC Aluminum

Motor

Voice Coil Diameter
1.5" / 38mm
Voice Coil Former Material
KSV
Winding Material
CCAW
Diaphragm Material
Titanium
Magnet Material
Neodymium
Magnet Size
3.54"x0.19" / 90x5mm
Magnet Weight
5.82 Oz

Measurement

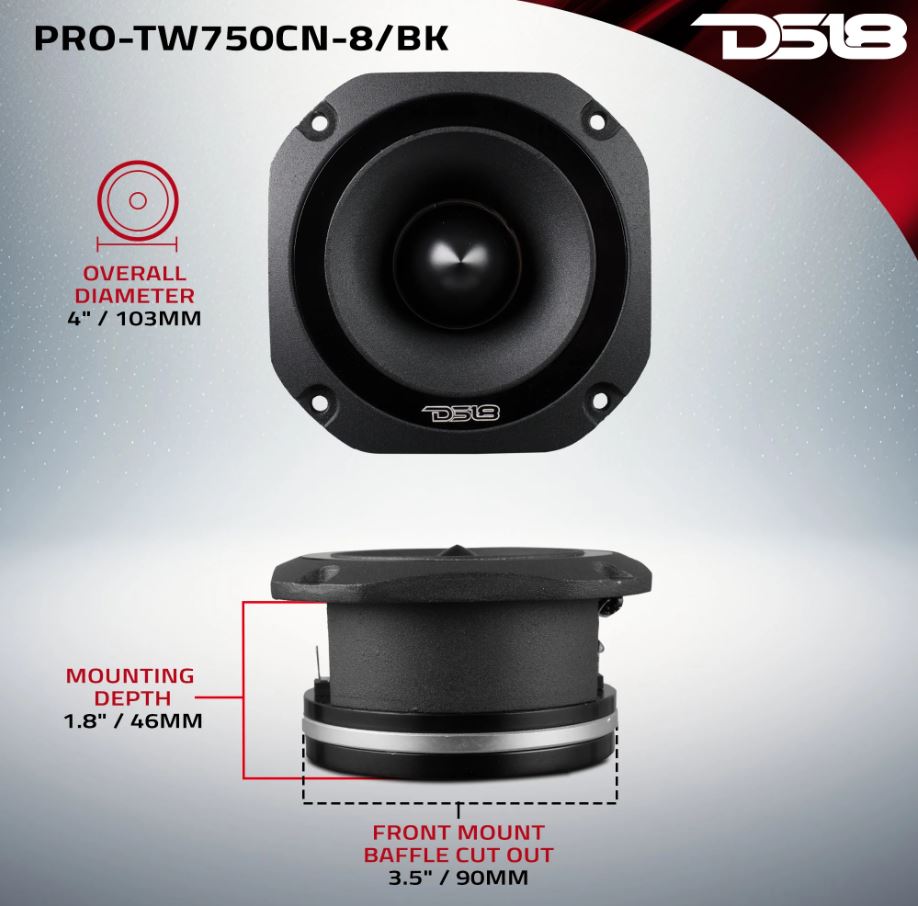

Overall Diameter
4" / 103mm
Overall Depth
2.28" / 58mm
Front Mount Baffle Cutout
3.5" / 90mm
Mounting Depth
1.8" / 46mm
