DS18 12XL1500MB 12" Mid-Bass Speaker – 750W RMS
DS18 12XL1500MB 12" Mid-Bass Speaker – 750W RMS - 4 Ohms is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout

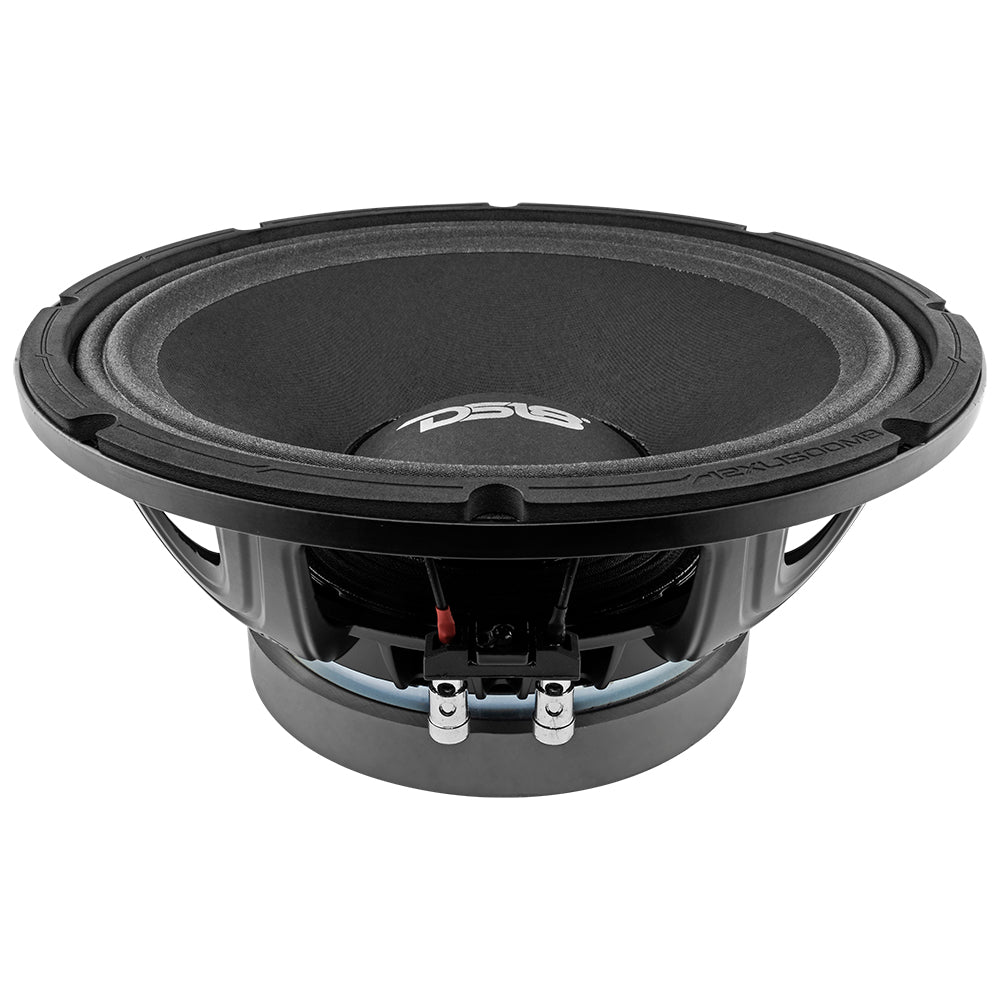

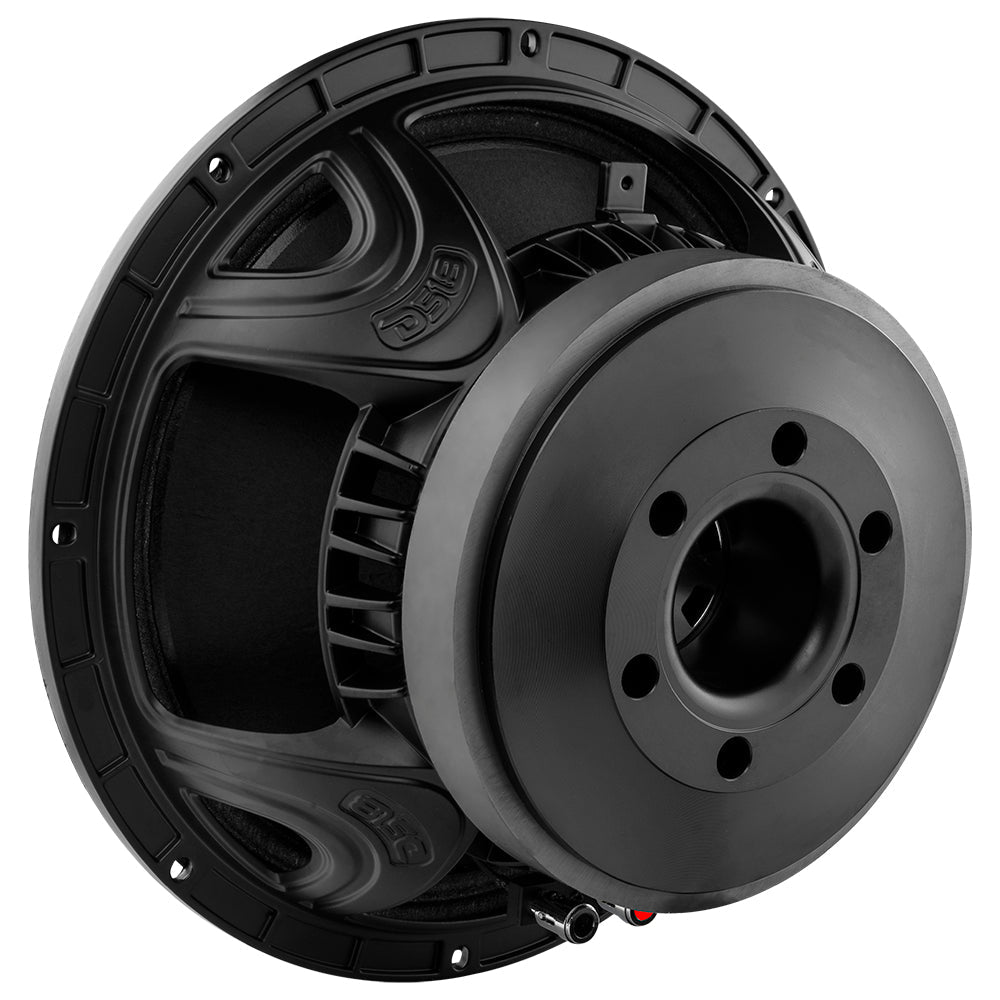

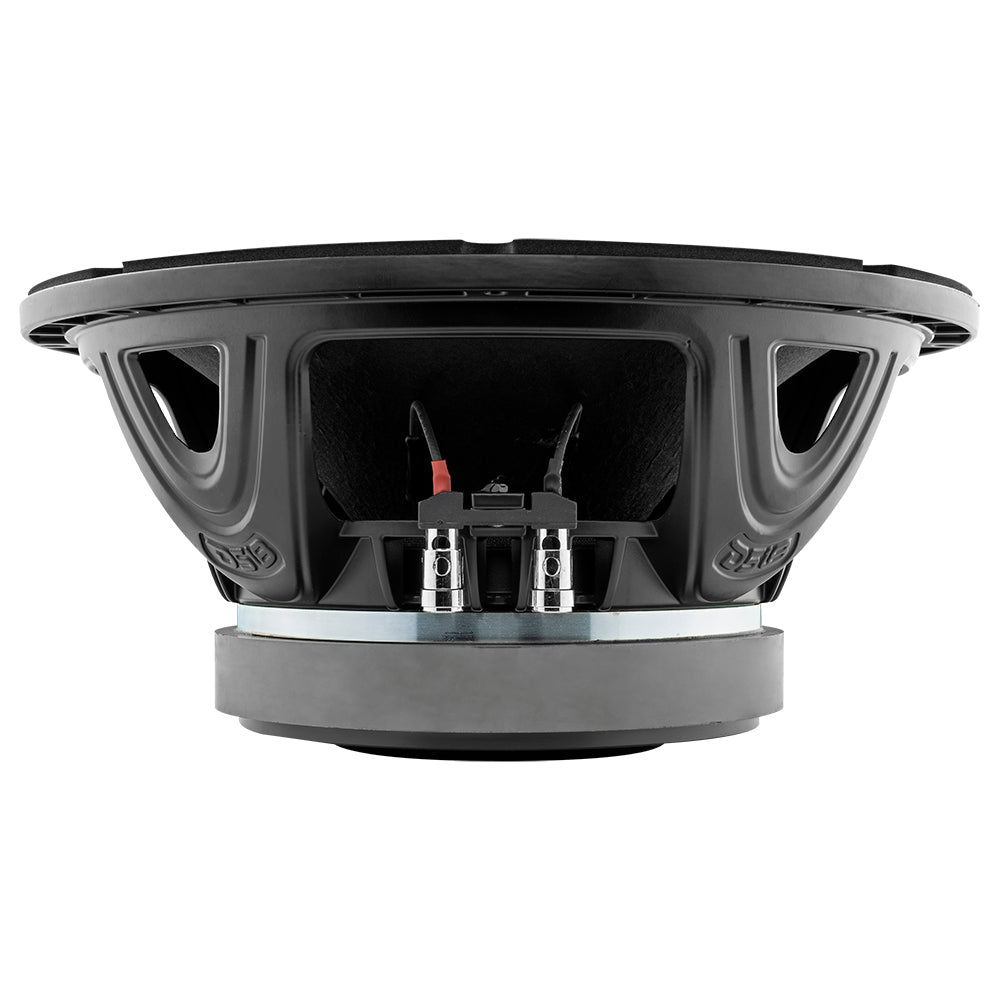

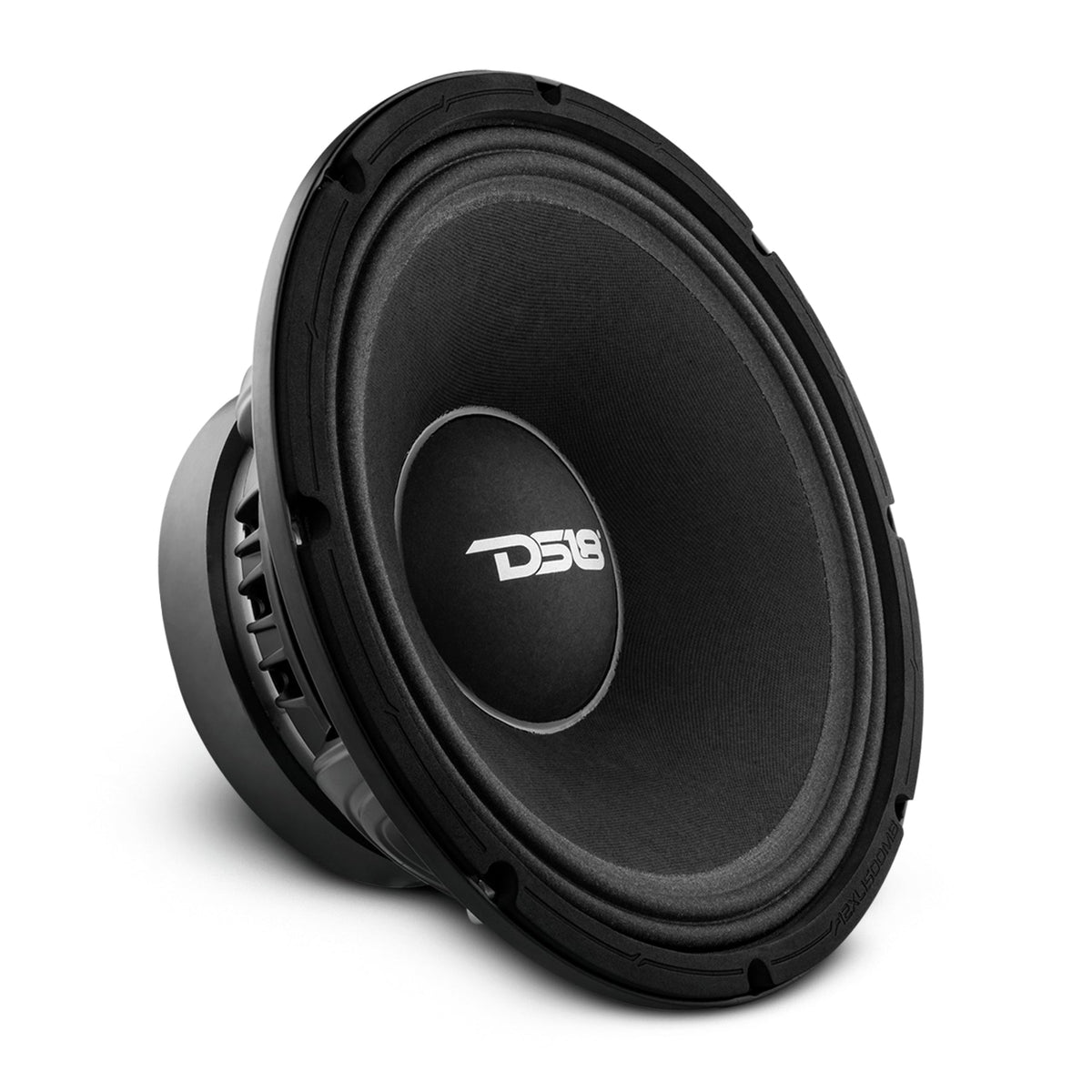

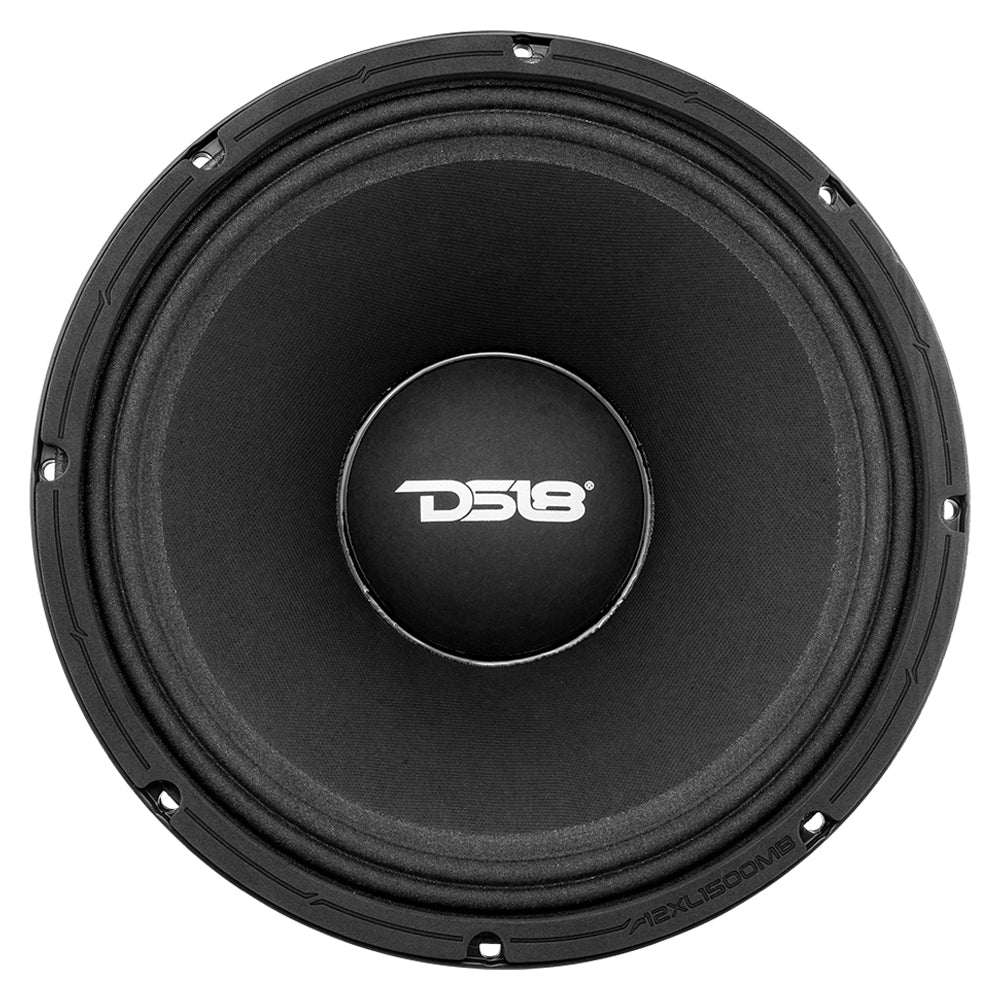

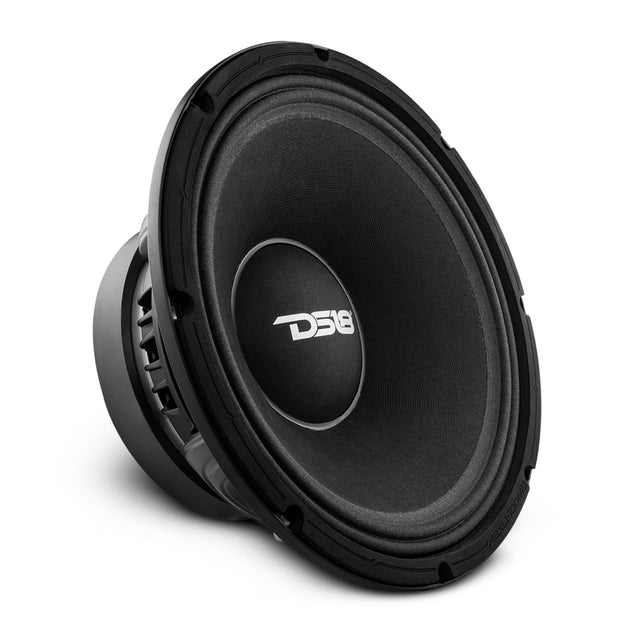

The DS18 12XL1500MB is a 12-inch XL mid-bass loudspeaker rated for 750W RMS and 1500W maximum power. Select the ohm load that matches your amplifier and wiring.
Specifications
| SKU | 12XL1500MB-4 / 12XL1500MB-8 |
|---|---|
| Nominal size | 12" |
| Impedance | 4 ohms or 8 ohms |
| RMS power handling | 750 watts |
| Maximum power handling | 1500 watts |
| Sensitivity (1W/1m) | 98.5 dB |
| Frequency response | 40 Hz–3 kHz |
| Recommended high-pass crossover | 60 Hz |
| Voice coil | 3.5" / 89 mm |
| Voice-coil former | Kapton |
| Winding | CCAW |
| Magnet | Ferrite, 93 oz |
| Basket | Aluminum |
| Cone | Non-pressed paper |
| Surround | Cloth |

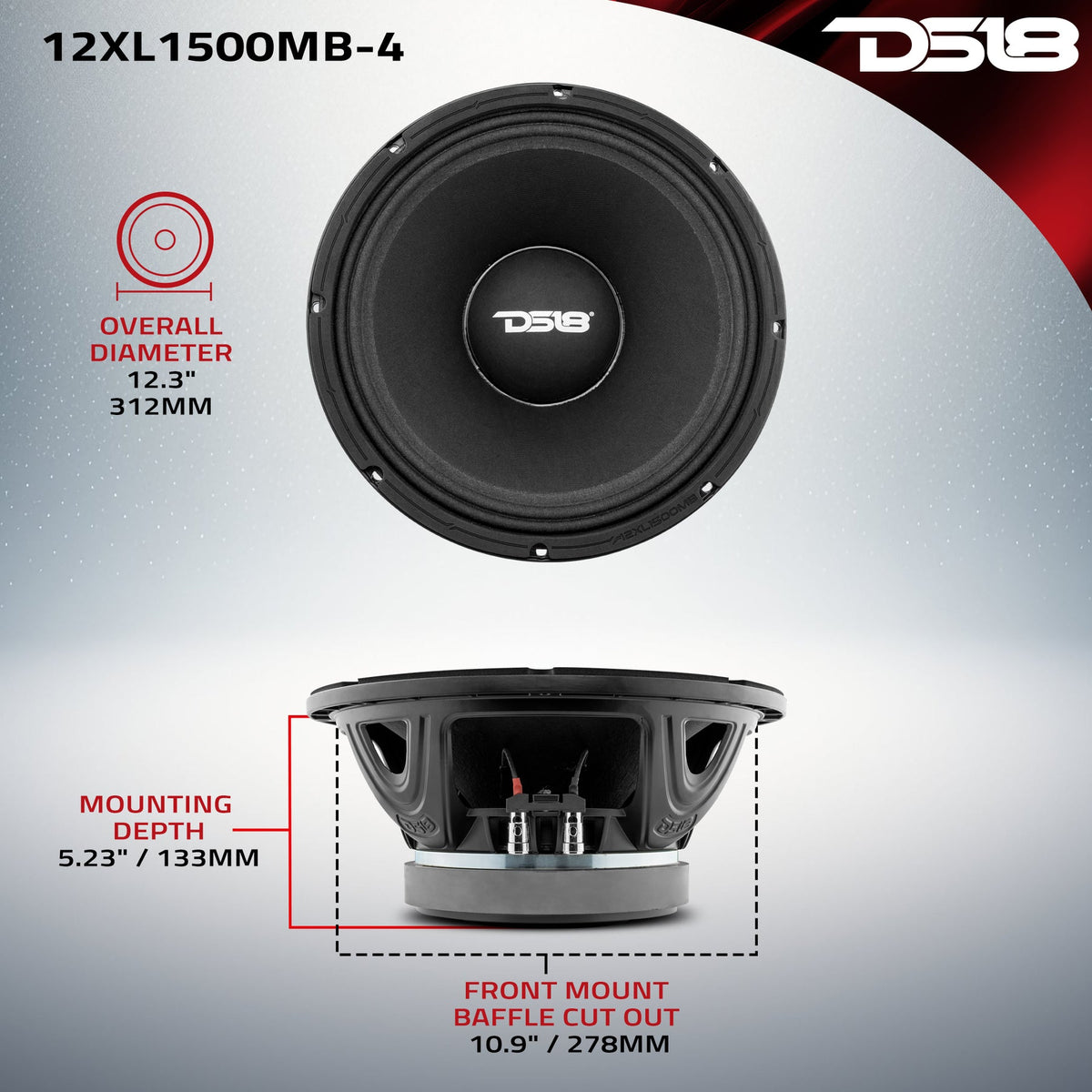

| Overall diameter | 312 mm |
| Overall depth | 146.2 mm |
| Baffle cutout | 278 mm |
| Mounting depth | 133 mm |
| Motor diameter | 190 mm |

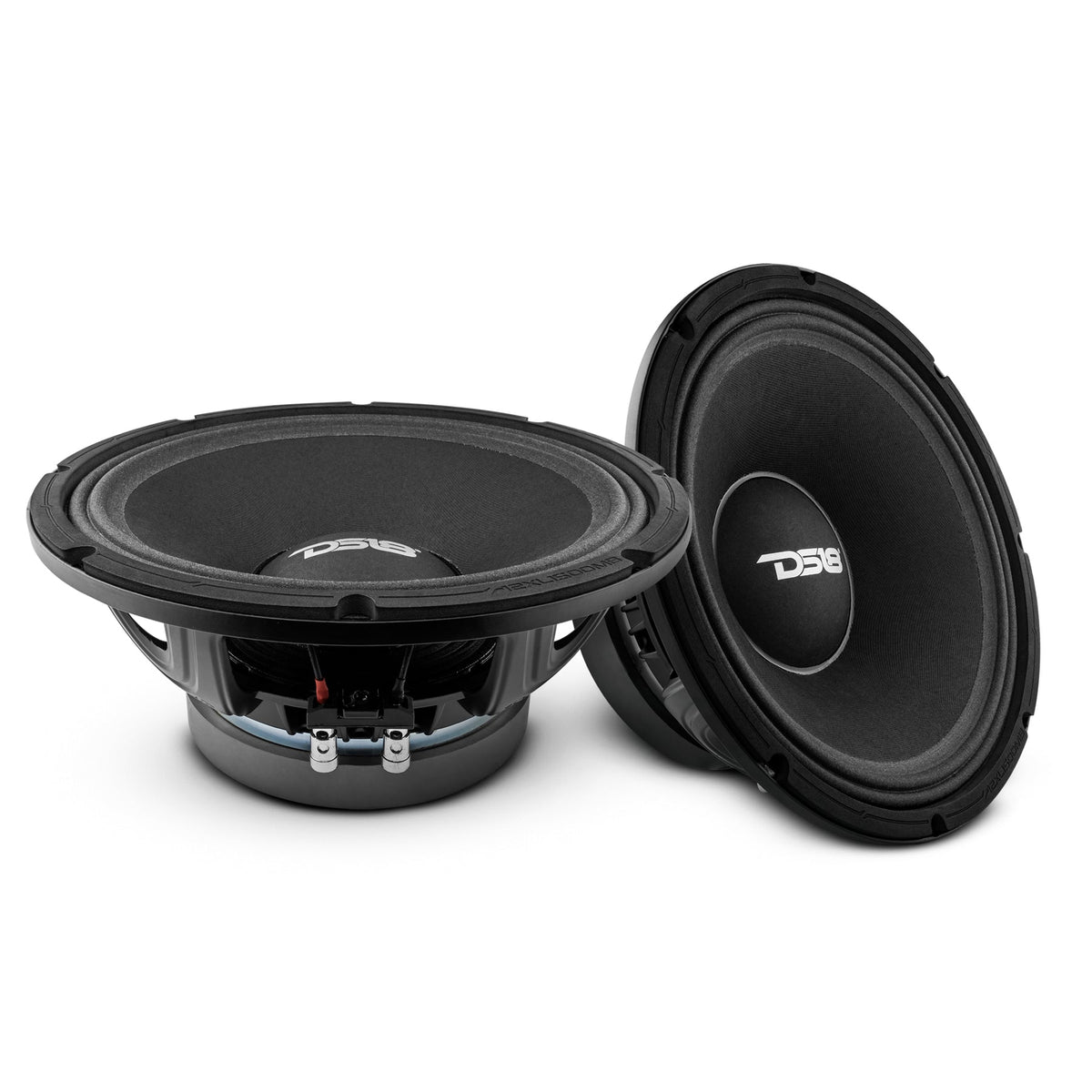

Sold individually. Grille not included. Pair photos are illustrative; this listing includes one speaker. Check the dimensional drawing and mounting clearance before ordering.
