DS18 12XL1000N 12" Neodymium Midrange Speaker – 500W RMS
DS18 12XL1000N 12" Neodymium Midrange Speaker – 500W RMS - 8 Ohms is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout

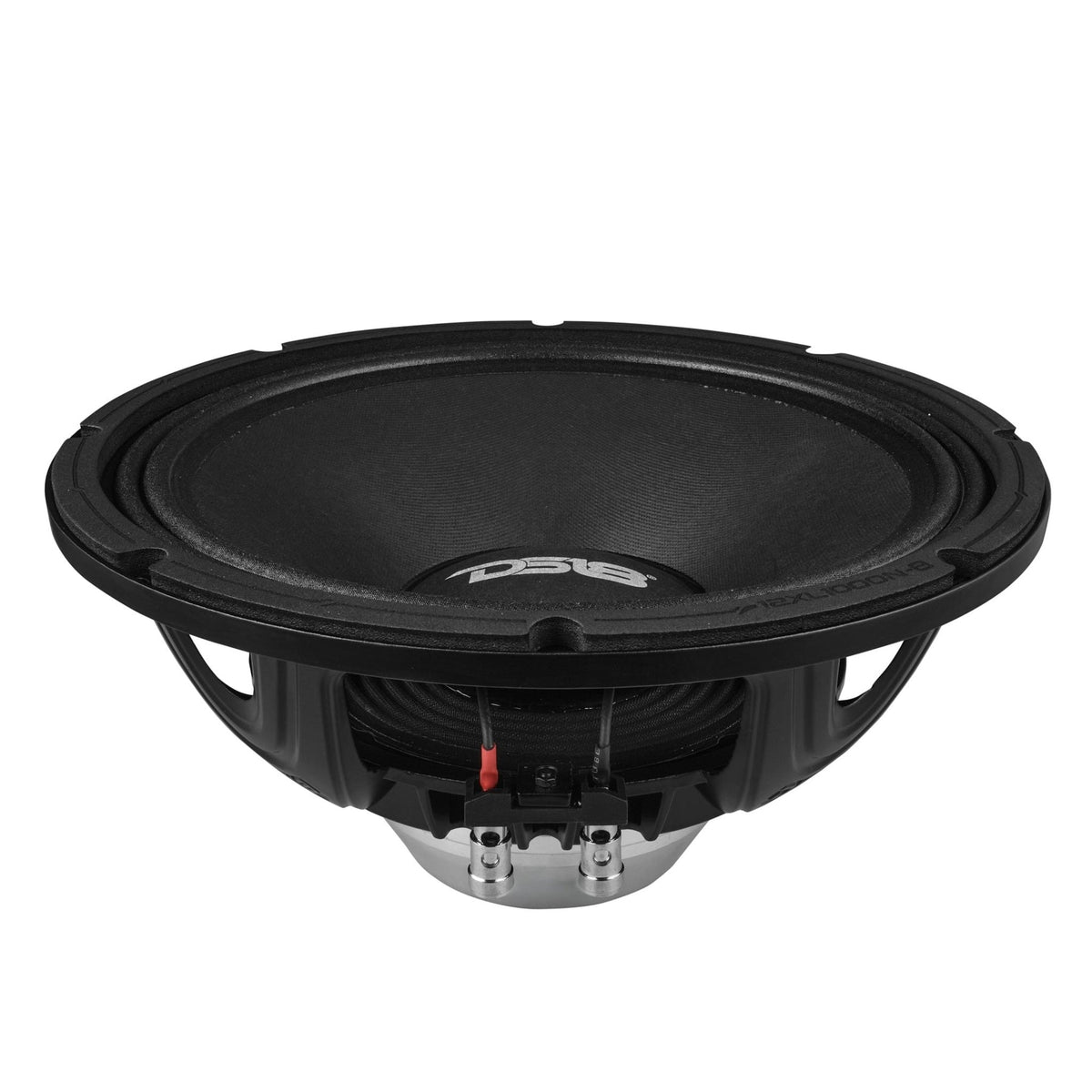

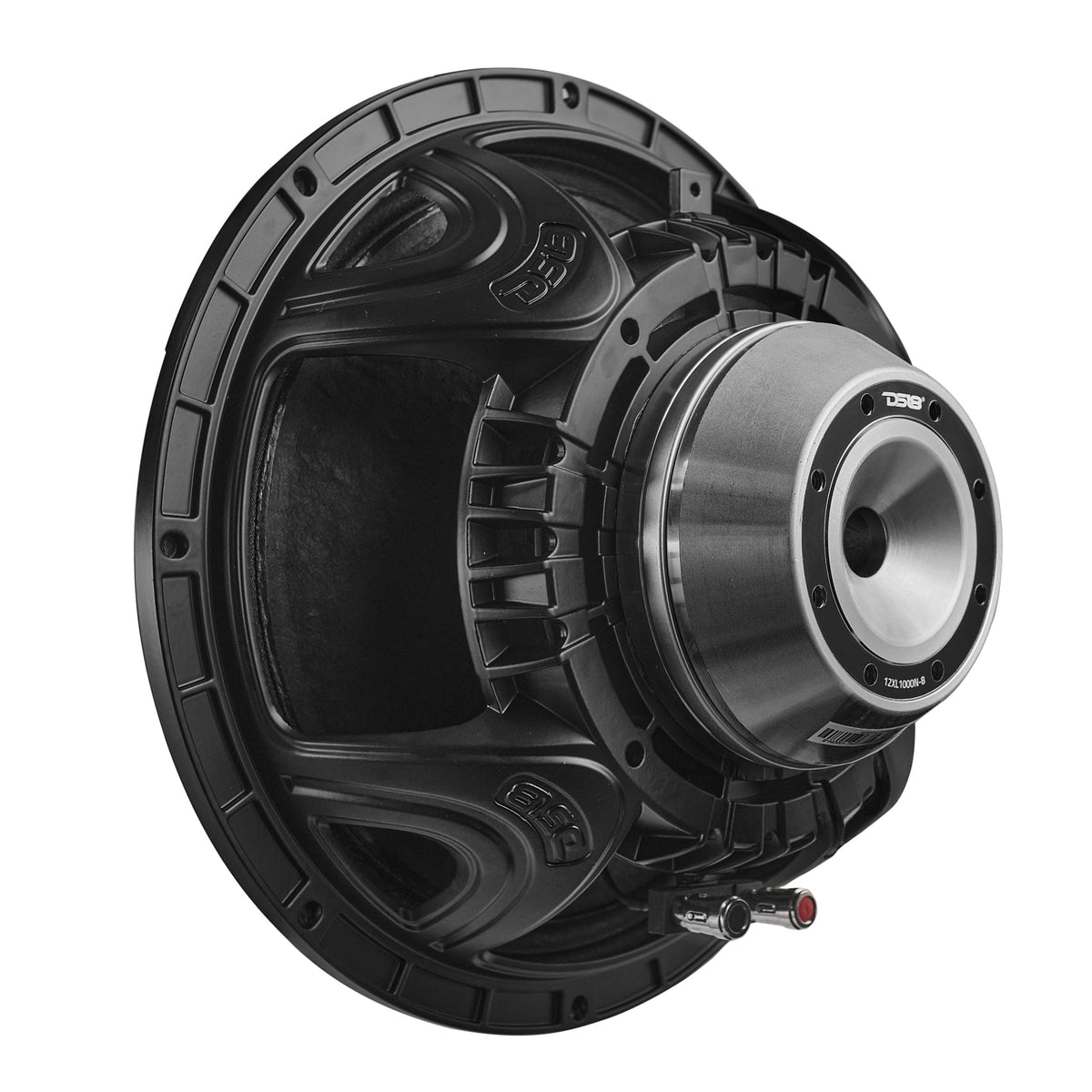

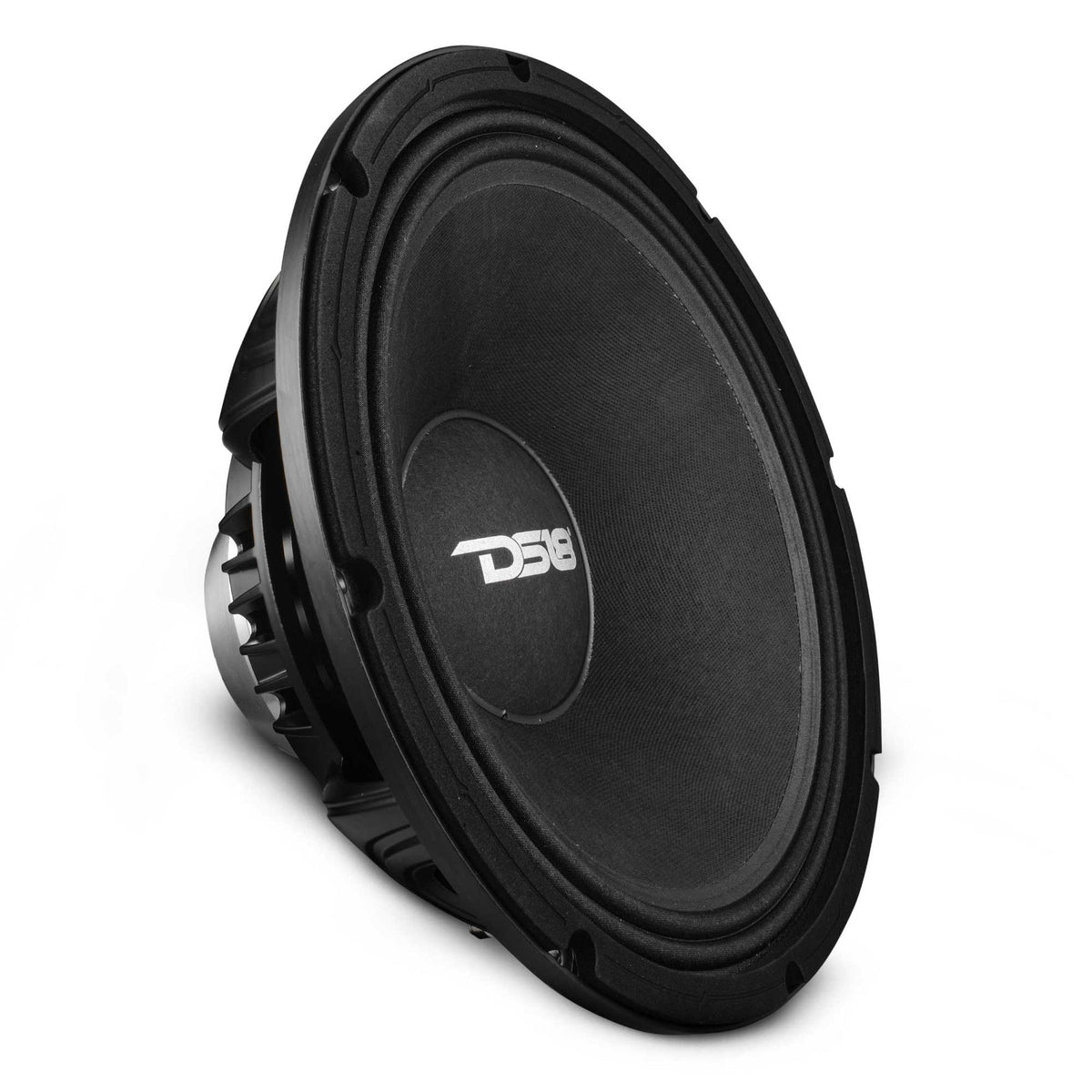

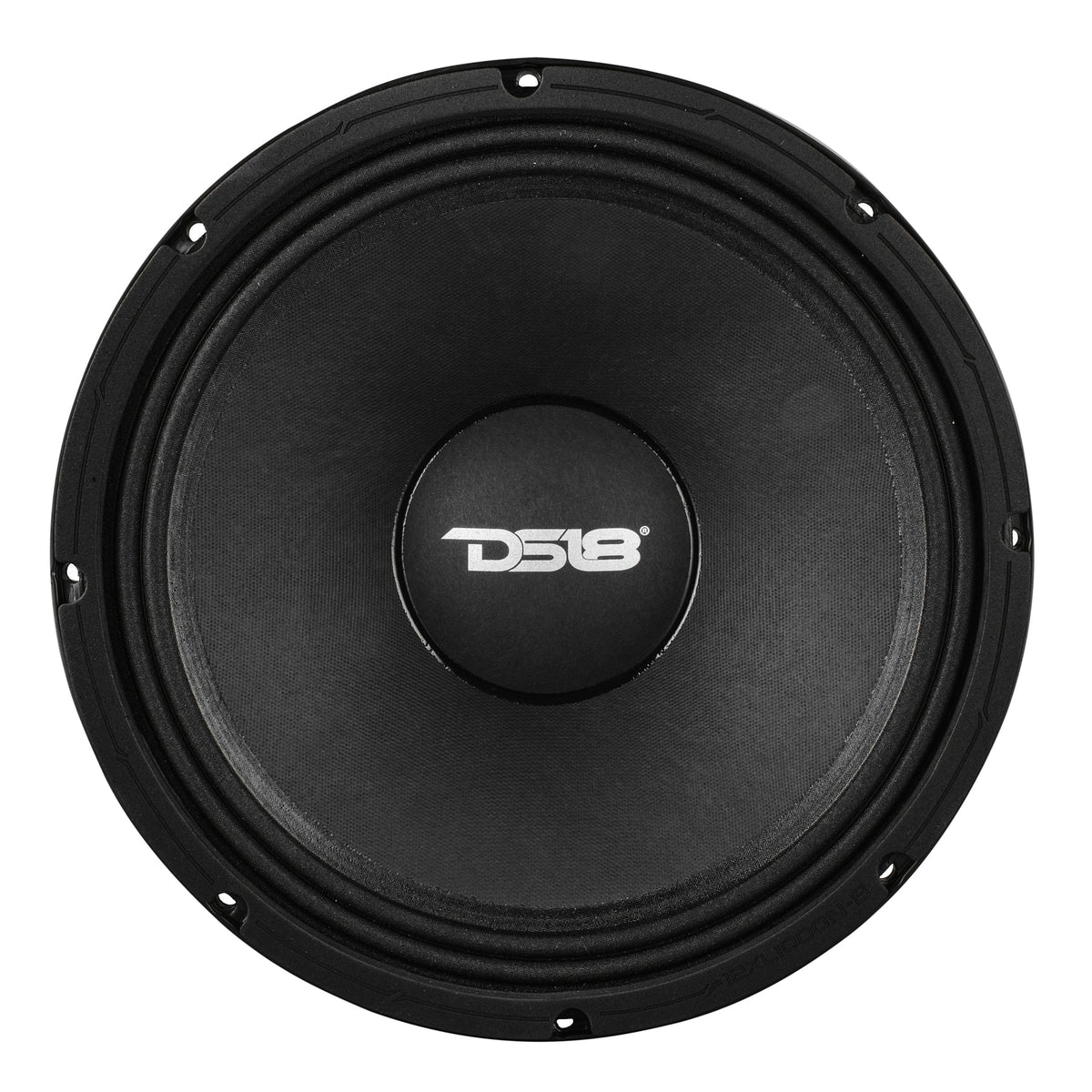

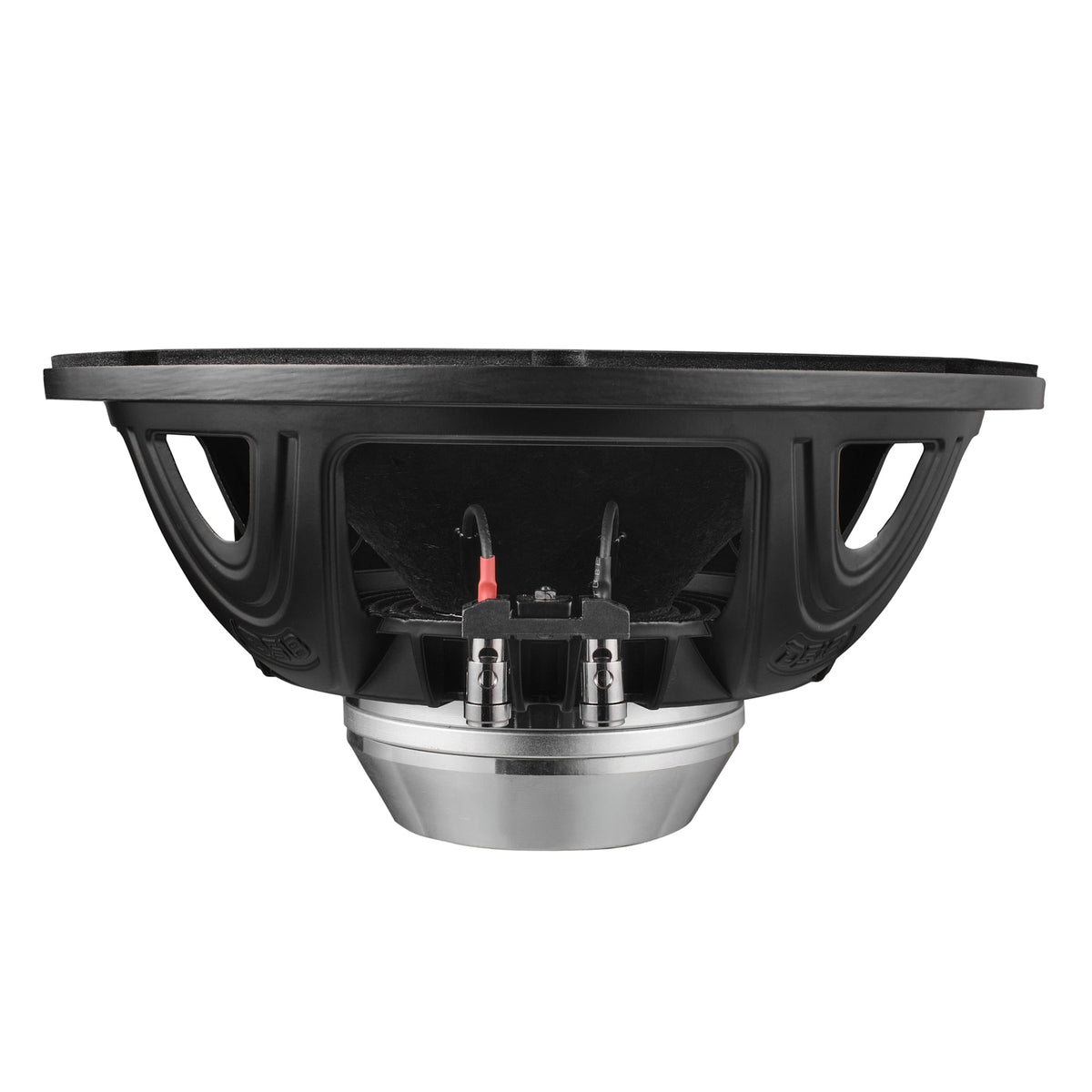

The DS18 12XL1000N is a 12-inch XL midrange loudspeaker rated for 500W RMS and 1000W maximum power. This model has an 8-ohm voice coil.
Specifications
| SKU | 12XL1000N-8 |
|---|---|
| Nominal size | 12" |
| Impedance | 8 ohms |
| RMS power handling | 500 watts |
| Maximum power handling | 1000 watts |
| Sensitivity (1W/1m) | 100 dB |
| Frequency response | 80 Hz–5 kHz |
| Recommended high-pass crossover | 100 Hz |
| Voice coil | 3" / 76.2 mm |
| Voice-coil former | Kapton |
| Winding | CCAW |
| Magnet | Neodymium, 11 oz |
| Basket | Aluminum |
| Cone | Non-pressed paper |
| Surround | Cloth |

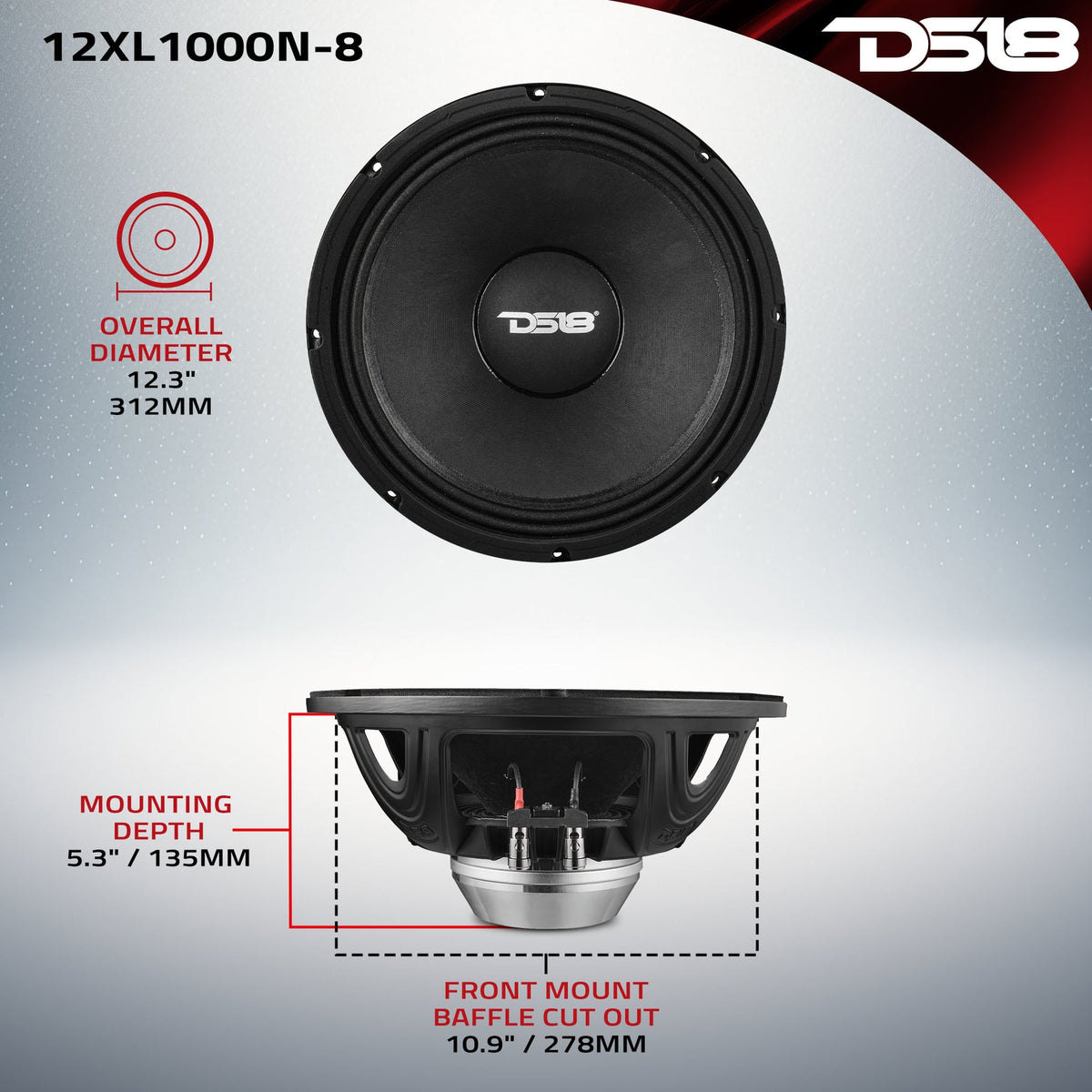

| Overall diameter | 312 mm |
| Overall depth | 148 mm |
| Baffle cutout | 278 mm |
| Mounting depth | 135 mm |
| Motor diameter | 131 mm |
Demodulating rings; 12 AWG push terminals.

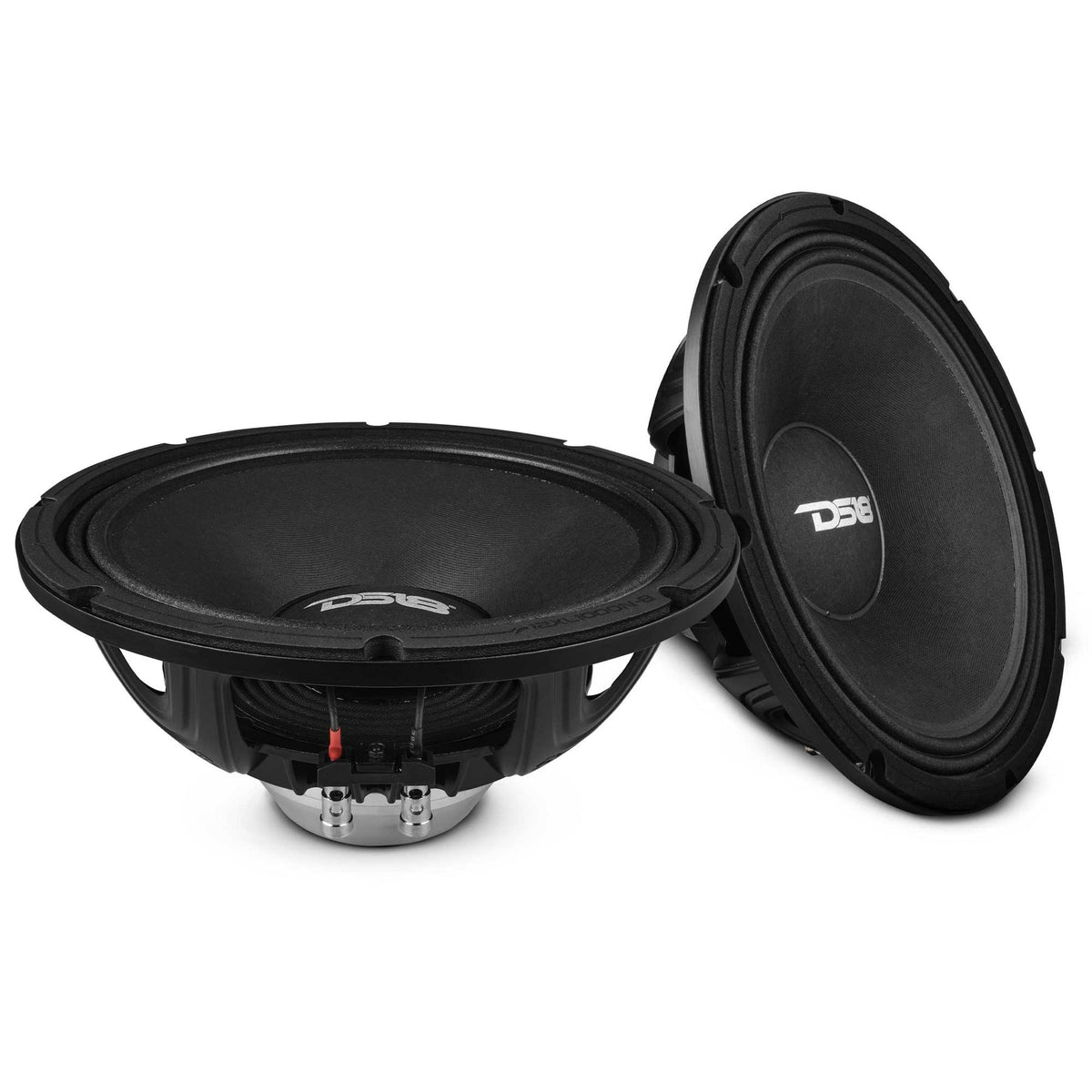

Sold individually. Grille not included. Pair photos are illustrative; this listing includes one speaker. Check the dimensional drawing and mounting clearance before ordering.
