The DS18 10XL1400MB is an XL Series 10-inch mid-bass loudspeaker rated for 700W RMS and 1,400W maximum power. Select 4 or 8 ohms to match your amplifier and wiring.
Specifications
| SKU | 10XL1400MB-4 / 10XL1400MB-8 |
|---|---|
| Nominal size | 10" / 254 mm |
| RMS / maximum power | 700W / 1,400W |
| Sensitivity (1W/1m) | 98 dB |
| Frequency response | 40 Hz–5 kHz |
| Recommended high-pass crossover | 80 Hz |
| Voice coil | 3.5" / 89 mm, Kapton former |
| Winding | CCAW, 2 layers IN/OUT |
| Cone / surround | Non-pressed paper / cloth |
| Basket | Satin-black aluminum |
| Magnet | 93 oz ferrite |

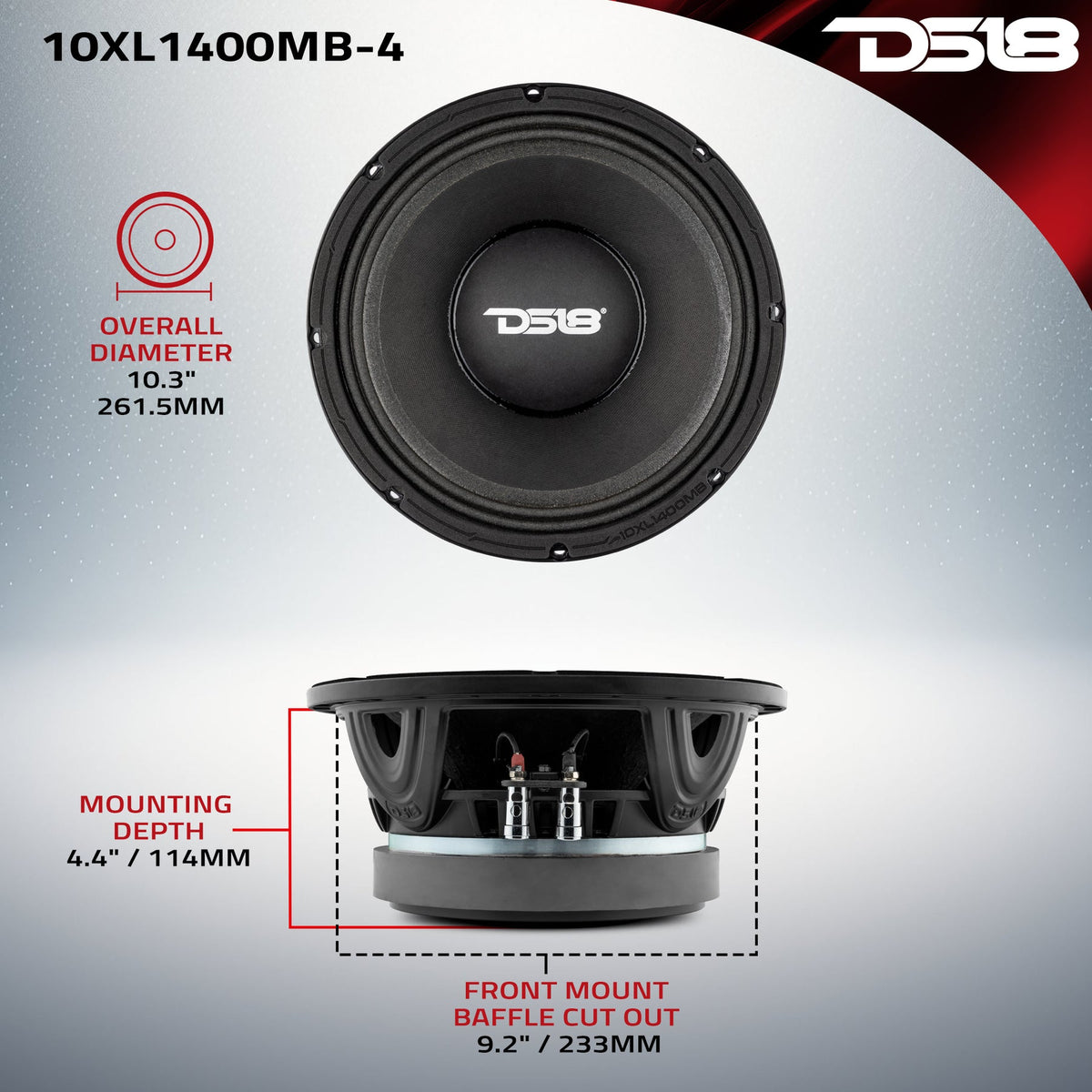

| Overall diameter | 261.5 mm |
| Overall depth | 125 mm |
| Baffle cutout | 233 mm |
| Mounting depth | 114 mm |
| Motor diameter | 190 mm |

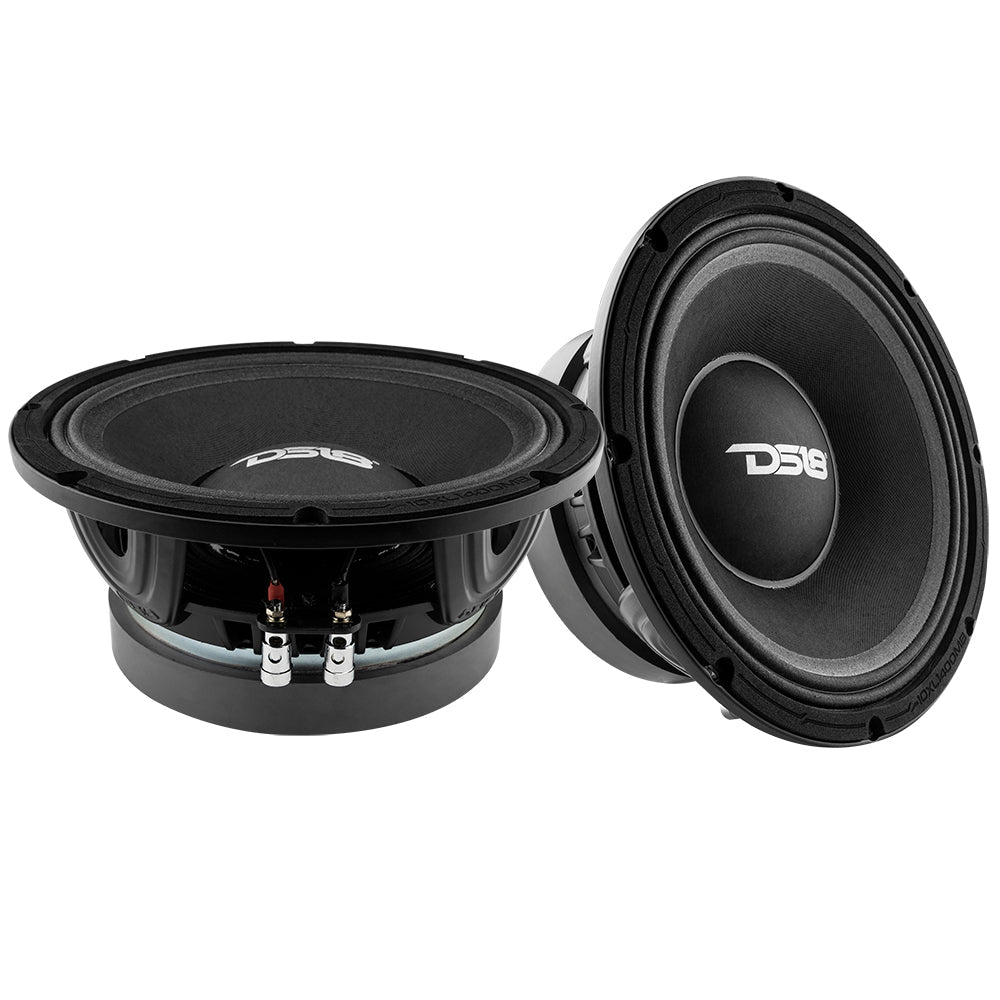

Sold individually. Grille not included. Pair photos are illustrative. Check mounting clearance and use the recommended crossover.
