DS18 10XL1400 10" Midrange Speaker – 700W RMS
DS18 10XL1400 10" Midrange Speaker – 700W RMS - 4 Ohms is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout
The DS18 10XL1400 is a 10-inch XL midrange loudspeaker rated for 700W RMS and 1400W maximum power. Select the ohm load that matches your amplifier and wiring.
Specifications
| SKU | 10XL1400-4 / 10XL1400-8 |
|---|---|
| Nominal size | 10" |
| Impedance | 4 ohms or 8 ohms |
| RMS power handling | 700 watts |
| Maximum power handling | 1400 watts |
| Sensitivity (1W/1m) | 98 dB |
| Frequency response | 60 Hz–6 kHz |
| Recommended high-pass crossover | 80 Hz |
| Voice coil | 3.5" / 89 mm |
| Voice-coil former | Kapton |
| Winding | CCAW |
| Magnet | Ferrite, 93 oz |
| Basket | Aluminum |
| Cone | Non-pressed paper |
| Surround | Cloth |
| Overall diameter | 261.5 mm |
| Overall depth | 125 mm |
| Baffle cutout | 233 mm |
| Mounting depth | 114 mm |
| Motor diameter | 190 mm |

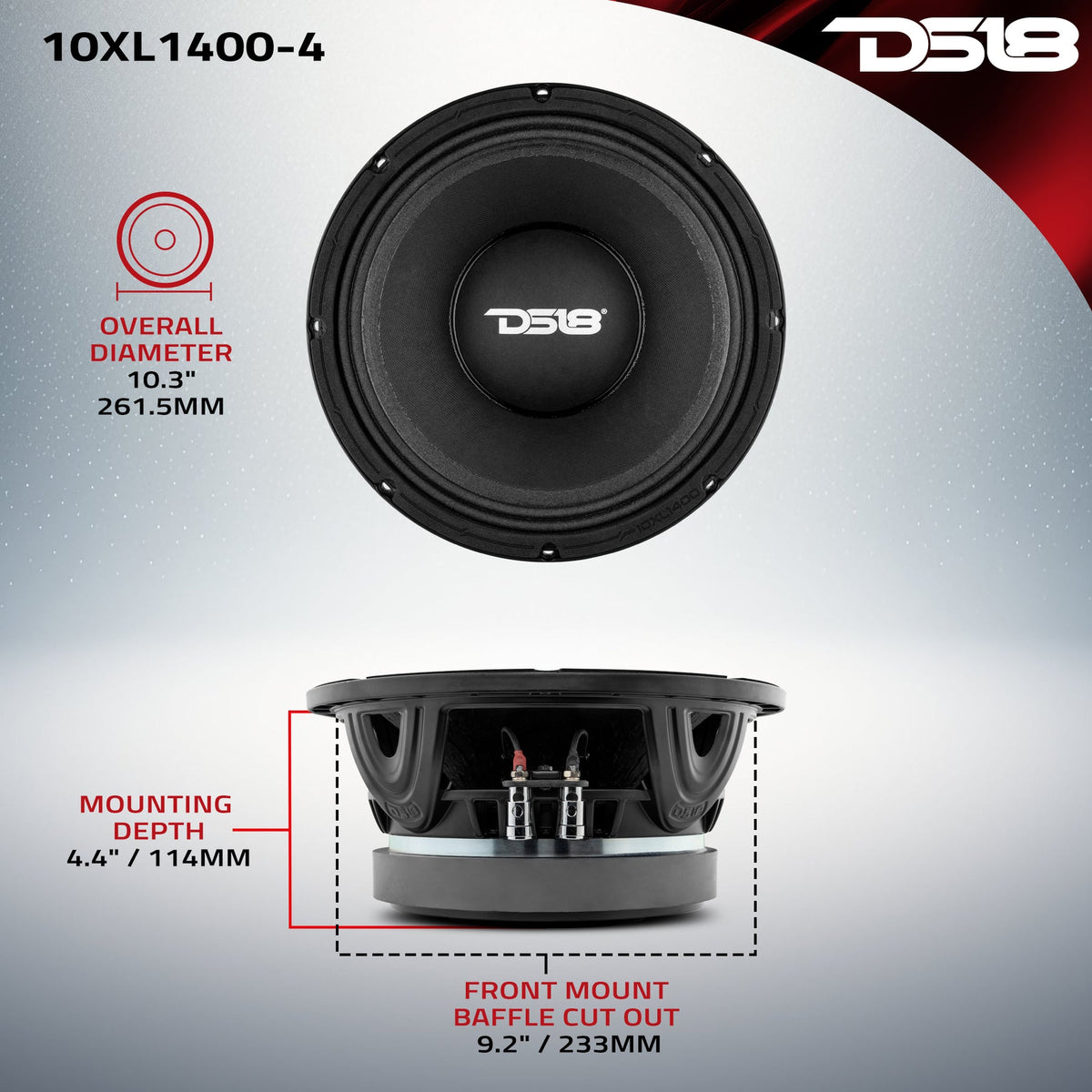

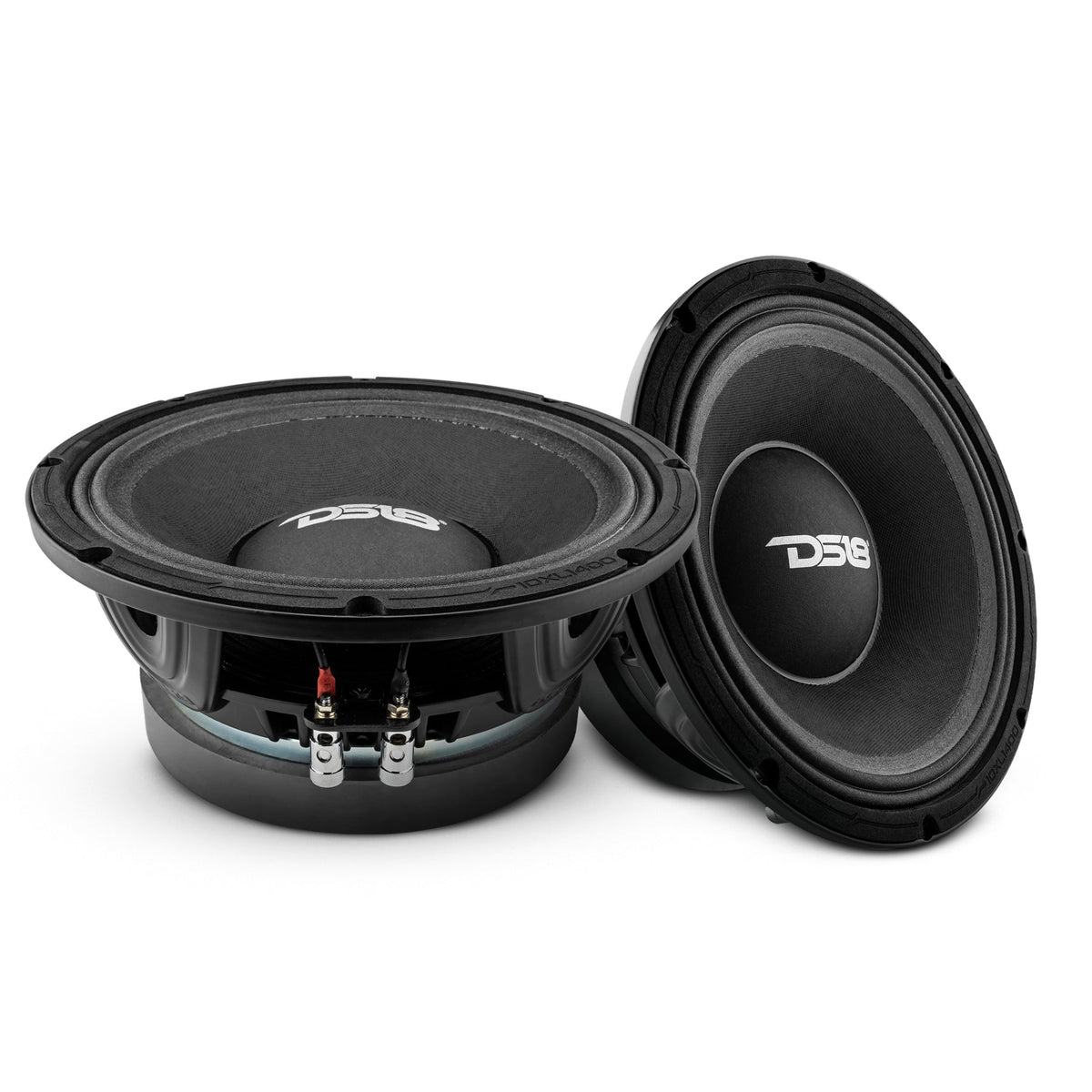

Sold individually. Grille not included. Pair photos are illustrative; this listing includes one speaker. Check the dimensional drawing and mounting clearance before ordering.
