The DS18 10XL1000N is a 10-inch XL midrange loudspeaker rated for 500W RMS and 1000W maximum power. This model has an 8-ohm voice coil.
Specifications
| SKU | 10XL1000N-8 |
|---|---|
| Nominal size | 10" |
| Impedance | 8 ohms |
| RMS power handling | 500 watts |
| Maximum power handling | 1000 watts |
| Sensitivity (1W/1m) | 101 dB |
| Frequency response | 80 Hz–5 kHz |
| Recommended high-pass crossover | 120 Hz |
| Voice coil | 3" / 76.2 mm |
| Voice-coil former | Kapton |
| Winding | CCAW |
| Magnet | Neodymium, 11 oz |
| Basket | Aluminum |
| Cone | Non-pressed paper |
| Surround | Cloth |
| Overall diameter | 261.5 mm |
| Overall depth | 129 mm |
| Baffle cutout | 233 mm |
| Mounting depth | 116 mm |
| Motor diameter | 131 mm |
Demodulating rings; 12 AWG push terminals.

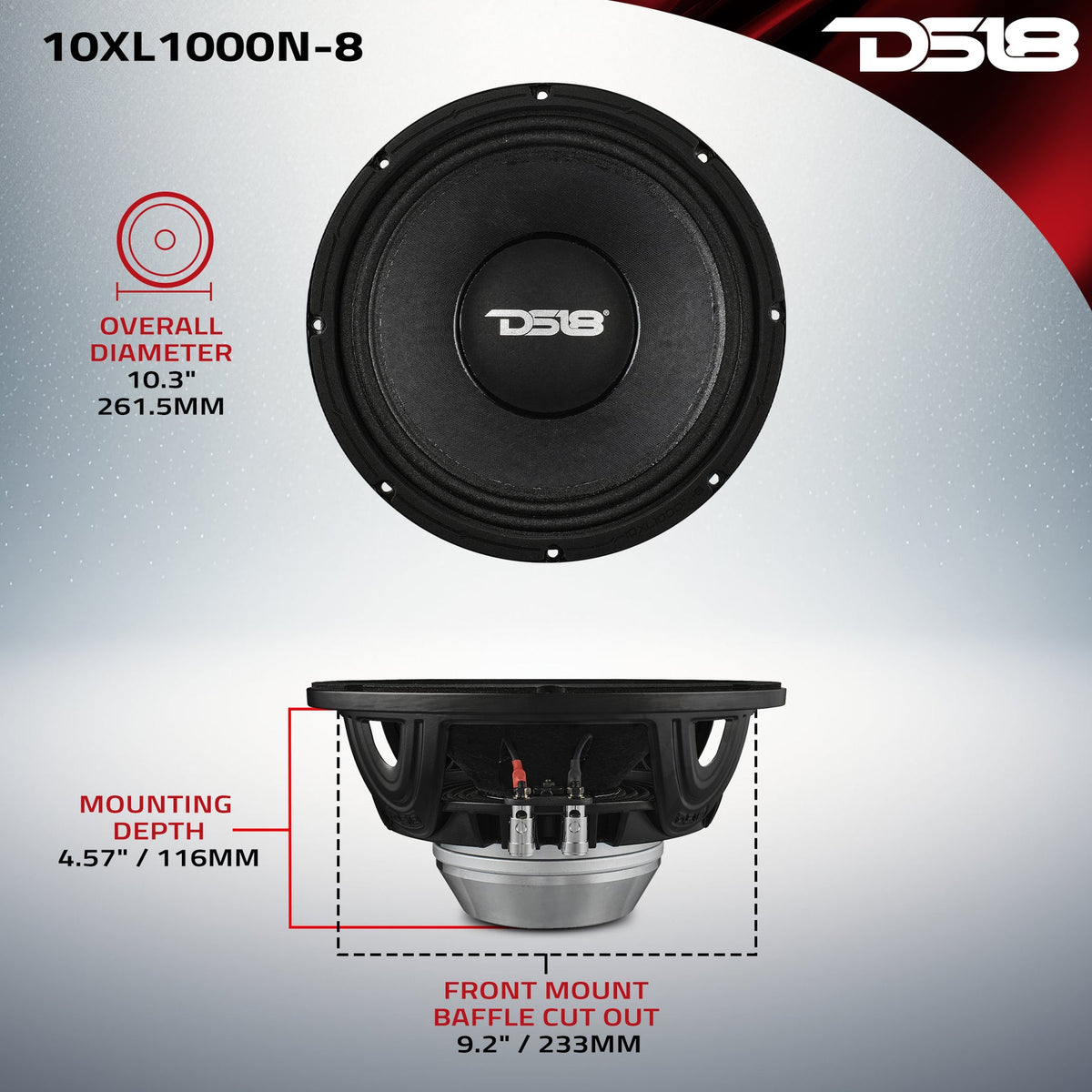

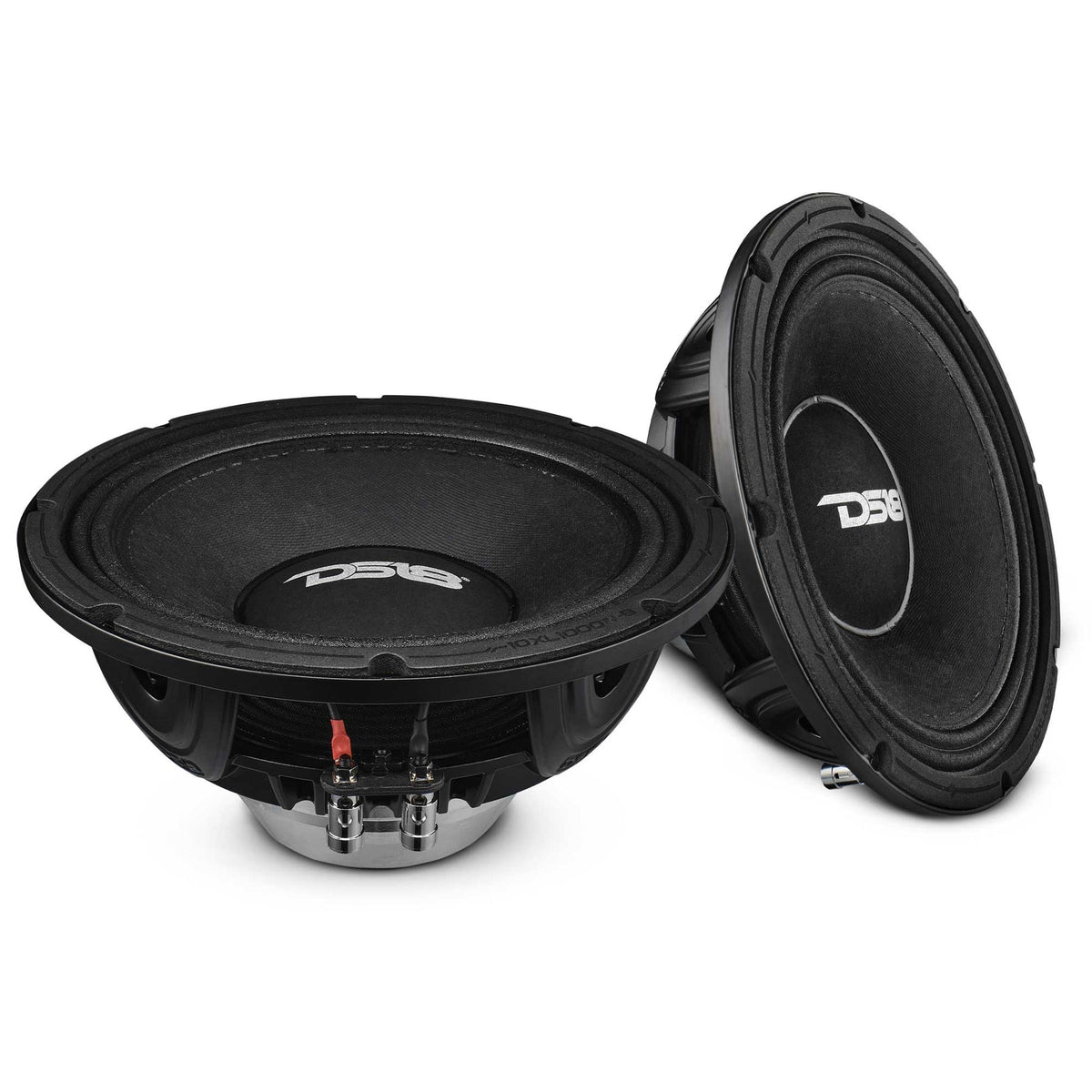

Sold individually. Grille not included. Pair photos are illustrative; this listing includes one speaker. Check the dimensional drawing and mounting clearance before ordering.
