DS18 10XL1000MB 10" Mid-Bass Speaker – 500W RMS
DS18 10XL1000MB 10" Mid-Bass Speaker – 500W RMS - 4 Ohms is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout
The DS18 10XL1000MB is a 10-inch XL mid-bass loudspeaker rated for 500W RMS and 1000W maximum power. Select the ohm load that matches your amplifier and wiring.
Specifications
| SKU | 10XL1000MB-4 / 10XL1000MB-8 |
|---|---|
| Nominal size | 10" |
| Impedance | 4 ohms or 8 ohms |
| RMS power handling | 500 watts |
| Maximum power handling | 1000 watts |
| Sensitivity (1W/1m) | 99.5 dB |
| Frequency response | 75 Hz–5 kHz |
| Recommended high-pass crossover | 100 Hz |
| Voice coil | 3" / 76 mm |
| Voice-coil former | Kapton |
| Winding | CCAW |
| Magnet | Ferrite, 80 oz |
| Basket | Aluminum |
| Cone | Paper |
| Surround | Cloth |
| Overall diameter | 261.5 mm |
| Overall depth | 120 mm |
| Baffle cutout | 233 mm |
| Mounting depth | 109 mm |
| Motor diameter | 190 mm |
Interleaved Sandwich Voice Coil (ISV), demodulating rings, and 8 AWG push terminals.

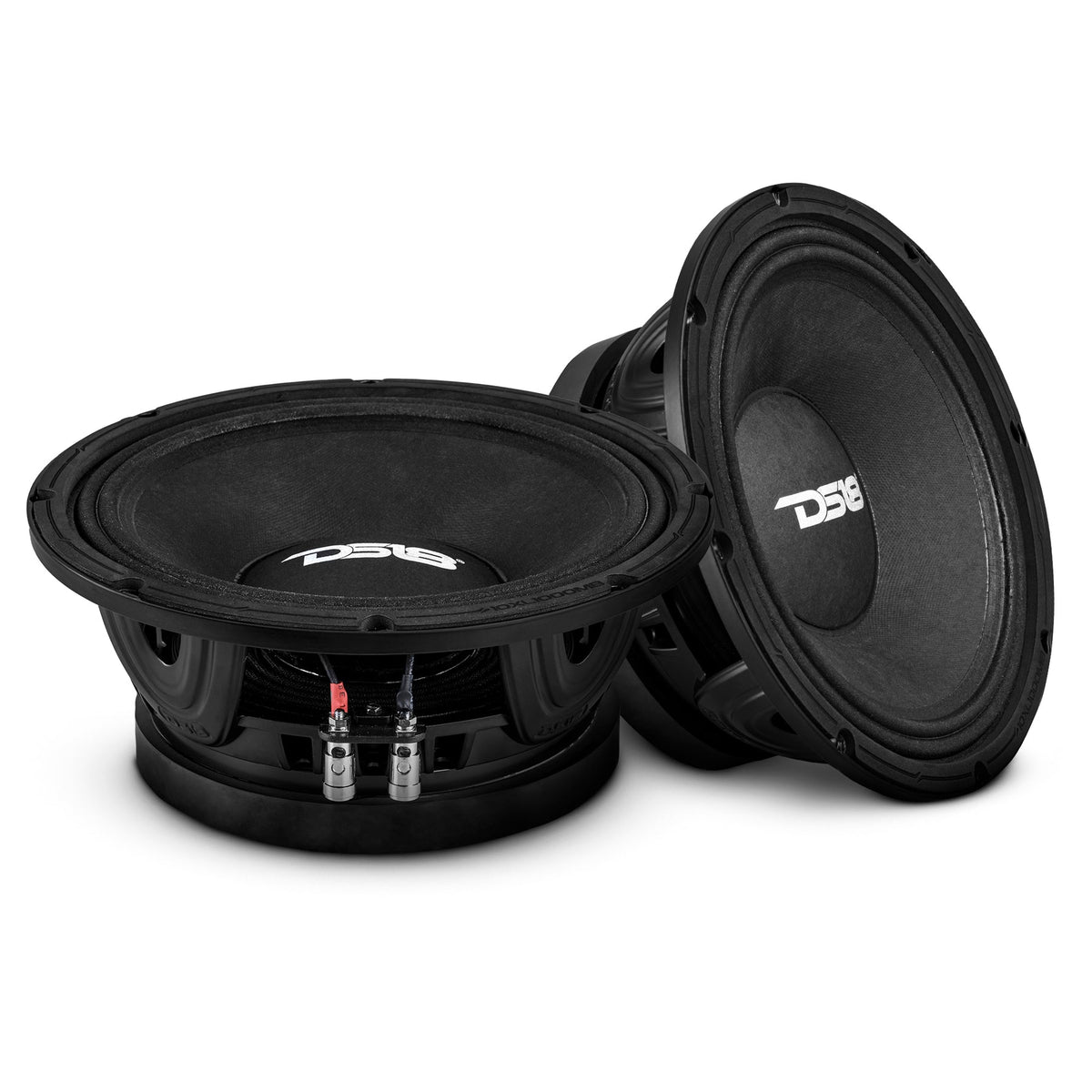

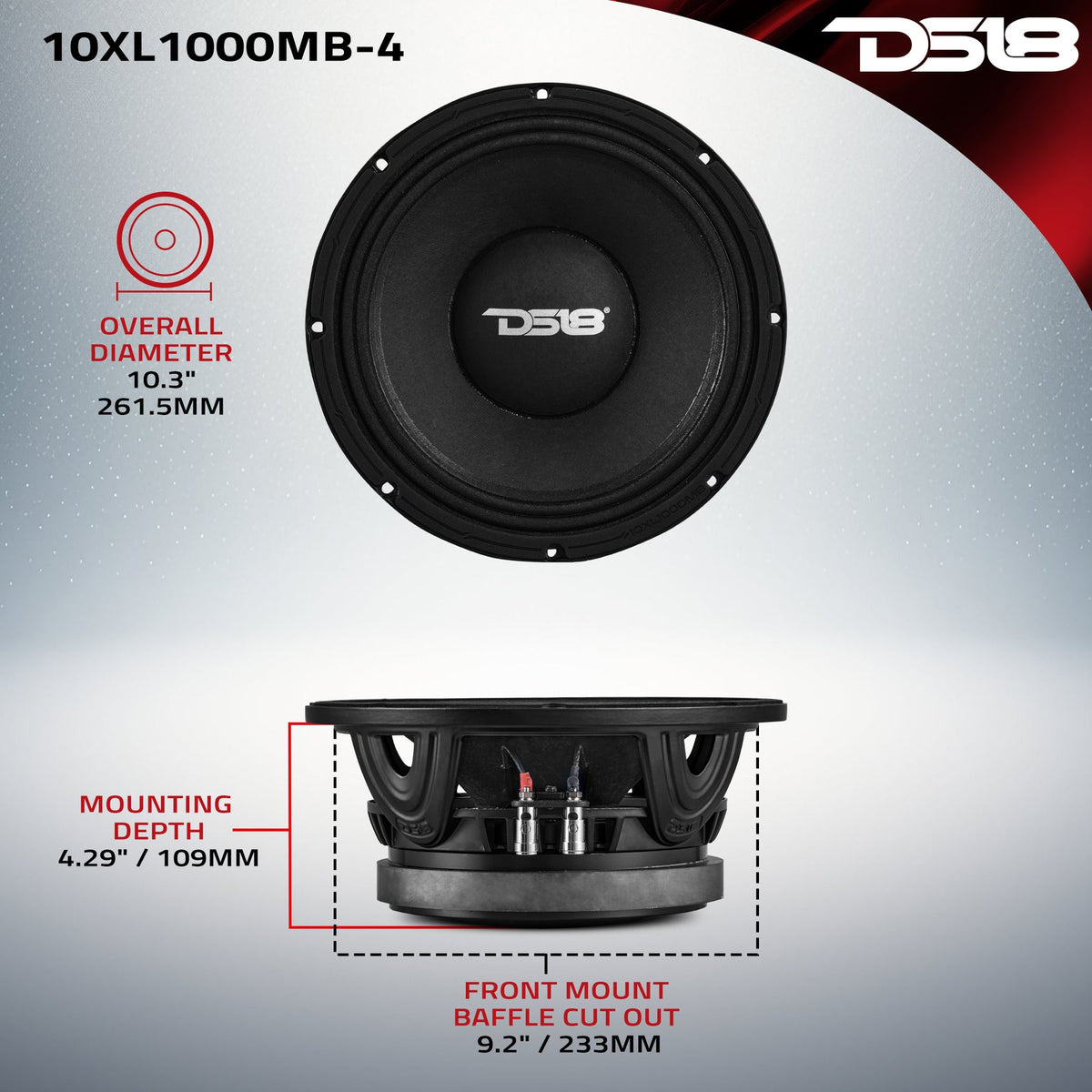

Sold individually. Grille not included. Pair photos are illustrative; this listing includes one speaker. Check the dimensional drawing and mounting clearance before ordering.
