Deaf Bonce Machete MLA-160.2 460W RMS 2-Channel Class D Full-Range Amplifier
Deaf Bonce Machete MLA-160.2 460W RMS 2-Channel Class D Full-Range Amplifier is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout

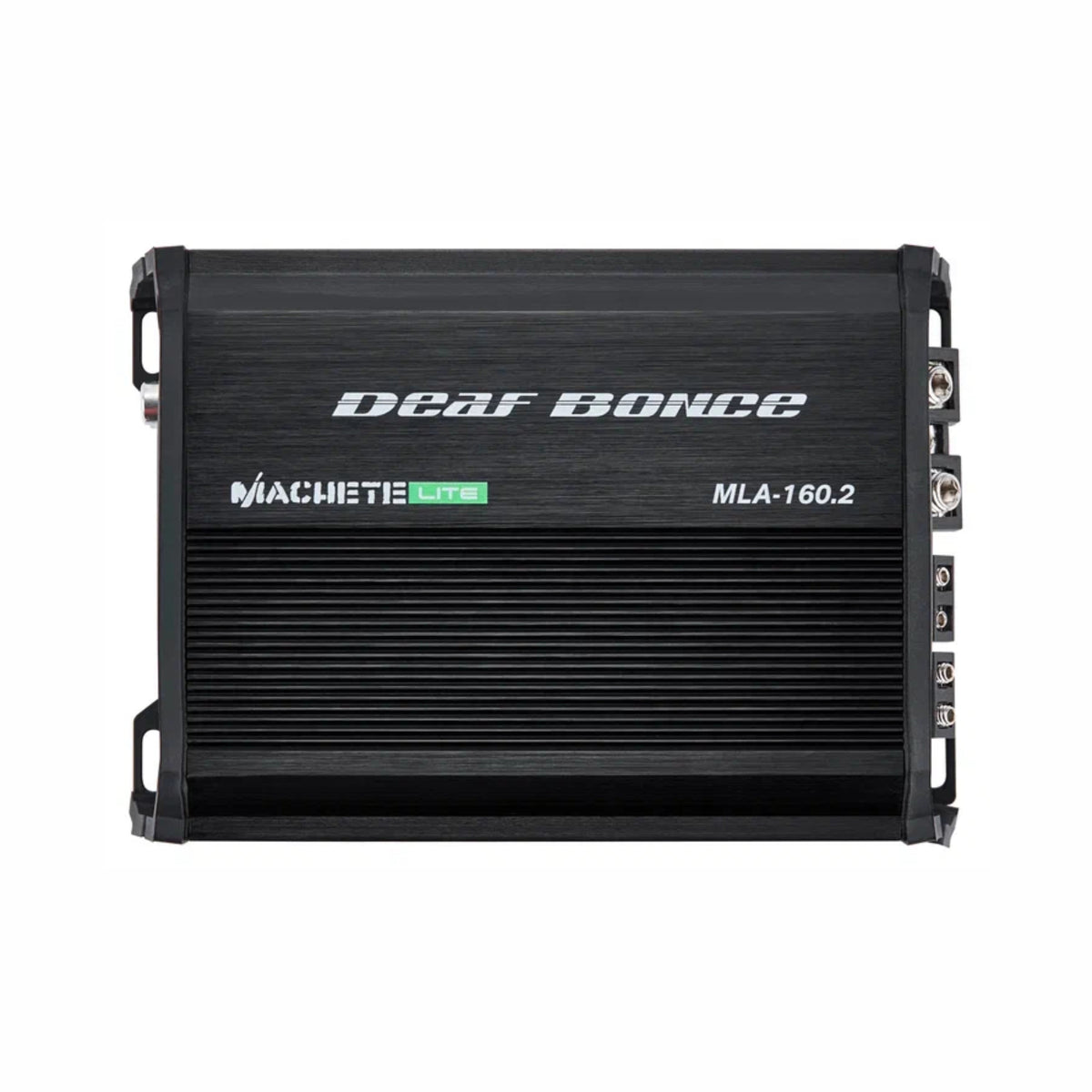

The Deaf Bonce Machete MLA-160.2 is a compact two-channel Class D full-range amplifier. It delivers 230W RMS per channel at 2 ohms for 460W total, or 160W per channel at 4 ohms. Bridge both channels for 460W RMS into a 4-ohm load.
Specifications
| Model / SKU | MLA-160.2 |
|---|---|
| Amplifier class / channels | Class D / 2 |
| RMS output at 4 ohms (14.4V) | 160W × 2 |
| RMS output at 2 ohms (14.4V) | 230W × 2 (460W total) |
| Bridged RMS output at 4 ohms | 460W × 1 |
| Minimum stereo load | 2 ohms per channel |
| Minimum bridged load | 4 ohms |
| Frequency response | 20 Hz–20 kHz |
| High-pass filter | 40–400 Hz |
| Low-pass filter | 40–400 Hz |
| Crossover slope | 12 dB/octave |
| Signal-to-noise ratio | ≥85 dB |
| Damping factor | ≥180 |
| Operating voltage | 9–15V |

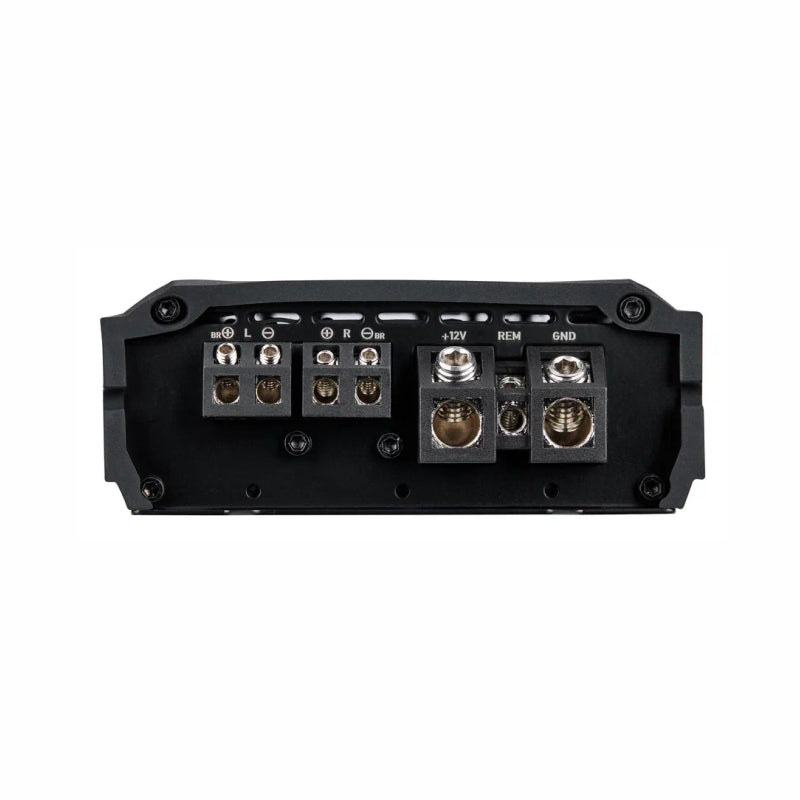

| Power input terminals | 4 AWG |
| Speaker output terminals | 8 AWG |
| Chassis dimensions | 6.38 × 4.37 × 1.72 in (162 × 111 × 43.6 mm) |
| Gross packaged weight | 2.43 lb / 1.10 kg |
Adjustable high-pass and low-pass crossovers support speaker and subwoofer installations. Use a minimum 4-ohm load when bridged.
