Deaf Bonce Car Audio 12 Subwoofer 5600 Watt Dual 2 Ohm VC Apocalypse 3012R-D2

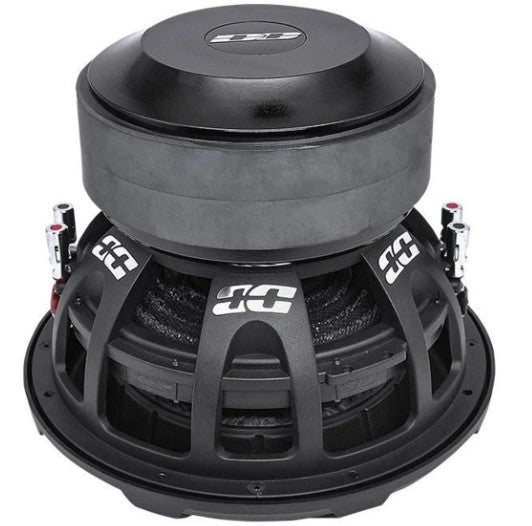

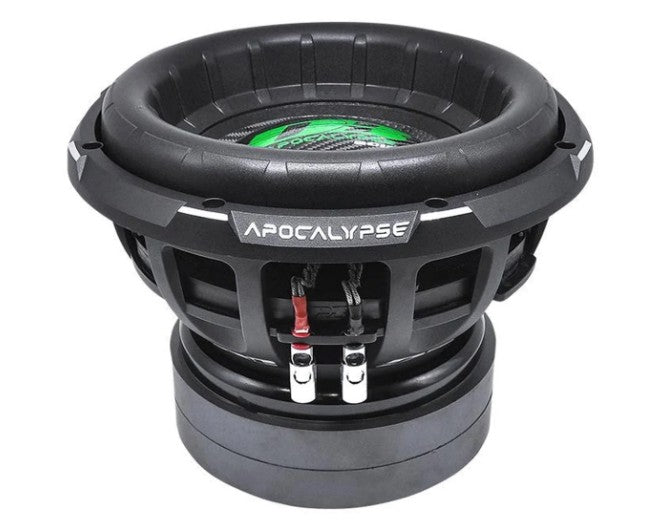

Deaf Bonce Apocalypse DB-3012R-D2 12" 5600W Dual 2 Ohm Competition Subwoofer

Key Features

• Extreme Power Handling – Handles up to 5600W MAX power and 2800W RMS, designed for high-performance SPL systems.

• Dual 2 Ohm Voice Coils – Flexible wiring options for powerful amplifier setups.

• Competition-Level Design – Built from the legendary Apocalypse DB-R series, used in multiple world-record SPL builds.

• High Overload Capacity – Engineered to operate continuously at high power levels in both daily and competition systems.

• Heavy-Duty Construction – Features an aluminum basket, large ferrite magnet, and reinforced cone for durability and deep bass output.

Product Description

The Deaf Bonce Apocalypse DB-3012R-D2 is a 12-inch competition subwoofer designed for extreme car audio systems. As part of the upgraded DB-R series, this subwoofer builds upon Deaf Bonce’s legendary championship lineup that has helped achieve multiple world SPL records.

With 2800 watts RMS power handling and 5600 watts MAX power, this subwoofer delivers powerful, deep bass with exceptional durability. It is engineered to handle continuous high power in daily systems and withstand extremely high short-term loads in competitive environments.

Constructed with a 3-inch voice coil, reinforced paper cone, foam surround, and aluminum frame, the DB-3012R-D2 provides excellent excursion, efficiency, and reliability for demanding audio setups.

Specifications

General

• Nominal Diameter: 12"

• Nominal Impedance: Dual 2 Ohm (2+2 Ohm)

• MAX Power Handling: 5600W

• RMS Power Handling: 2800W

• Sensitivity (1W/1M): 86.5 dB

Motor

• Voice Coil Diameter: 3"

• Cone Material: Paper

• Surround Material: Foam

• Frame Material: Aluminum

• Basket Color: Black

• Magnet Material: Ferrite

Thiele & Small Parameters

• Vas: 30.20 L

• Xmax: 19 mm

• Fs: 33.8 Hz

• Qts: 0.43

• BL: 26

Dimensions

• Cutout Diameter: 11.18 in (284 mm)

• Mounting Depth: 8.82 in (224 mm)

• Unit Weight: 61.51 lbs (27.9 kg)

Important Notice

These subwoofers are not covered by warranty in case of failure. Repairs can only be performed using recone kits. Damage caused by misuse, overpowering, or improper installation is not covered. Proper installation and handling are strongly recommended.
