Audiopipe | SKU:
Audiopipe DSP
Regular price
$216.95
Unit price
Audiopipe DSP is backordered and will ship as soon as it is back in stock.
Pickup available at Serious Innovations Clifton Location
Usually ready in 5+ days
Audiopipe DSP
Regular price
$216.95
Unit price
Audiopipe DSP is backordered and will ship as soon as it is back in stock.
Description
Description

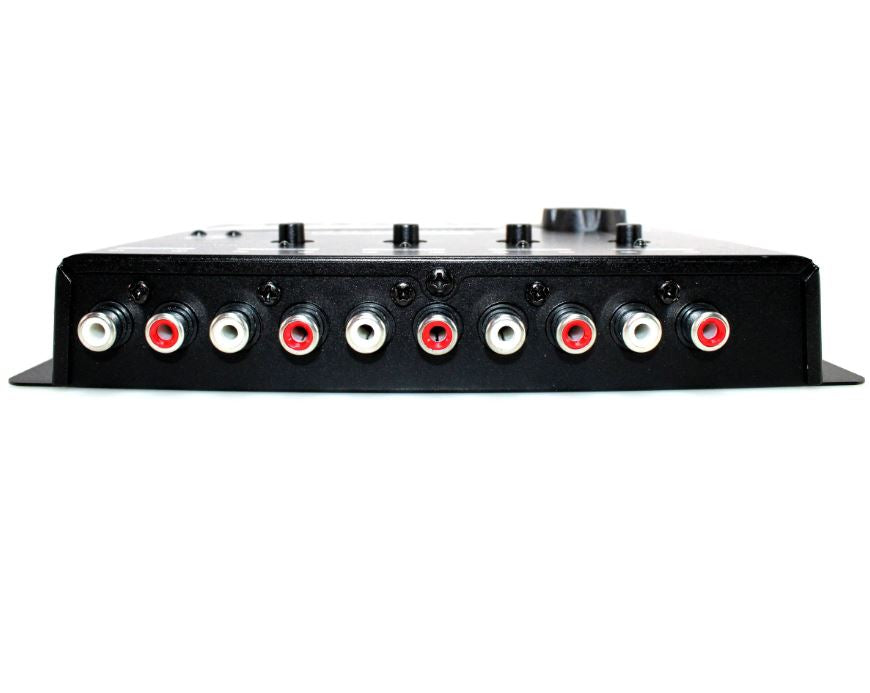

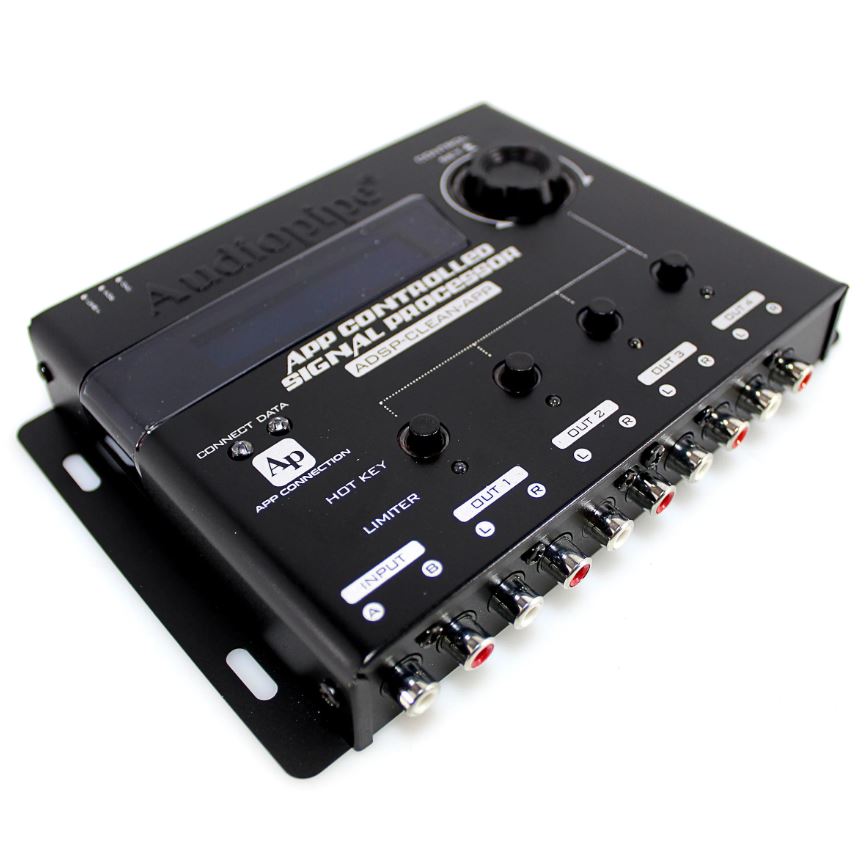

Audiopipe DSP 12 Band 4 Output BT Graphic EQ Crossover Digital Signal Processor
For nearly two decades, Audiopipe has been a pioneer and leader in high performance audio equipment. Whether you are a competitor or audio enthusiast, our products are guaranteed to deliver reliable performance for a stunning audio experience.
Mobile App Controlled Digital Signal Processor
Increase the sound quality of your sound system using optimized audio processing and achieve complete audio customization for application specific installations with real time signal processing for ultimate control and customization of your sound.

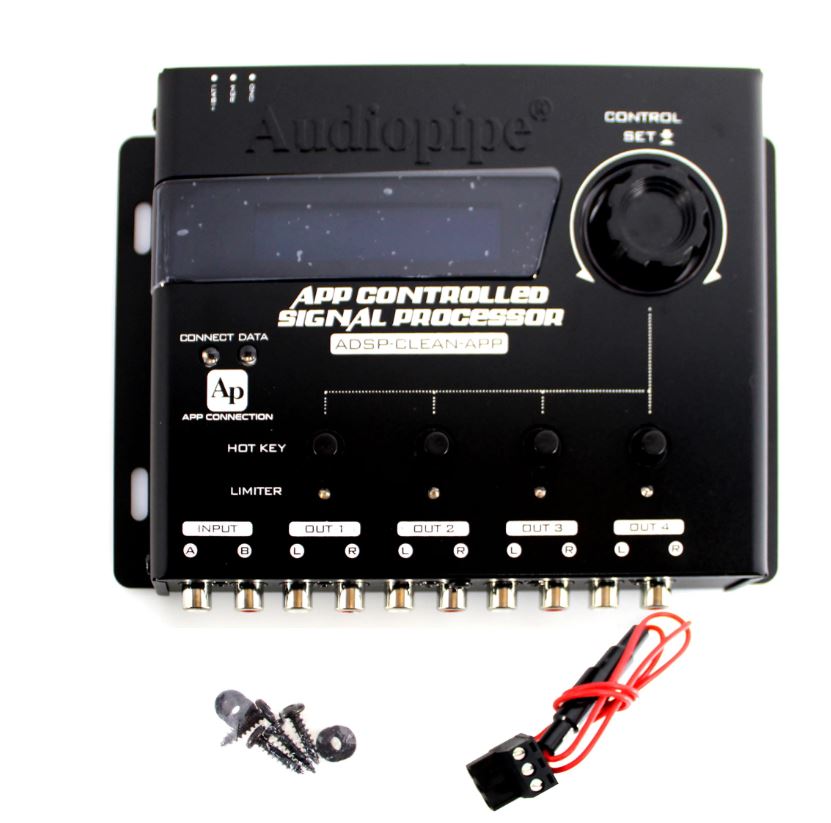

This listing includes:
(1) Audiopipe DSP Digital Signal Processor Equalizer Crossover 4Ch 12 Band Car Audio
(4) Installation Screws
(1) Connector
Features:
Use the built-in knob or encoder with the LCD screen to adjust the settings. Or download our new Audiopipe DSP Mobile Application on your IOS or Android device and connect via Bluetooth to the Audiopipe DSP App on your phone.
Input and Output Processing
-12 Band Graphic Equalizer
-Tone Generator
-Precisely Define the Cutoff and Attenuation Frequencies
-Measures real-time battery voltage at push of a button.
-Master mute function at the push of a button
-Specifications:
-Inputs: 1 RCA
-Outputs: 4 RCA
-Input Impedance: 10K
-Output Impedance: 47 Ohms
-Signal to Noise Ratio: >90dB
-Total Harmonic Distortion (THD): <0.01%
-Channel Separation: >80dB
-Frequency Response: 10Hz - 22,000Hz
-Tone generator: Freq: 10 ? 22,000Hz, Gain 0 at -60dB
-Frequency Sweep: 10 to 22,000Hz, Gain: 0 at -60dB, 3 Sweep Speeds
Common Controls:
-Master Level (Volume Control): 0-100%
-Graphic Equalizer: 12 bands at 2/3 Octave, Boost ? 12dB
-Presets: 12 presets
-Input Parametric Equalizer: Freq: 10 ? 22,000Hz, Gain: -12 to +12db, Q: 0.4 to 10
Controls for the 4 Outputs:
-Routing: A, A+B, B
-Output Parametric Equalizer: Freq: 10 ? 22,000Hz, Gain: -12 to +12db, Q: 0.4 to 10
-Crossover: Freq: 10 ? 22,000Hz, Attenuation: BW 12,18,24 db/8th and LR
12,24,36,48 db/8th
-Delay: 0 to 8ms (0 to 275cm)
-Phase: 0? to 180?
-Limiter: Threshold: 0 to -24db, Attack: 0.1 to 100ms, Release: 1 to 1600ms.
-Output Gain: -45 to +15db
-Mute: ON-OFF
Presets:
-Memory: 1 to 5
Security:
-Block/Unblock: Password: 4 Alpha Numeric Character
-Factory Reset: Yes
Language: English / Spanish
Technical Specifications:
-Input Impedance: 10 K
-Output Impedance: 47 Ohms
-Signal to Noise Ratio: >90db
-Total Harmonic Distortion (THD) : <0.01%
-Channel Separation: >80db
-Frequency Response: 10Hz to 22,000Hz
-Input Voltage: 5.6 Vpp
-Max. Output Voltage: 5.6 Vpp
-Current Consuption: 360 mA at 12.5V
Package Dimension in inches:
-Length: 7.25?
-Width: 9?
-Height: 2.5?
-Weight in pounds: 1.75 lbs
Item Dimension in inches:
-Length: 5.5?
-Width: 7.5?
-Height: 1.5?
-Weight in pounds: 1.5 lbs
For nearly two decades, Audiopipe has been a pioneer and leader in high performance audio equipment. Whether you are a competitor or audio enthusiast, our products are guaranteed to deliver reliable performance for a stunning audio experience.
Mobile App Controlled Digital Signal Processor
Increase the sound quality of your sound system using optimized audio processing and achieve complete audio customization for application specific installations with real time signal processing for ultimate control and customization of your sound.
This listing includes:
(1) Audiopipe DSP Digital Signal Processor Equalizer Crossover 4Ch 12 Band Car Audio
(4) Installation Screws
(1) Connector
Features:
Use the built-in knob or encoder with the LCD screen to adjust the settings. Or download our new Audiopipe DSP Mobile Application on your IOS or Android device and connect via Bluetooth to the Audiopipe DSP App on your phone.
Input and Output Processing
-12 Band Graphic Equalizer
-Tone Generator
-Precisely Define the Cutoff and Attenuation Frequencies
-Measures real-time battery voltage at push of a button.
-Master mute function at the push of a button
-Specifications:
-Inputs: 1 RCA
-Outputs: 4 RCA
-Input Impedance: 10K
-Output Impedance: 47 Ohms
-Signal to Noise Ratio: >90dB
-Total Harmonic Distortion (THD): <0.01%
-Channel Separation: >80dB
-Frequency Response: 10Hz - 22,000Hz
-Tone generator: Freq: 10 ? 22,000Hz, Gain 0 at -60dB
-Frequency Sweep: 10 to 22,000Hz, Gain: 0 at -60dB, 3 Sweep Speeds
Common Controls:
-Master Level (Volume Control): 0-100%
-Graphic Equalizer: 12 bands at 2/3 Octave, Boost ? 12dB
-Presets: 12 presets
-Input Parametric Equalizer: Freq: 10 ? 22,000Hz, Gain: -12 to +12db, Q: 0.4 to 10
Controls for the 4 Outputs:
-Routing: A, A+B, B
-Output Parametric Equalizer: Freq: 10 ? 22,000Hz, Gain: -12 to +12db, Q: 0.4 to 10
-Crossover: Freq: 10 ? 22,000Hz, Attenuation: BW 12,18,24 db/8th and LR
12,24,36,48 db/8th
-Delay: 0 to 8ms (0 to 275cm)
-Phase: 0? to 180?
-Limiter: Threshold: 0 to -24db, Attack: 0.1 to 100ms, Release: 1 to 1600ms.
-Output Gain: -45 to +15db
-Mute: ON-OFF
Presets:
-Memory: 1 to 5
Security:
-Block/Unblock: Password: 4 Alpha Numeric Character
-Factory Reset: Yes
Language: English / Spanish
Technical Specifications:
-Input Impedance: 10 K
-Output Impedance: 47 Ohms
-Signal to Noise Ratio: >90db
-Total Harmonic Distortion (THD) : <0.01%
-Channel Separation: >80db
-Frequency Response: 10Hz to 22,000Hz
-Input Voltage: 5.6 Vpp
-Max. Output Voltage: 5.6 Vpp
-Current Consuption: 360 mA at 12.5V
Package Dimension in inches:
-Length: 7.25?
-Width: 9?
-Height: 2.5?
-Weight in pounds: 1.75 lbs
Item Dimension in inches:
-Length: 5.5?
-Width: 7.5?
-Height: 1.5?
-Weight in pounds: 1.5 lbs
