6-Channel High-to-Low Line Output Converter with Remote/Automatic Turn-On MTLOC6

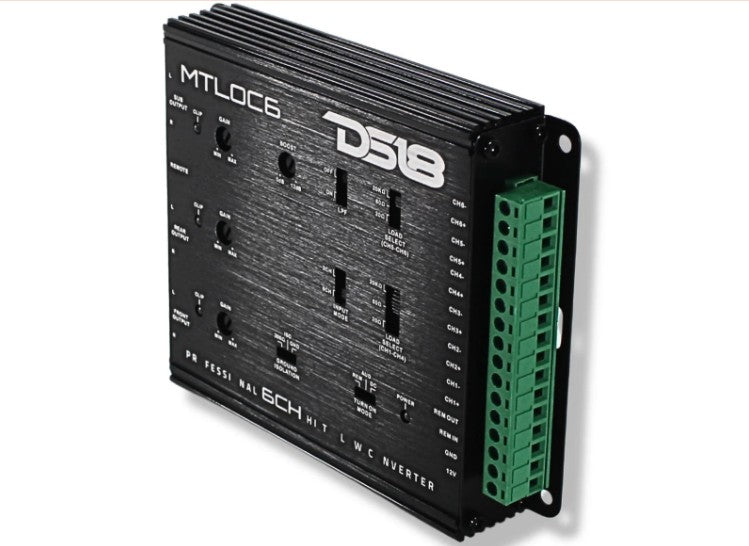

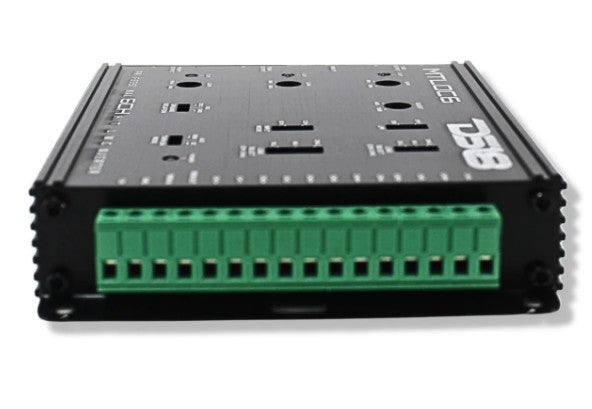

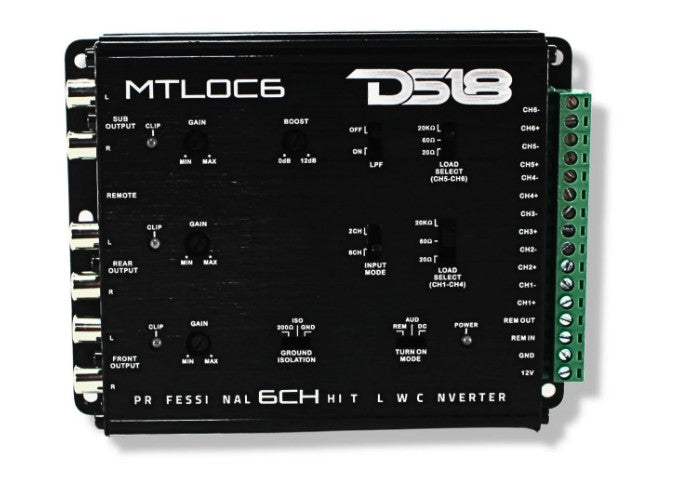

DS18 MTLOC6 6-Channel High-to-Low Line Output Converter with Remote & Automatic Turn-On

Enhance your factory audio system while maintaining your original head unit with the DS18 MTLOC6 6-Channel Line Output Converter. Designed for seamless OEM integration, this converter transforms factory speaker-level signals into clean RCA low-level outputs, allowing effortless connection to aftermarket amplifiers.

Built for performance and flexibility, the MTLOC6 supports multiple impedance settings and selectable input modes, ensuring compatibility with a wide range of factory stereo systems. Advanced automatic turn-on options simplify installation by activating amplifiers through audio signal detection, DC offset, or remote wire connection.

Its durable anodized aluminum chassis provides excellent noise rejection and thermal protection, helping deliver consistent, distortion-free audio performance.

Key Features

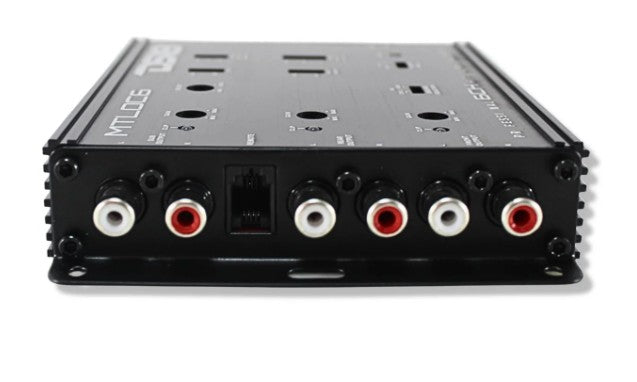

• Converts up to six factory speaker outputs into six RCA low-level signals

• Selectable 2-channel or 6-channel input modes

• Adjustable input impedance: 20 / 60 / 20k ohms

• Automatic amplifier turn-on via audio sensing, DC offset, or remote wire

• Durable anodized aluminum housing with noise and ground isolation

• Dash-mounted remote level control

• LED power and clip indicators

• Adjustable bass boost (0–12dB) for enhanced low-frequency response

Package Includes

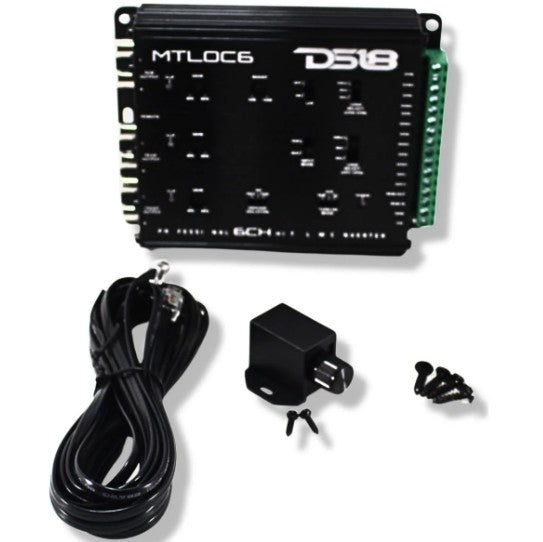

• (1) MTLOC6 6-Channel Line Output Converter

Technical Specifications

• Maximum Speaker Level Input: Up to 40V (400W RMS)

• Maximum Preamp Output: Up to 11V

• Conversion Ratio: 4:1

• Frequency Response: 10Hz – 20kHz

• Total Harmonic Distortion: ≤ 0.01%

• Signal-to-Noise Ratio: >110dB

• Input Impedance: Selectable 20 / 60 / 20k ohms

• Output Impedance: 100 ohms

• Power Consumption: 230mA

• Recommended Fuse Rating: 1A

The DS18 MTLOC6 delivers clean signal conversion, flexible installation options, and precise audio control — making it an ideal solution for upgrading factory sound systems with aftermarket amplification.
