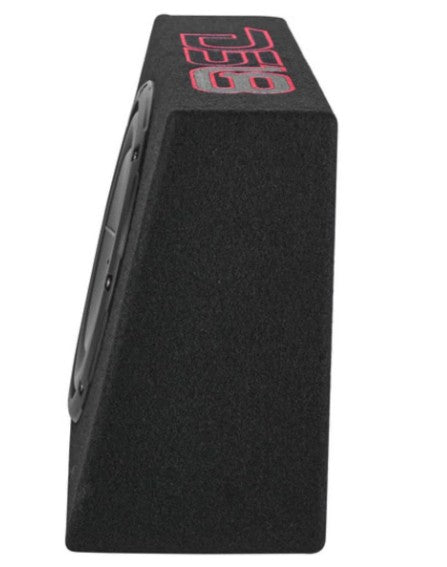

10" 350 W RMS Shallow Subwoofer Powered Enclosure w Remote DS18 PU110A

DS18 PU110A 10" Powered Shallow Subwoofer Enclosure 350W RMS w/ Remote

Key Features

• All-in-One Bass Solution – Built-in Class D monoblock amplifier + 10” shallow subwoofer delivering 350W RMS / 700W MAX.

• Truck-Friendly Slim Design – Compact sealed enclosure fits easily under or behind seats, perfect for pickups and tight spaces.

• Smart Connectivity – Includes high & low-level inputs, RCA pass-through, and auto turn-on, eliminating the need for a REM wire.

• Tuned for Deep Bass – Frequency response 30Hz – 250Hz with a -3dB point at 45Hz for accurate, punchy low-end.

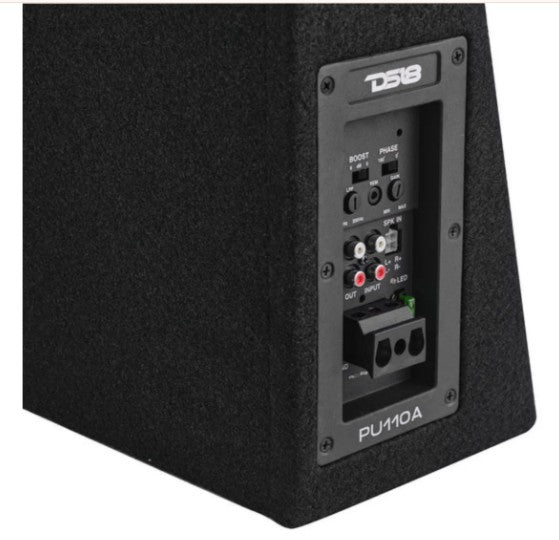

• Easy Installation – Features quick-connect terminals, included wiring harness, and remote bass control knob.

• Advanced Protection – Built-in protection against thermal, overload, short circuit, and voltage issues.

Product Description

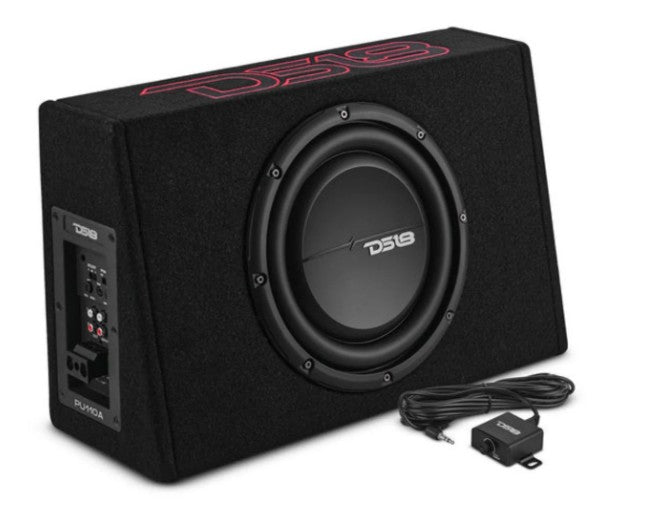

The DS18 PU110A Powered Subwoofer Enclosure is a complete plug-and-play bass solution designed for trucks and compact spaces. Combining a 10-inch shallow-mount subwoofer with a built-in Class D monoblock amplifier, this system delivers 350 watts RMS and 700 watts peak power for deep, dynamic bass without taking up valuable space.

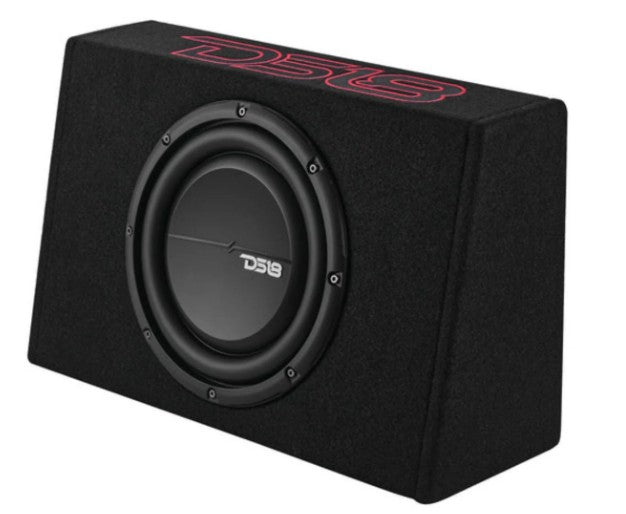

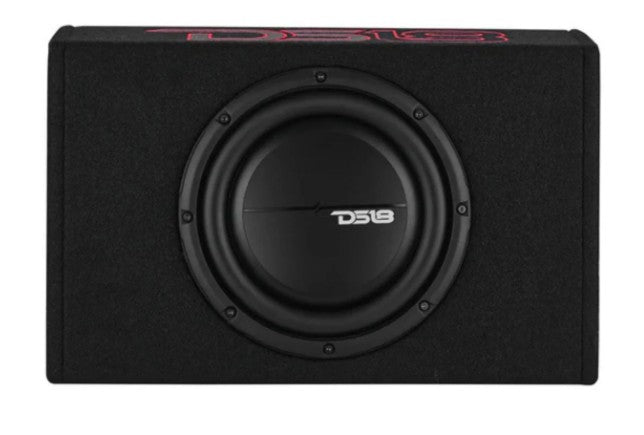

Its slim sealed enclosure (0.48 cu.ft) is engineered for tight, controlled bass, tuned to 45Hz (-3dB) for smooth low-frequency response from 30Hz to 250Hz. Perfect for under-seat or behind-seat installations, especially in pickup trucks.

Designed for convenience, the PU110A includes high-level inputs with auto turn-on, eliminating the need for a remote wire, along with RCA pass-through outputs for easy system expansion. The included wired remote bass knob allows you to adjust bass levels on the fly.

With durable construction, efficient performance, and built-in protection features, the PU110A is the perfect upgrade for anyone looking to add powerful bass quickly and easily.

What’s Included

• (1) DS18 PU110A 10" Amplified Subwoofer Enclosure

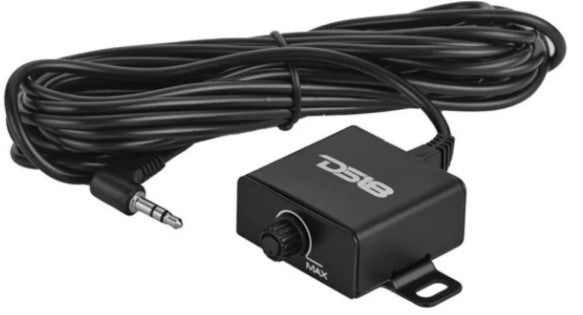

• (1) Wired Remote Bass Control

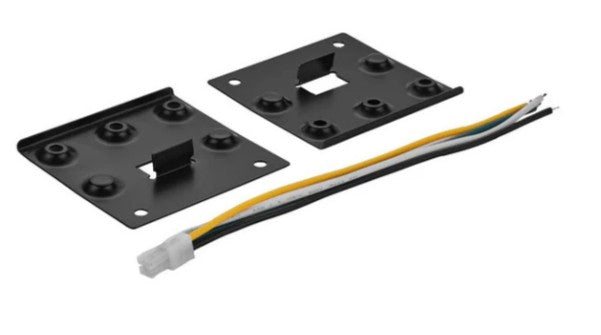

• (1) Power & Signal Harness with Quick Connector

• (1) User Manual

Subwoofer Specifications

• Size: 10" (261 mm)

• RMS Power: 350W

• MAX Power: 700W

• Impedance: 2 Ohm

• Sensitivity: 85 dB

• Frequency Response: 30Hz – 250Hz

• Voice Coil: 1.5" Aluminum

• Cone Material: IPP

• Surround: Rubber

• Basket: Steel

• Magnet: 40 oz Ferrite

Amplifier Specifications

• Class: Digital Class D

• Type: Monoblock

• Minimum Impedance: 2 Ohm

• Signal-to-Noise Ratio: 75 dB

• THD: 0.30%

• Low-Level Input: 0.1 – 0.6V

• High-Level Input: Yes (Auto Turn-On)

• Crossover: LPF Fixed (50 – 200 Hz)

• Bass Boost: 0 – 6 dB @ 50Hz

• Phase Control: 0 – 180°

• Fuse: 30A

• Power Input: 8GA Quick Connector

• RCA Pass-Through: Yes

Protection Features

• Thermal Protection

• Overload Protection

• Short Circuit Protection

• DC Output Protection

• Voltage Protection (<9V / >16V)

Enclosure Specifications

• Type: Sealed

• Internal Volume: 0.48 ft³ (13 L)

• Material: 5/8" MDF

• Finish: Black Carpet

• -3dB Point: 45 Hz

Dimensions

• Height: 12"

• Width: 20"

• Top Depth: 4.25"

• Bottom Depth: 7"
