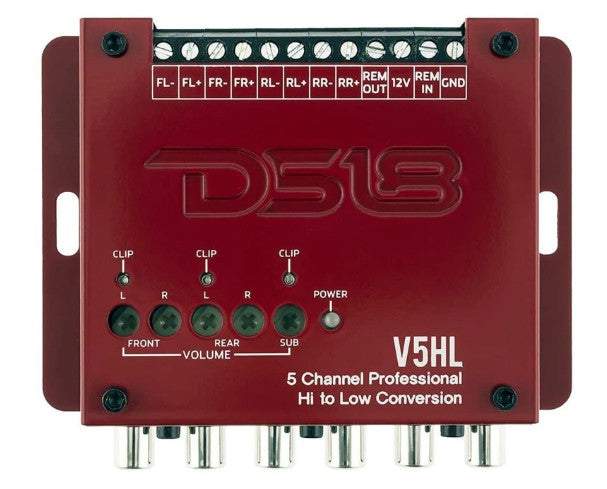

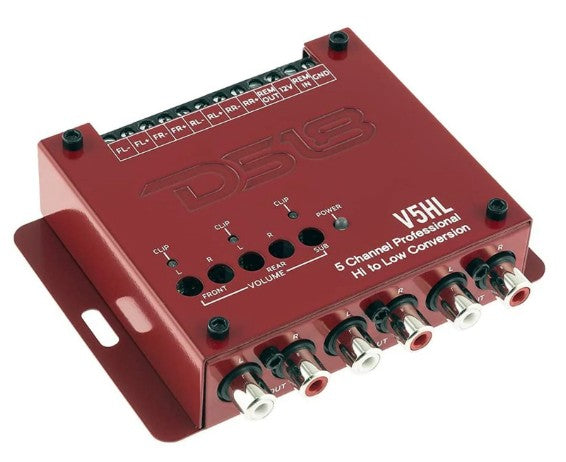

DS18 V5HL 5-Channel Hi/Lo Line Output Converter with Remote Trigger

DS18 V5HL 5-Channel Hi/Lo Line Output Converter with Remote Trigger

Easily integrate aftermarket amplifiers into your factory audio system with the DS18 V5HL 5-Channel Hi/Lo Converter. Designed for seamless OEM compatibility, this converter transforms high-level speaker signals into clean RCA low-level outputs, allowing you to upgrade your sound system without replacing the original head unit.

The V5HL features a versatile 5-channel configuration, including dedicated subwoofer output support, making it ideal for complete system upgrades. Built with advanced surface-mount technology and a durable double-sided FR4 PCB board, it ensures stable signal conversion, reduced noise interference, and consistent audio performance.

An integrated signal-sensing remote trigger automatically powers connected amplifiers when audio is detected, simplifying installation while improving system reliability.

Key Features

• Converts factory speaker-level signals to RCA outputs for aftermarket amplifiers

• 5-channel design with dedicated subwoofer connection

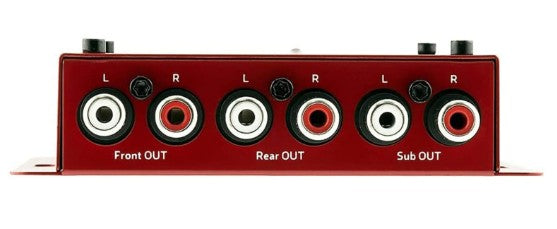

• 4-channel high-level input with 5-channel RCA output

• Remote trigger output with automatic signal sensing

• Surface Mount Component Technology for improved reliability

• Double-sided FR4 PCB construction for enhanced signal stability

• Low impedance design with advanced power filtering

• Power and clipping LED indicators

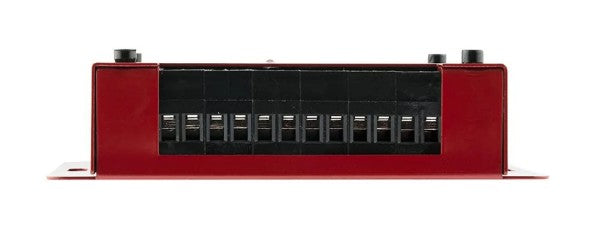

• Direct insert power and speaker terminal connections

Package Includes

• (1) DS18 V5HL Hi/Lo Line Output Converter

Technical Specifications

• Model: V5HL

• Operating Voltage: +12V

• Input Sensitivity: 0.1 – 16V

• Maximum RCA Output: 4V

• Frequency Response: 10Hz – 30kHz

• Input Impedance: 20K Ohms

• Standby Current: 200 mA

Dimensions

• Length: 109 mm

• Width: 88 mm

The DS18 V5HL is an efficient and cost-effective solution for upgrading factory audio systems while maintaining clean signal quality and reliable amplifier integration.
