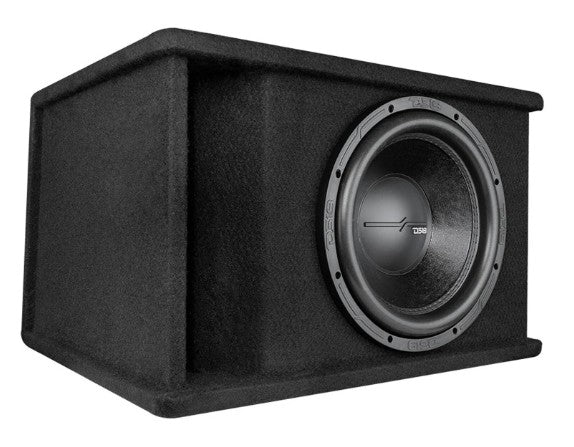

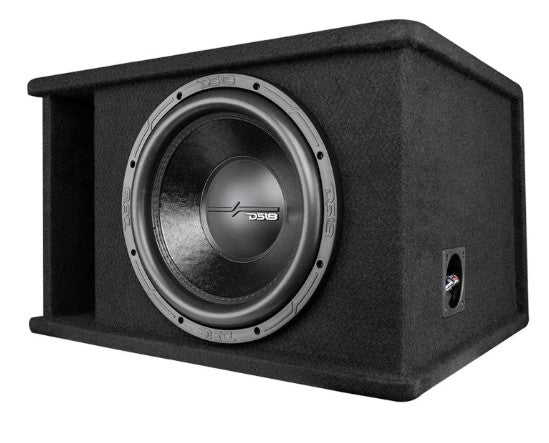

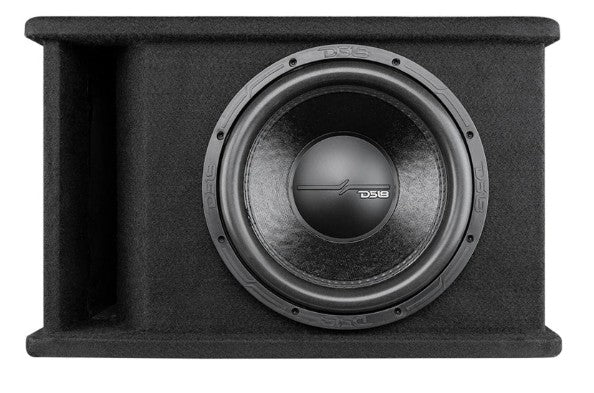

DS18 12" 1 Ohm Subwoofer 1600 Watt Loaded In a Ported Box ZR112LD

DS18 ZR112LD 12” Loaded Subwoofer Box 1600W MAX 800W RMS 1-Ohm Ported Enclosure

Key Features

• Complete Bass Package – Includes 12” DS18 ZR12.2D subwoofer preloaded in a ported box.
• Powerful Output – Handles 800W RMS / 1600W MAX for deep, hard-hitting bass.
• 1-Ohm Final Impedance – Wired in parallel for maximum amplifier efficiency.
• Ported Box Tuned to 29Hz – Delivers low, aggressive bass response.
• Durable Construction – Built with 3/4" MDF and finished in black carpet with DS18 styling.
• Plug & Play Solution – Ready to install and perfect for quick upgrades.

Product Description

Upgrade your sound system effortlessly with the DS18 ZR112LD Loaded Subwoofer Enclosure—a complete bass solution designed for maximum impact and easy installation.

This package includes a 12” ZR12.2D subwoofer, one of DS18’s best sellers, pre-installed in a precision-tuned ported box (29Hz). The result? Deep, clean, and aggressive bass that transforms your listening experience.

The subwoofer features a dual 2-ohm voice coil wired in parallel, delivering a final 1-ohm load—perfect for getting the most power out of your amplifier.

Constructed from high-quality 3/4" MDF, the enclosure ensures durability and optimal acoustic performance, while the black carpet finish with DS18 branding adds a clean, professional look.

For best results, pair this system with a 1000W RMS monoblock amplifier (like the DS18 ZR1000.1D) to unlock its full potential.

What’s Included

• (1) DS18 ZR112LD Loaded Subwoofer Enclosure (12”)

System Specifications

• Total RMS Power: 800W
• Total MAX Power: 1600W
• Final Impedance: 1 Ohm
• Frequency Response: 20Hz – 200Hz
• Sensitivity: 84 dB
• Recommended LPF: 70Hz

Subwoofer Specifications

• Size: 12”
• Voice Coil: Dual 2 Ohm (DVC)
• Voice Coil Diameter: 2.5"
• Voice Coil Material: Copper
• Cone Material: Non-Pressed Paper
• Surround: Foam
• Basket: Steel
• Magnet: Ferrite (100 oz)
• Mounting Depth: 6.6"
• Xmax: 25mm

Enclosure Specifications

• Type: Ported
• Internal Volume: 2.8 ft³ (79.3L)
• Tuning Frequency: 29 Hz
• Material: 3/4" (19mm) MDF
• Finish: Black Carpet
• -3dB Point: 24 Hz
