ALP4 Air Management, 1/4" Air Line (No Tank, No Compressor)

The ALP4 Air Management System from Air Lift Performance sets a new benchmark for precision air suspension control. Combining advanced hardware with intelligent software, ALP4 delivers faster response, cleaner installation, and expanded customization in one streamlined platform.

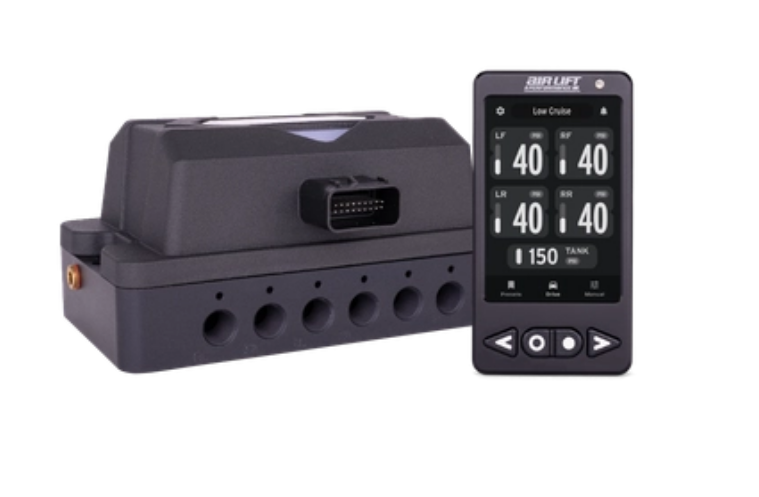

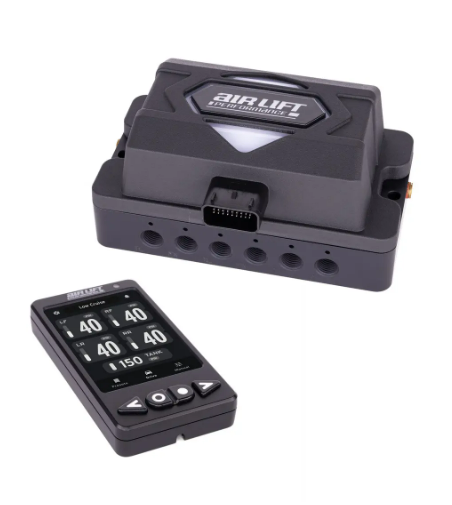

At the heart of the system is a compact, all-in-one manifold precision-machined from anodized black billet aluminum. The ECU, solenoids, and pressure sensors are fully integrated into the manifold, reducing wiring complexity and minimizing potential failure points while maintaining a sleek, show-ready appearance.

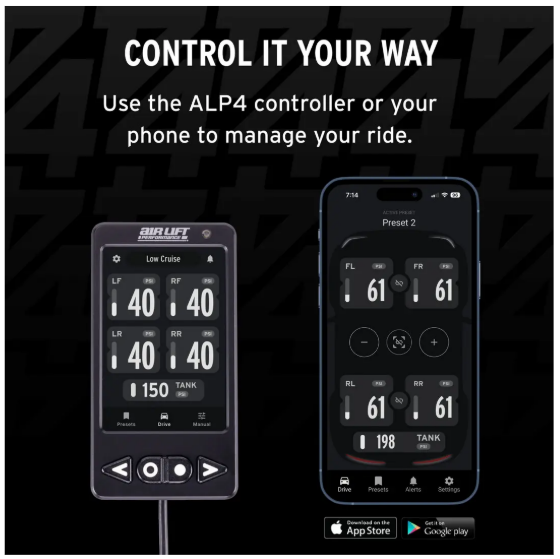

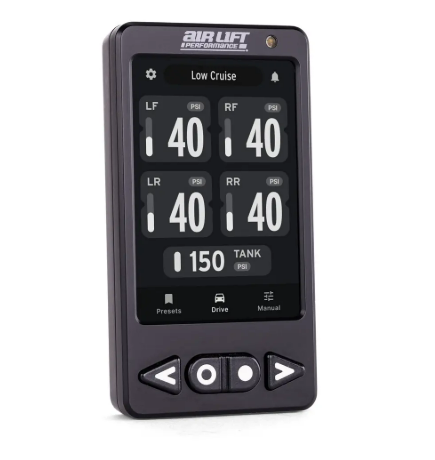

The system is paired with a premium 5-inch full-color touchscreen controller housed in anodized aluminum. Four tactile physical buttons provide instant access to presets, four-corner manual control, axle-based adjustments, full air-out, and additional customizable functions. With integrated mobile app support, you can monitor, adjust, and fine-tune your suspension from virtually anywhere.

What’s Included

• Threaded port manifold (1/4” FNPT)

• 5” full-color touchscreen LCD controller with physical buttons

• Main wiring harness (plug-and-play design)

• USB-A to USB-C cable (controller to harness connection)

• Manifold mounting hardware

• Electrical hardware

• (6) 1/4” MNPT x 1/4” PTC fittings

• (1) SMC water trap with manual drain and mounting strap

• (1) Air line cutter

• 60 ft of 1/4” DOT-approved air line

Key Features & Benefits

Advanced All-in-One Manifold

• Integrated ECU, solenoids, and pressure sensors for simplified installation

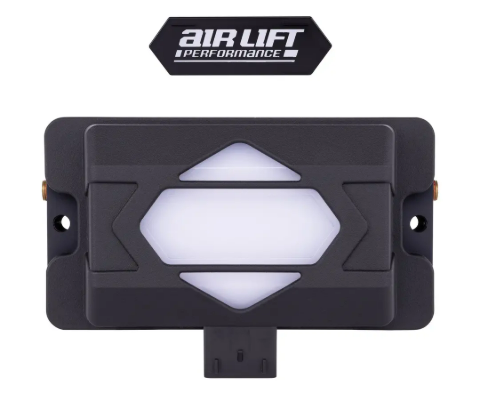

• Anodized black billet aluminum construction with LED-illuminated top cover

• Rotatable logo plate for custom orientation

• 1/4” FNPT threaded ports compatible with included PTC fittings or any 1/4” male-threaded fittings

Intelligent Control System

• 5” full-color touchscreen with auto-dimming ambient light sensor

• Four programmable physical buttons for instant adjustments

• Adjustable LED colors for manifold cover, controller backlight, and buttons

• Built-in diagnostics with clear system status messaging

• Compressor performance testing and health monitoring

Performance & Adjustability

• Pressure-based air management with optional upgrade to height-based control via Height Upgrade Kit

• Improved ride adjustment algorithms with learning and road filtering

• Adjustable pulse rate for fine-tuned responsiveness

• Adjustable preset maintain sensitivity (High, Medium, Low)

• Slow Lift/Lower Zone for smooth movement near minimum ride height

Smart Modes & Power Management

• Valet Mode with customizable lockout settings

• Show Mode for full system use with vehicle off (one ignition cycle)

• Advanced Standby Mode with wireless connectivity while minimizing power draw

• Controller, LEDs, and compressor disabled during standby for ultra-low energy consumption

Seamless Integration

• Plug-and-play harness requiring only power, ground, and keyed ignition

• Drop-in upgrade compatibility for existing 3P/3H setups

• Designed to integrate with available tank and compressor kits (sold separately)
