4-Input / 8-Output Digital Sound Processor with Bluetooth and App Control

4-In / 8-Out Digital Sound Processor with Bluetooth App Control (96kHz / 32-Bit DSP)

Take full control of your car audio system with this 4-input / 8-output digital sound processor, designed for precise system tuning, flexible routing, and clean signal management. With 4 RCA inputs and 8 fully configurable RCA outputs, it allows you to run multi-amplifier or fully active audio systems with complete channel adjustability and mixing control.

At the core is the AKM AK7735 DSP chip operating at 96kHz / 32-bit sampling, delivering high-resolution processing and accurate sound reproduction. Each channel includes 31-band parametric EQ, crossover configuration (HPF / LPF / Band-Pass), phase control, time alignment from 0–20ms, and limiter adjustments, along with adjustable noise gate settings for precise system optimization.

Bluetooth 5.1 connectivity allows full control through a mobile app for iOS and Android, making it easy to tune your system directly from your smartphone. The processor stores up to 6 presets locally, enabling quick switching between different tuning profiles.

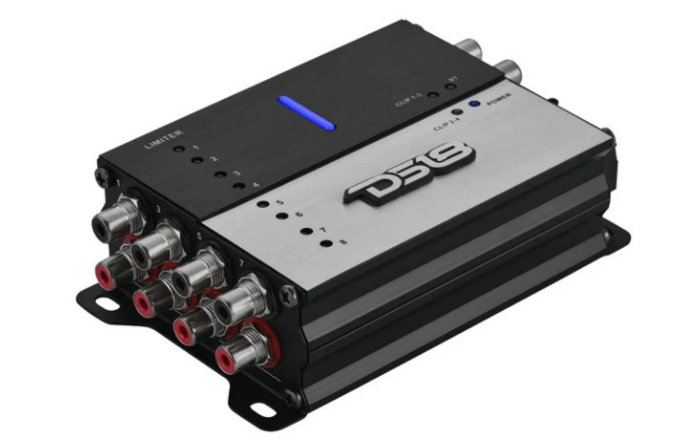

Designed for durability and signal clarity, the processor features Tiffany RCA connectors, anti-corrosion PCB coating, and a compact aluminum housing, making it ideal for a wide range of car audio installations.

Key Features

• 4 Input / 8 Output Control: Fully configurable RCA routing for active systems and multi-amp builds.

• High-Resolution DSP Processing: AKM AK7735 chip with 96kHz / 32-bit sampling for precise sound tuning.

• Advanced Audio Adjustment: 31-band parametric EQ, selectable crossovers, phase control, time alignment, and limiter per channel.

• Bluetooth App Control: Wireless tuning via iOS and Android app with 6 onboard presets.

• Clean Signal Performance: Up to 3.3V output, 101dB S/N ratio, and <0.04% THD for clear audio output.

• Compact & Durable Design: Aluminum housing with anti-corrosion PCB and premium RCA connectors.

Package Includes

• (1) 4-Input / 8-Output Digital Sound Processor

Specifications

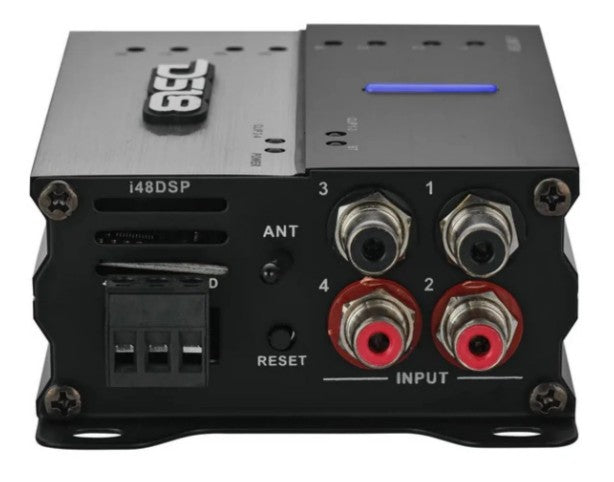

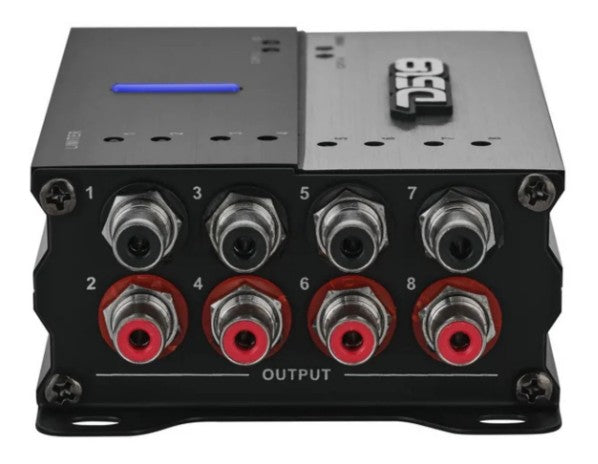

• Inputs / Outputs: 4 RCA Inputs / 8 RCA Outputs

• DSP Chip: AKM AK7735

• Sampling Rate: 96kHz / 32-bit

• Bluetooth Version: 5.1

• Smartphone App Control: Yes (iOS / Android)

• Presets: 6 stored presets

• Frequency Response: 20Hz – 20kHz

• S/N Ratio: 101 dB

• THD: <0.04%

• Input Sensitivity: 200mV – 6V

• Output Voltage: Up to 3.3V

• Stereo Separation: 93 dB

• Balanced Input Noise Rejection: 94 dB

• Time Alignment: 0 – 20 ms

• Noise Gate: Adjustable (-60 to -120 dB)

Equalizer

• EQ Type: Parametric (per channel) / Graphic (general)

• Bands: 31

• Boost / Cut: ±18 dB

• Q Factor: 0.3 – 15

Crossover

• Channels: 8

• Types: HPF / LPF / Band-Pass

• Frequency Range: 20Hz – 20kHz

• Slopes: Butterworth 6-48dB/Oct, Bessel 12-48dB/Oct, Linkwitz 12-48dB/Oct

• Phase: 0° / 180° selectable

Limiter

• Channels: 8

• Threshold: -60 to 6 dB

• Attack: 0 – 200 ms

• Release: 0 – 990 ms

• Auto Mode: Yes

General Features

• Operating Voltage: 9.5 – 15V

• Power Consumption: 300 mA

• Recommended Fuse: 1A

• Power Input Terminal: 16 Ga

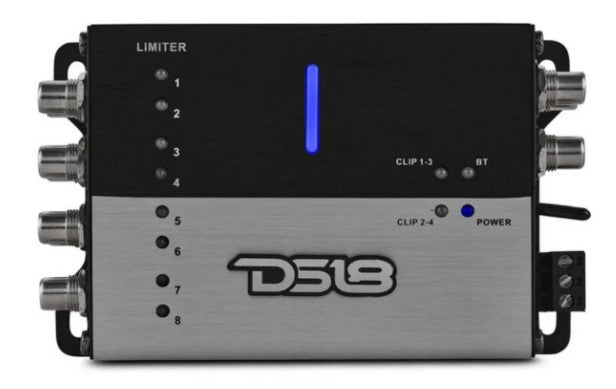

• LED Indicators: Power / Bluetooth / Clip / Limiter

• Voltmeter: Yes (via app)

• Remote Turn-On: Yes

• RCA Connector Type: Tiffany

• Housing Material: Aluminum

• Finish: Black / Silver Brushed

• PCB Anti-Corrosion Coating: Yes

• Surface Mount Components: Yes

Dimensions

• Length: 5.3" (135 mm)

• Width: 3.25" (83 mm)

• Height: 1.3" (34 mm)
