Resilient Sounds | SKU: RS-V2-PLAT-10-D2

Resilient Sounds Platinum 10 V2 10" Subwoofer – 2500W RMS, Dual 2 Ohm

$624.99

Ohm Load

2 Ohms (D2)

Accepted at checkout

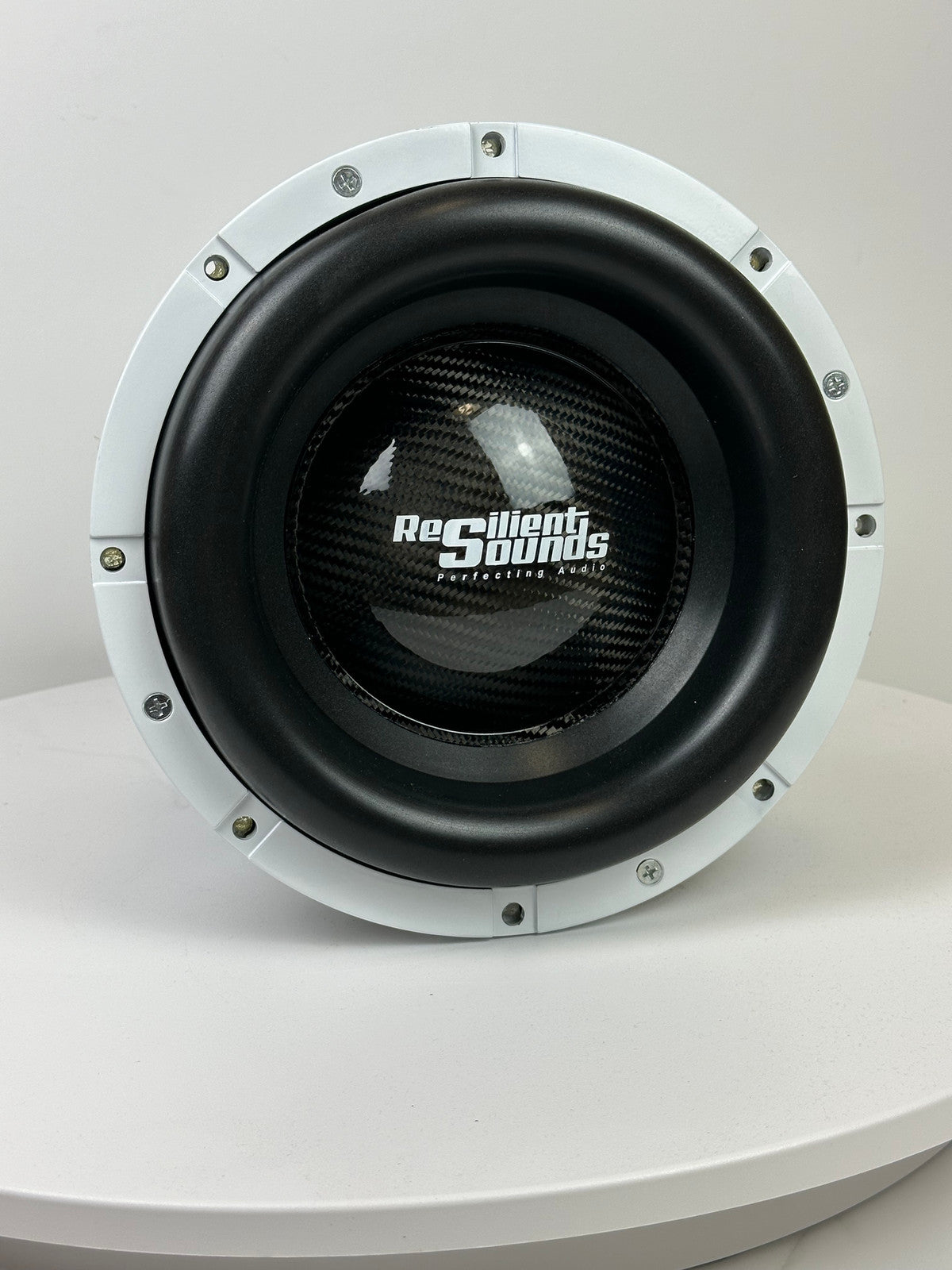

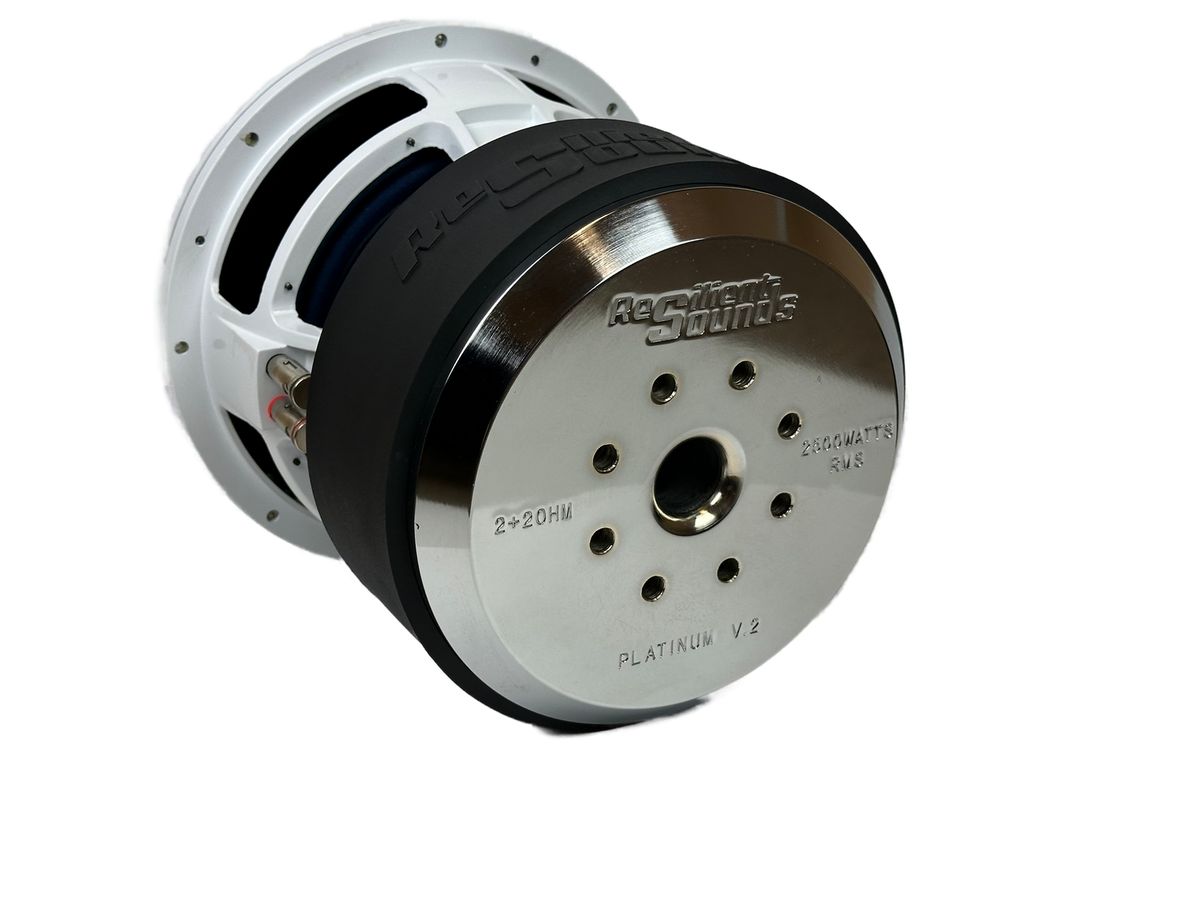

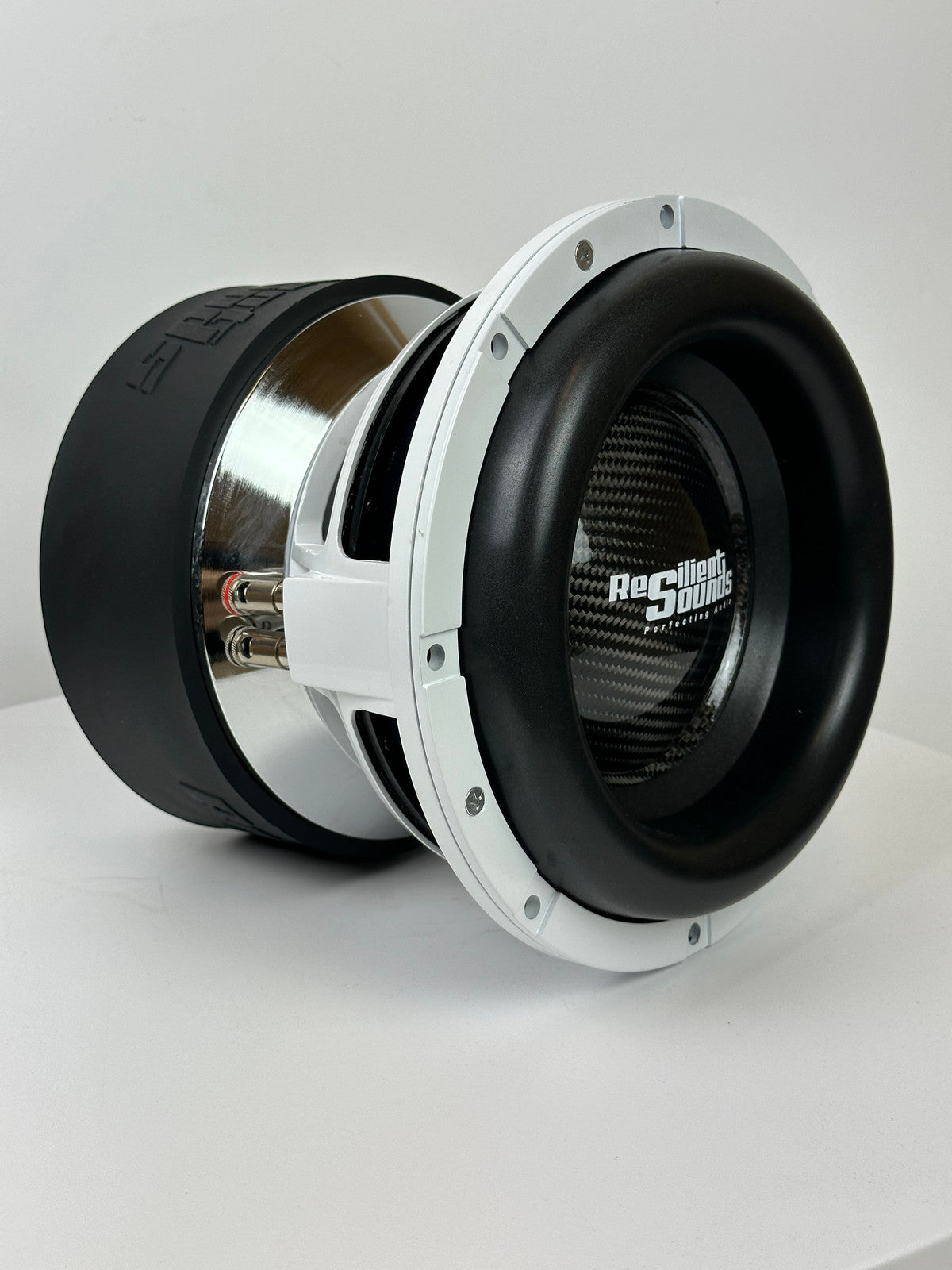

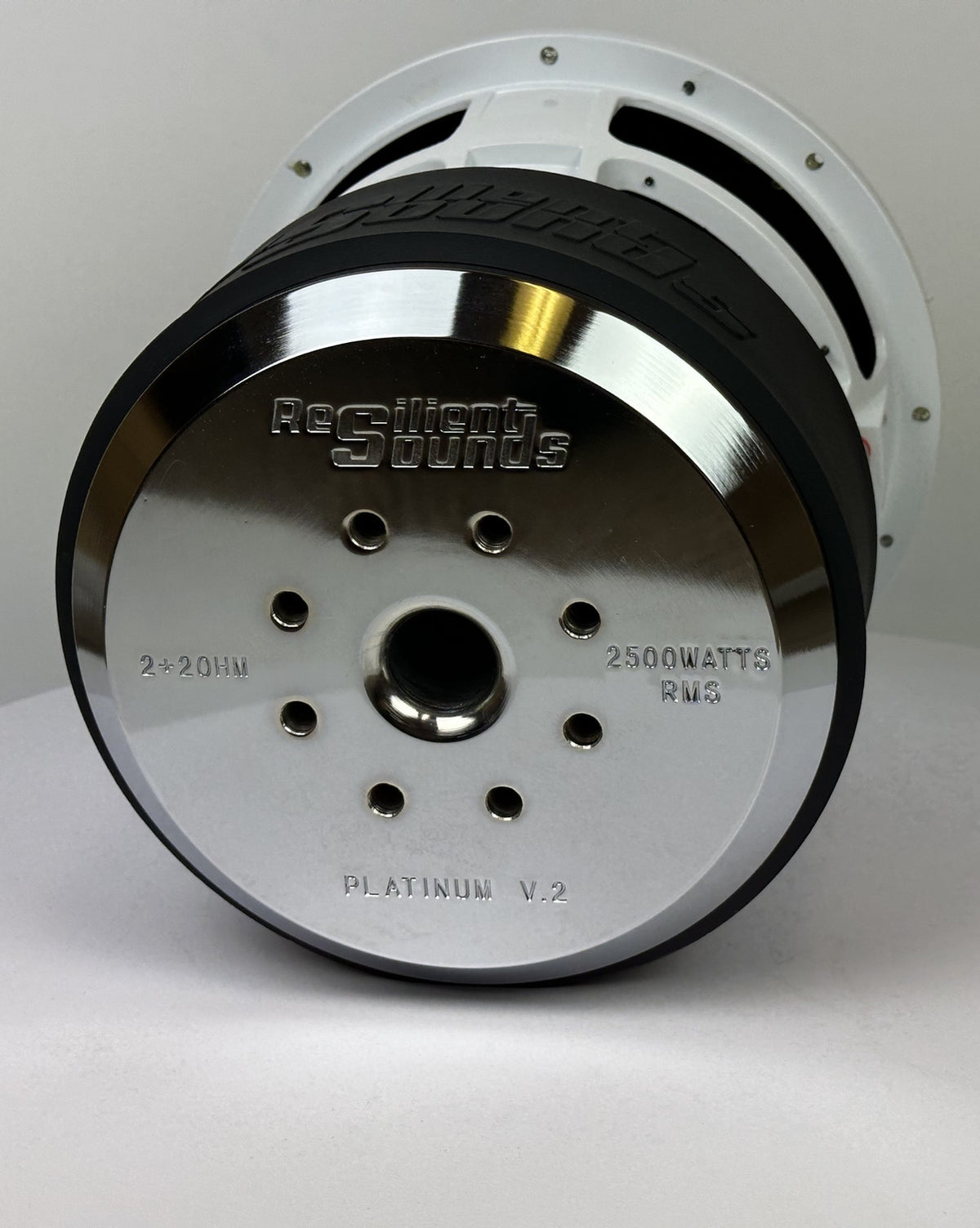

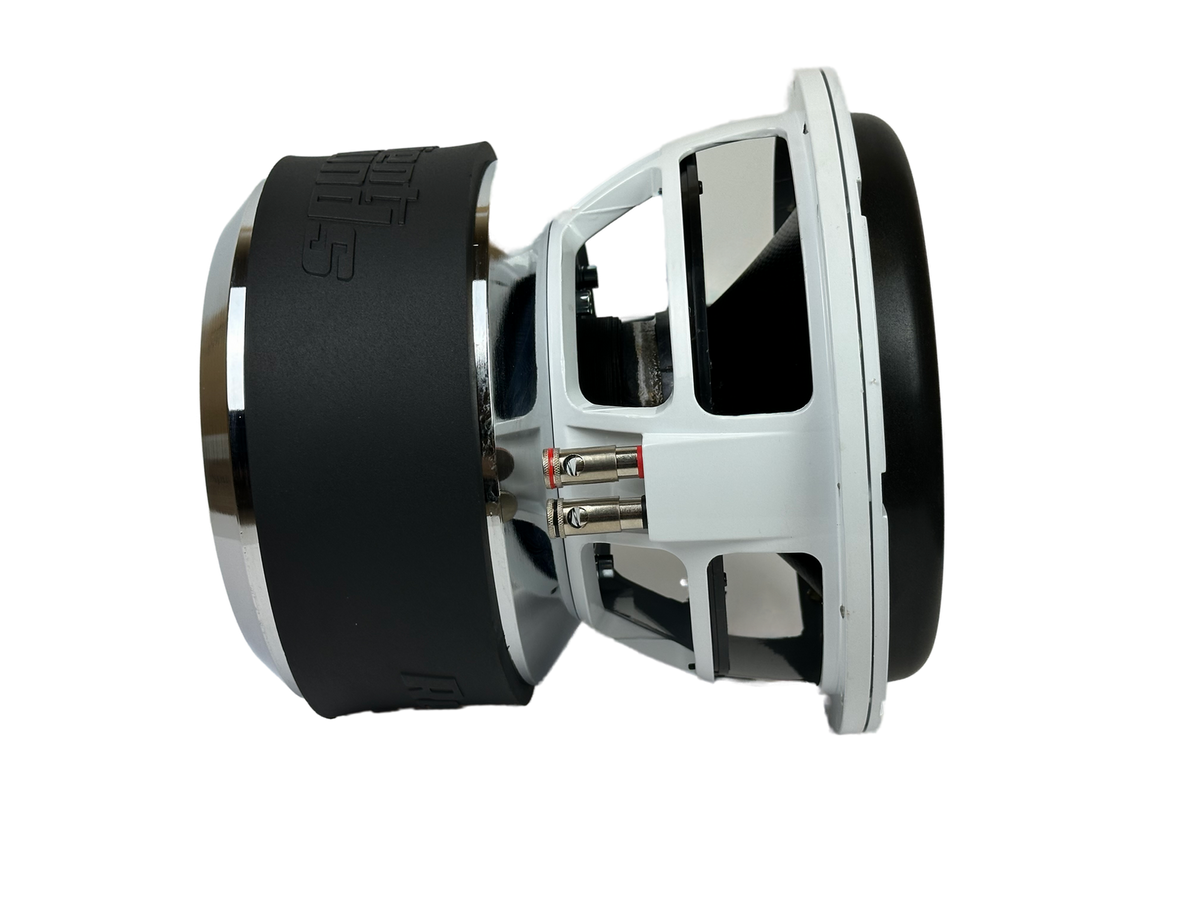

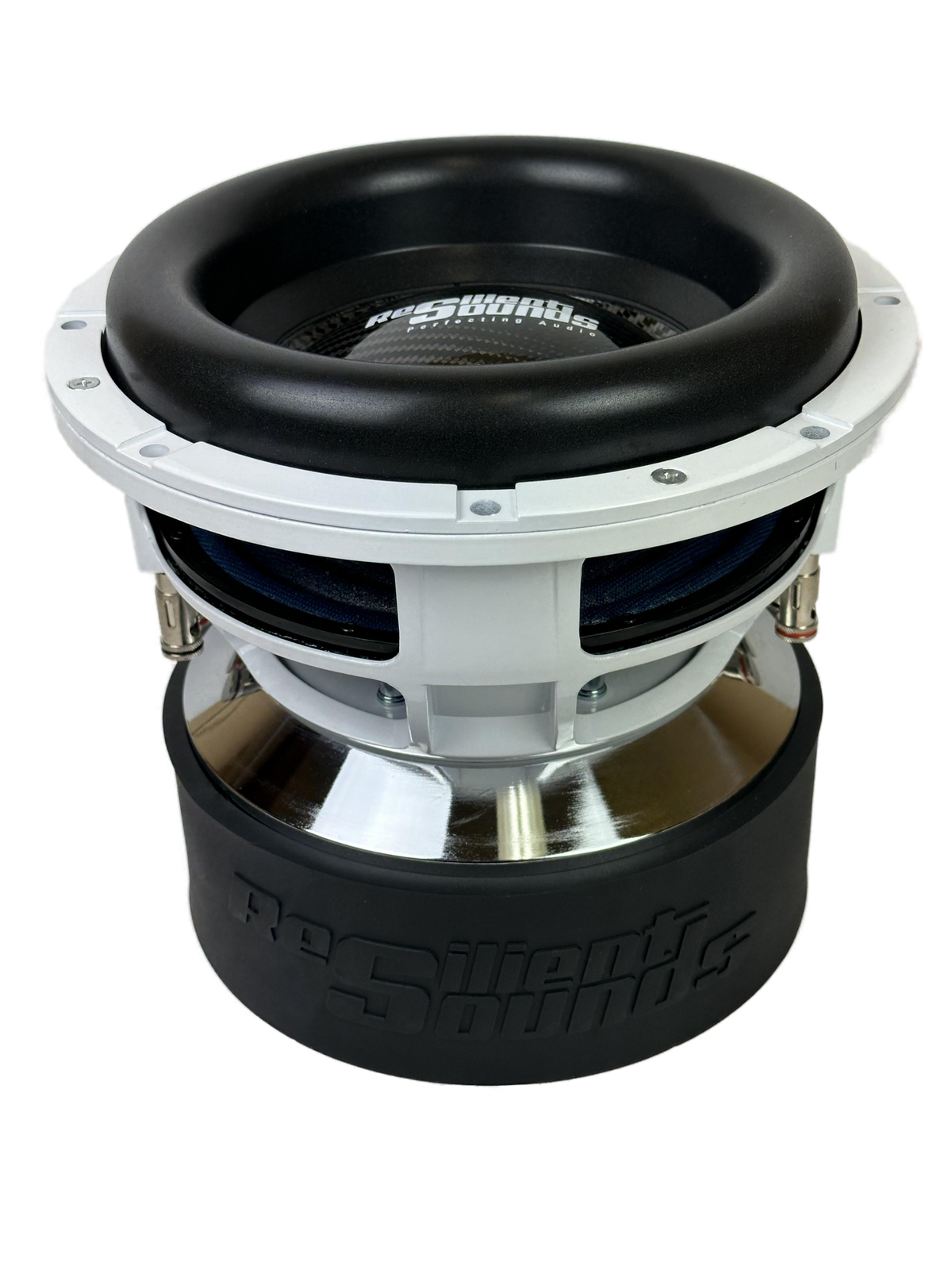

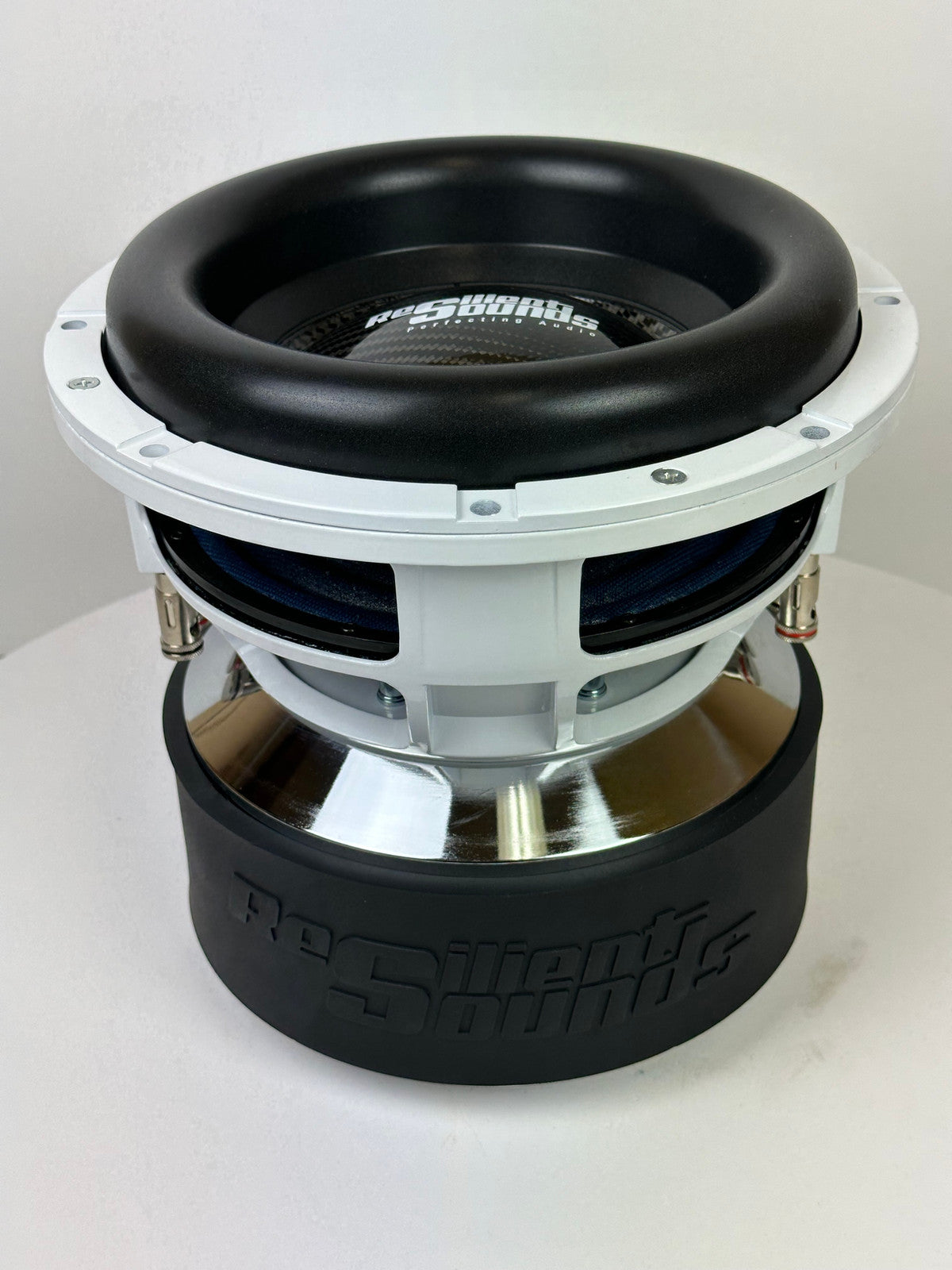

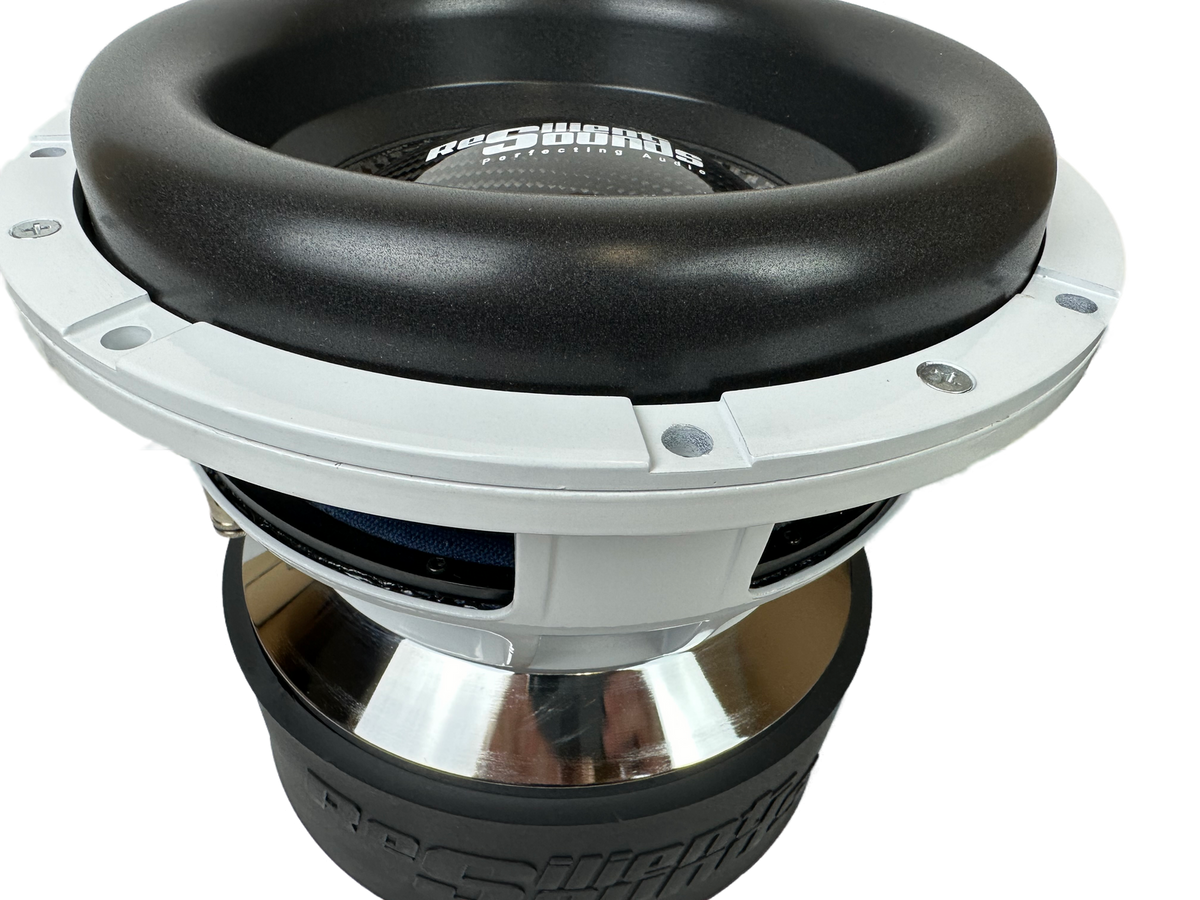

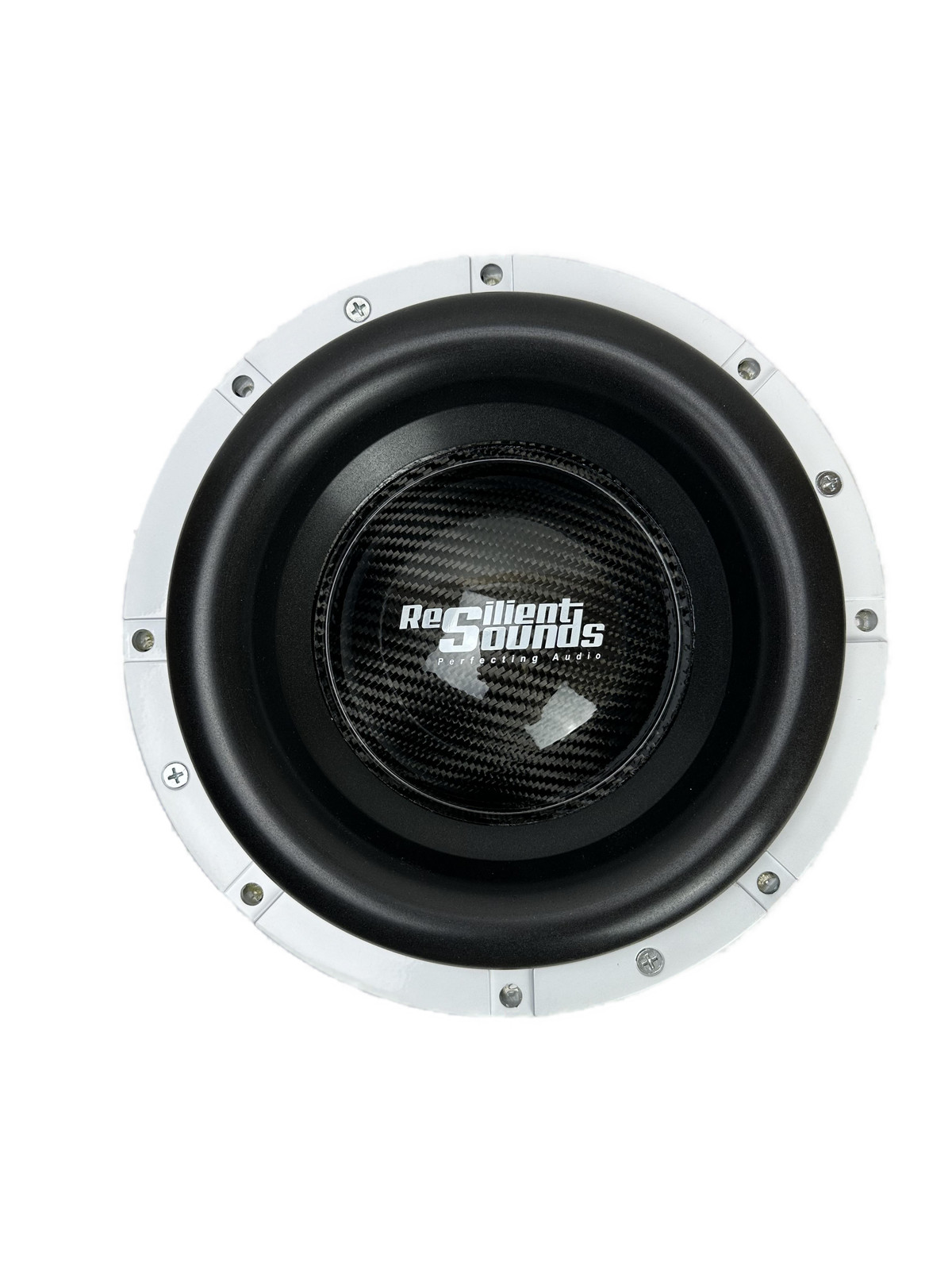

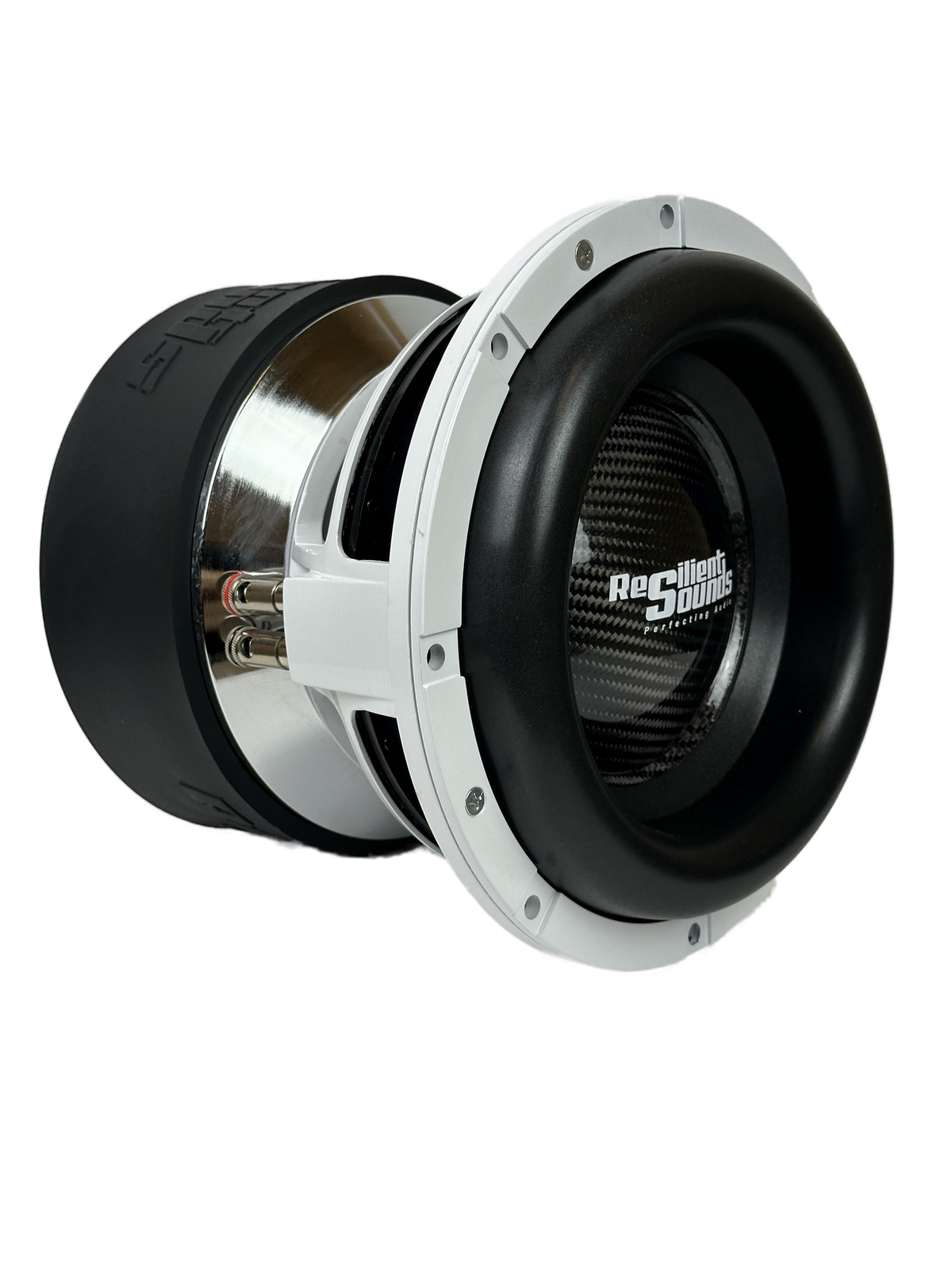

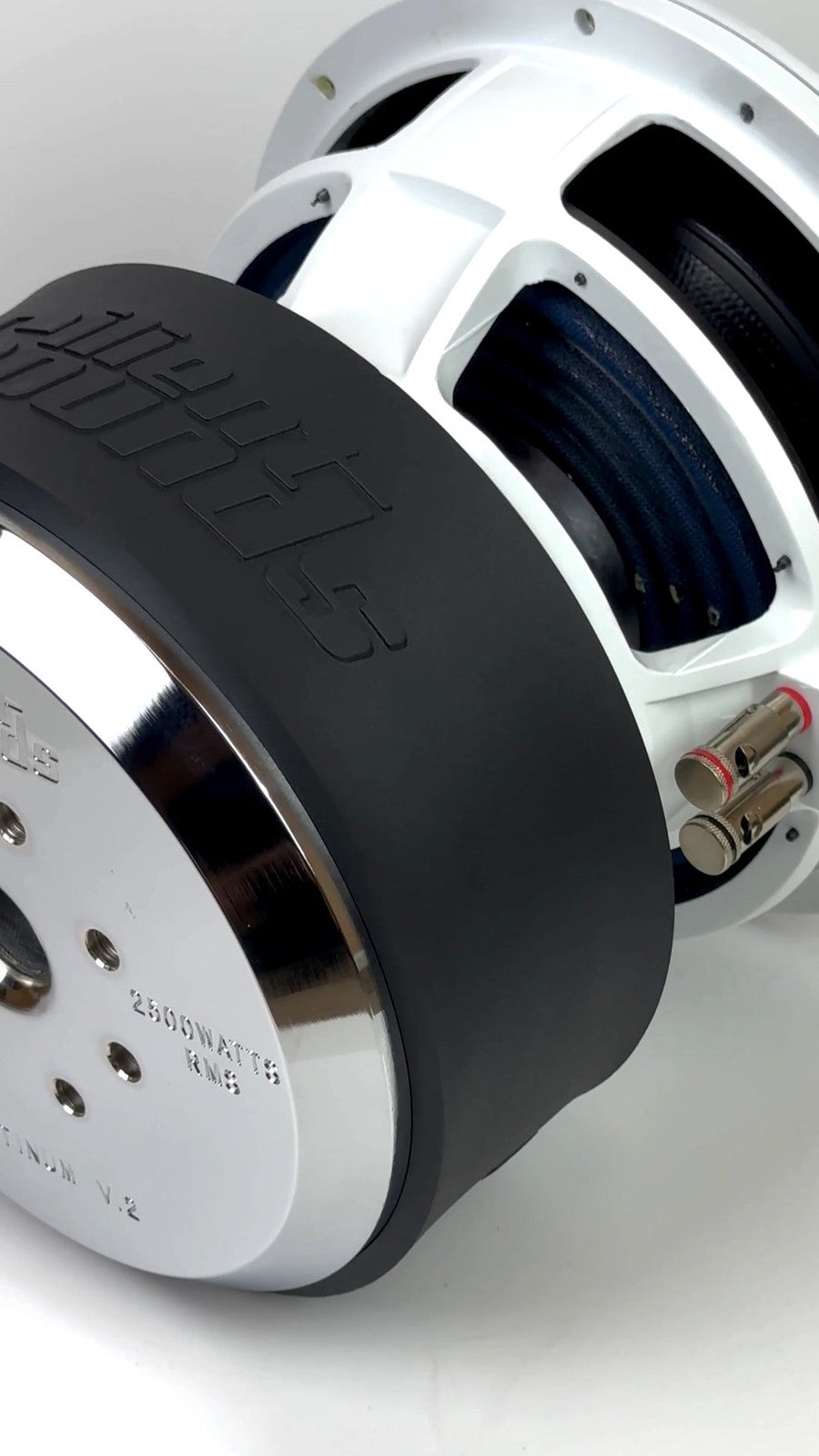

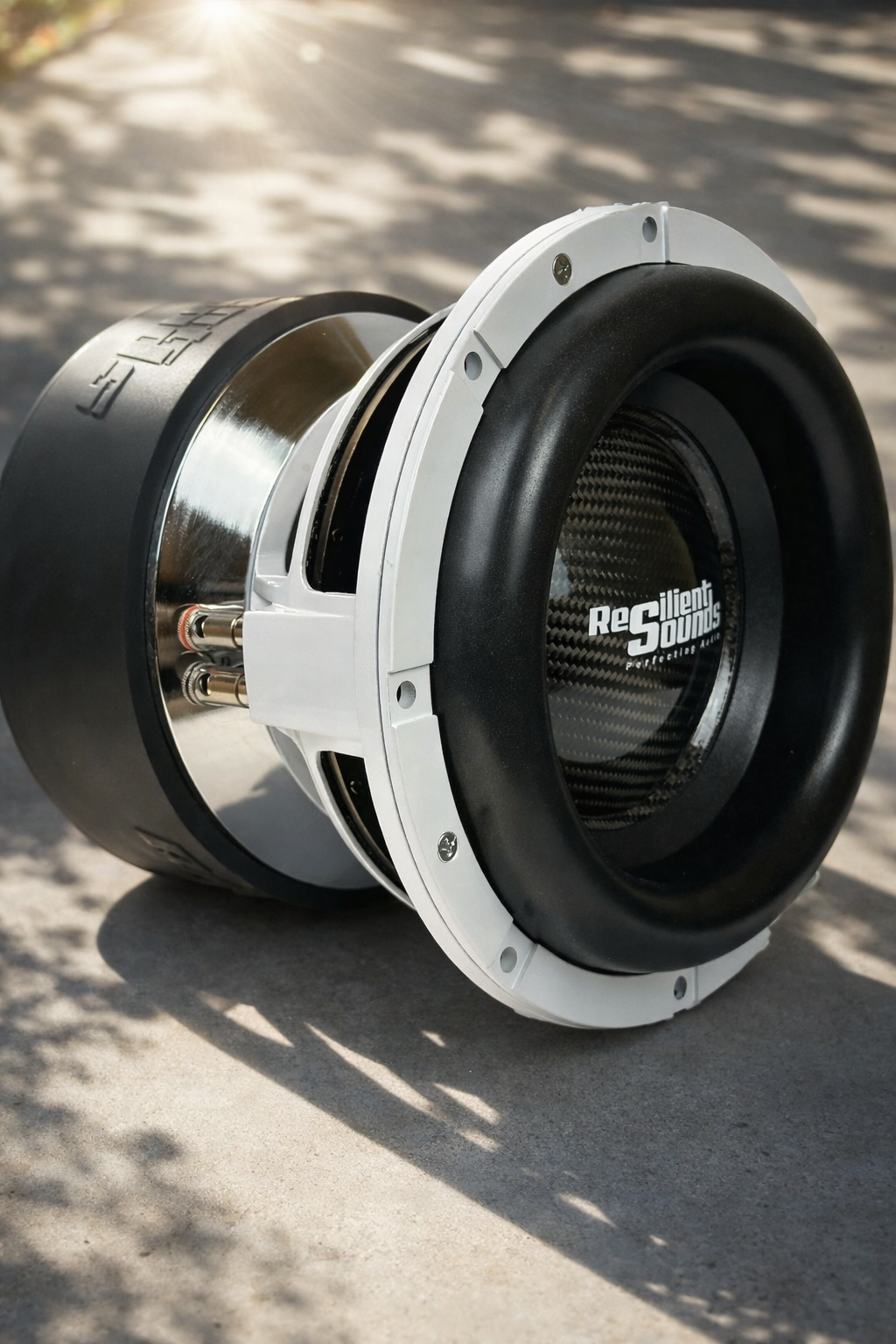

The Resilient Sounds Platinum 10 V2 is a 10-inch subwoofer conservatively rated at 2,500W RMS and 5,000W maximum power. Its XL triple-stacked motor, 3-inch 8-layer voice coil, and carbon-fiber cone and dust cap form the core of its V2 design.

This listing is for the dual 2-ohm (D2) version. Sold individually. Each subwoofer has two 2-ohm voice coils, allowing a single driver to be wired for a 1-ohm or 4-ohm final load.

Specifications

Model	Platinum 10 V2
Diameter	10 in
Voice coil configuration	Dual 2-ohm (D2)
RMS power handling	2,500W (conservative rating)
Maximum power handling	5,000W
Voice coil	3 in, 8-layer
Motor	XL triple-stacked motor
Spider pack	8.5 in with insulated dual leads
Cone and dust cap	Carbon fiber
Surround	High-roll tooled surround
Frame	Cast aluminum
Xmax	35 mm
Quantity	One subwoofer

Recommended Enclosure and Mounting

Recommended ported volume	1.5–2.25 ft³ per subwoofer
Recommended tuning	28–33 Hz
Port area	12–16 in² per ft³ of enclosure volume
Mounting depth	9.125 in
Cutout diameter	9-7/16 in
Driver displacement	0.22 ft³

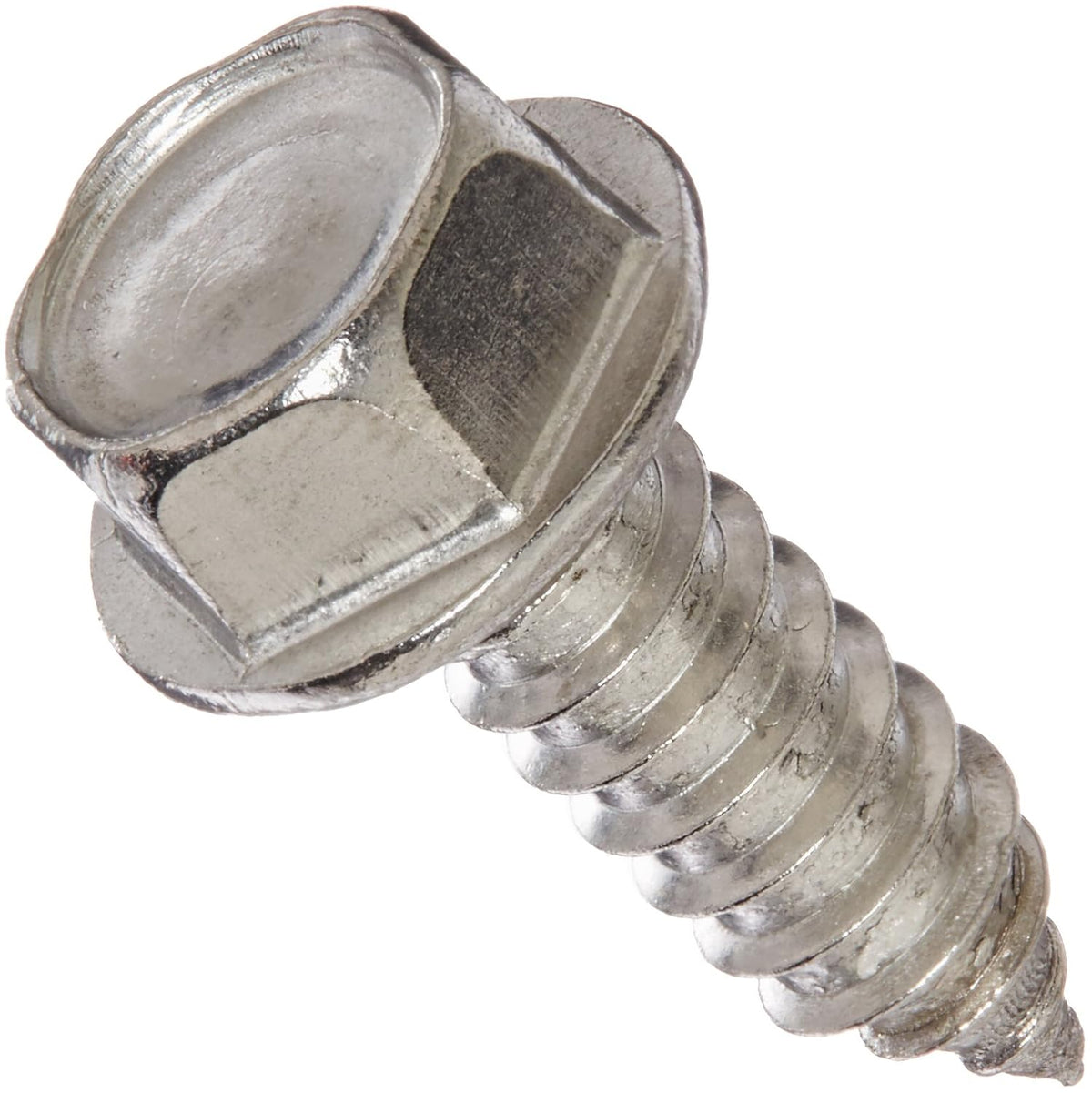

Resilient Sounds recommends hex-head mounting screws that avoid flaring against the V2 trim ring to help prevent cracking. The screw image in the gallery illustrates the recommended head style.

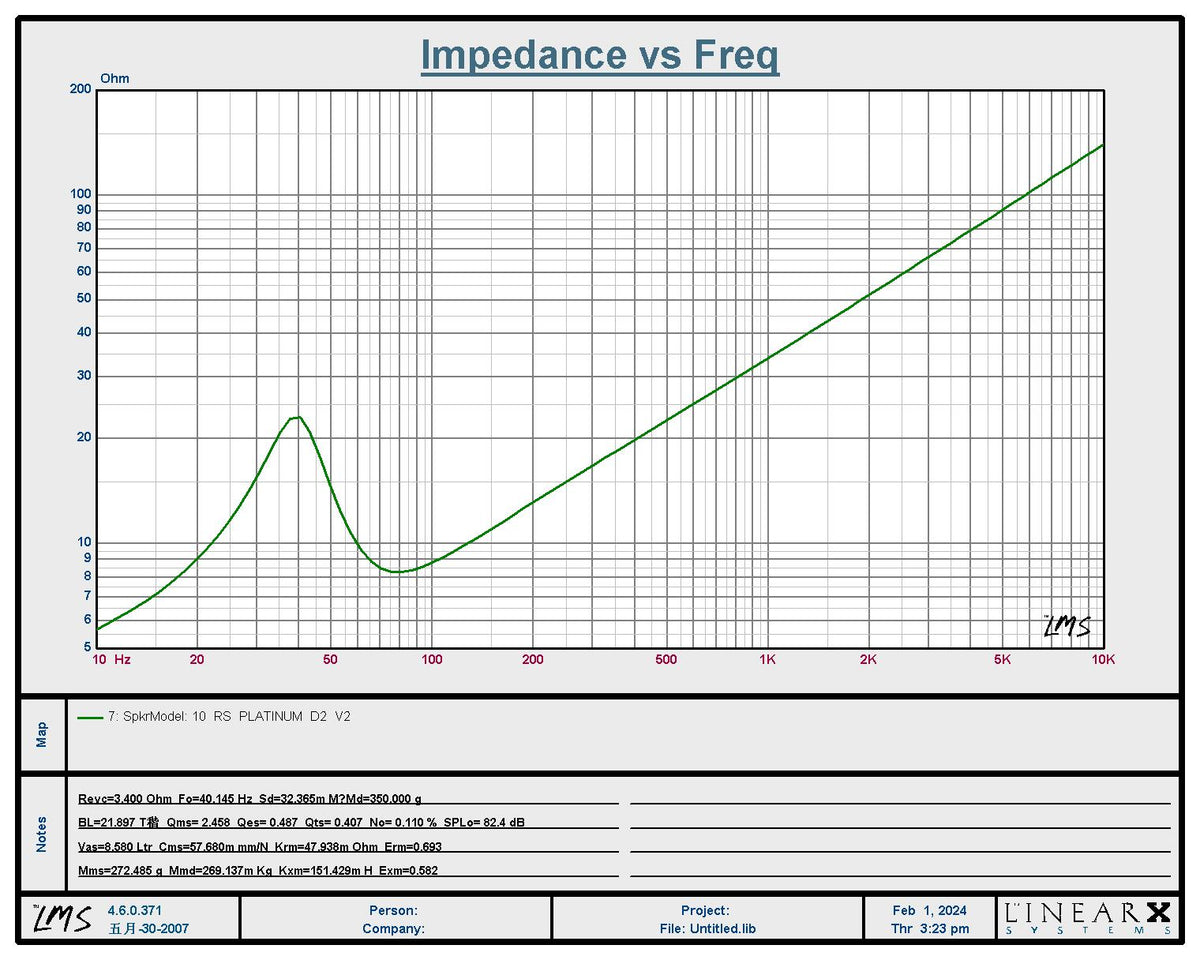

View the manufacturer’s D2 impedance chart and measured parameters
