Sky High Car Audio NEO84 8" Neo Midrange Speaker – 400W RMS / 800W Max, 4 Ohm (Single)
Sky High Car Audio NEO84 8" Neo Midrange Speaker – 400W RMS / 800W Max, 4 Ohm (Single) is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout
The Sky High Car Audio NEO84 is an 8-inch, 4-ohm pro audio midrange loudspeaker rated at 400W RMS and 800W maximum power. A neodymium ring magnet, 2.2-inch voice coil, paper cone, and aluminum basket make up its driver assembly for amplified car audio applications.
Sold individually — price is for one speaker.
Specifications
| Model | SH-NEO84 / NEO84 |
|---|---|
| SKU | SHCA-SH-NEO84 |
| Nominal diameter | 8 in |
| Nominal impedance | 4 ohms |
| RMS power handling | 400W |
| Maximum power handling | 800W |
| Sensitivity (1W/1m) | 97 dB |
| Frequency response | 65 Hz–12.5 kHz |
| Recommended high-pass crossover | 100 Hz |
| Voice coil diameter | 2.2 in / 55.88 mm |
| Voice coil former | Glass fiber |
| Winding material | CCAW |
| Cone | Paper |
| Surround | Cloth |
| Basket | Aluminum |
| Magnet | Neodymium rings |
| Magnet weight | 15 oz |
| Displacement volume | 0.056 L |
| Quantity | One speaker |

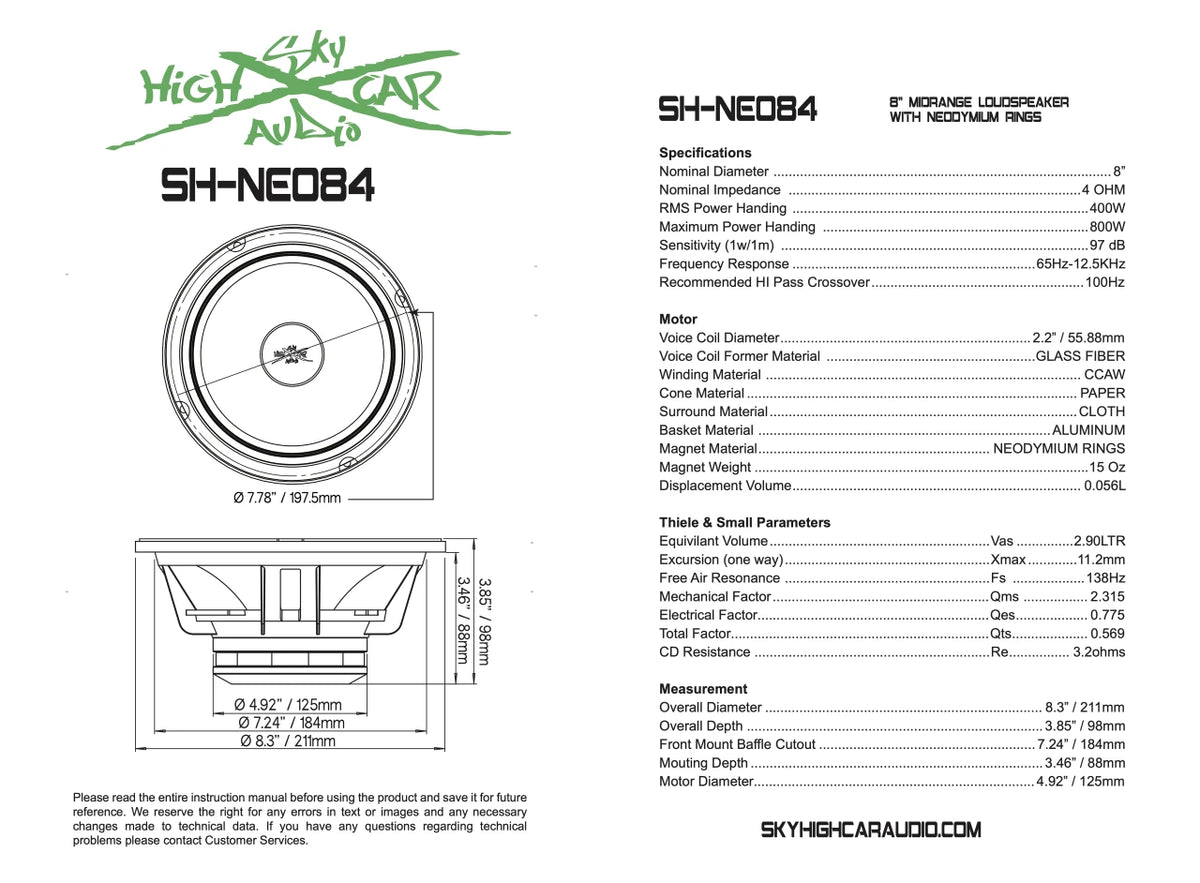

Mounting Dimensions
| Overall diameter | 8.3 in / 211 mm |
|---|---|
| Overall depth | 3.85 in / 98 mm |
| Mounting cutout | 7.24 in / 184 mm |
| Mounting depth | 3.46 in / 88 mm |
| Motor diameter | 4.92 in / 125 mm |
Thiele–Small Parameters
| Vas | 2.90 L |
|---|---|
| Xmax (one way) | 11.2 mm |
| Fs | 138 Hz |
| Qms | 2.315 |
| Qes | 0.775 |
| Qts | 0.569 |
| Re | 3.2 ohms |
The manufacturer recommends a 100 Hz high-pass crossover. Check the cutout and mounting depth against your installation space before ordering.
