Deaf Bonce Machete MFA-4.80 4-Channel Class D Amplifier – 120W RMS × 4 at 2 Ohms
Deaf Bonce Machete MFA-4.80 4-Channel Class D Amplifier – 120W RMS × 4 at 2 Ohms is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout

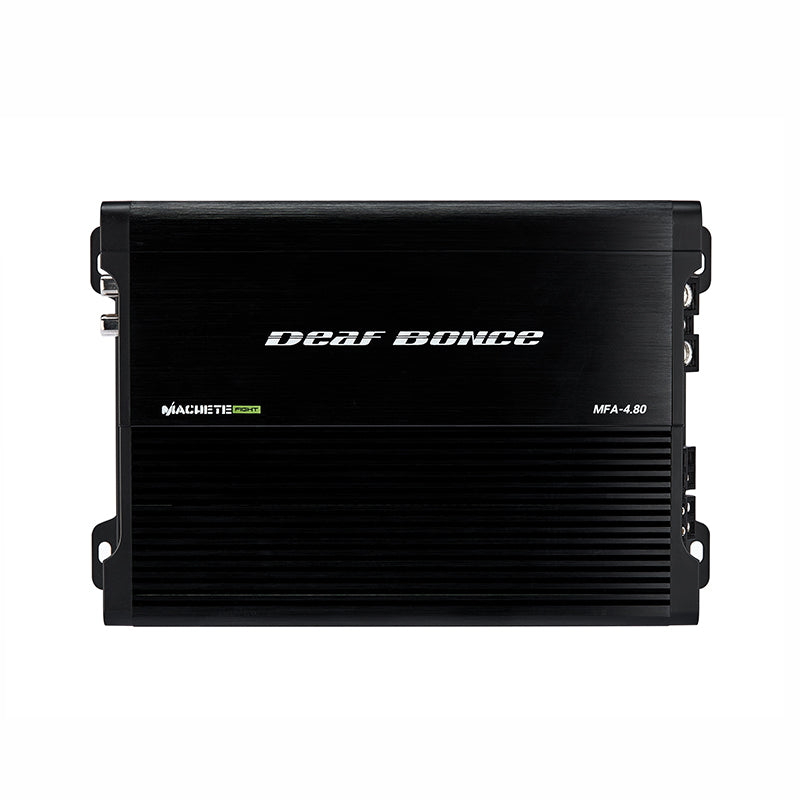

The Deaf Bonce Machete MFA-4.80 is a compact four-channel Class D full-range amplifier delivering 120W RMS per channel at 2 ohms, for 480W total. It also provides 80W per channel at 4 ohms or 240W per bridged pair into 4 ohms.
Specifications
| Model / SKU | MFA-4.80 |
|---|---|
| Amplifier class / channels | Class D / 4 |
| RMS output at 4 ohms (14.4V) | 80W × 4 |
| RMS output at 2 ohms (14.4V) | 120W × 4 (480W total) |
| Bridged RMS output at 4 ohms | 240W × 2 |
| Minimum stereo / bridged load | 2 ohms per channel / 4 ohms bridged |
| Frequency response | 20 Hz–20 kHz |
| Input sensitivity | 0.4–8V |

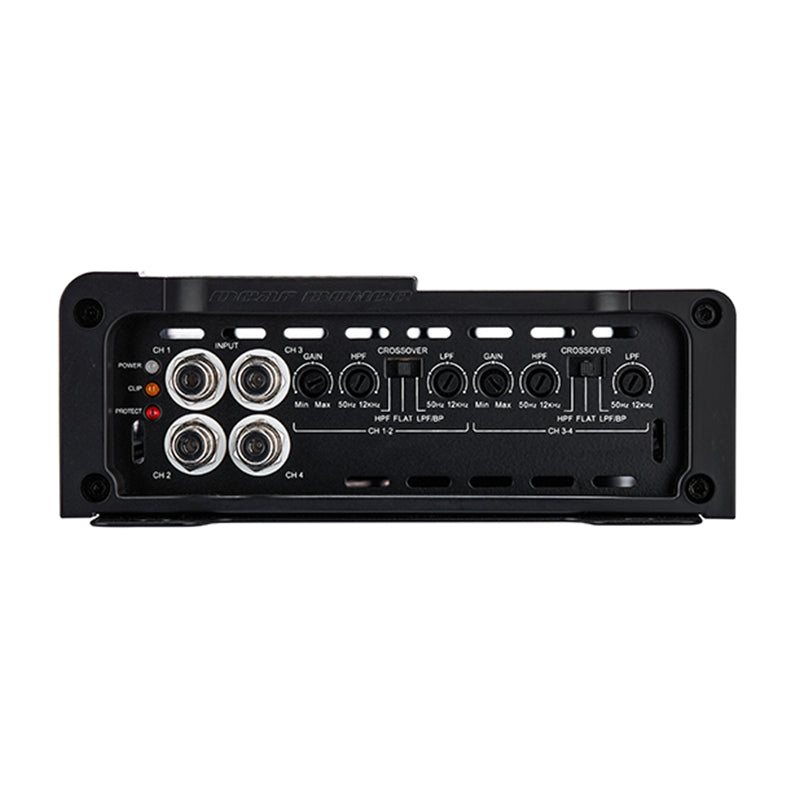

| High-pass filter | 50 Hz–12 kHz |
| Low-pass filter | 50 Hz–12 kHz |
| Simultaneous LPF and HPF | Supported |
| Crossover slope | 12 dB/octave |
| Signal-to-noise ratio | ≥90 dB |

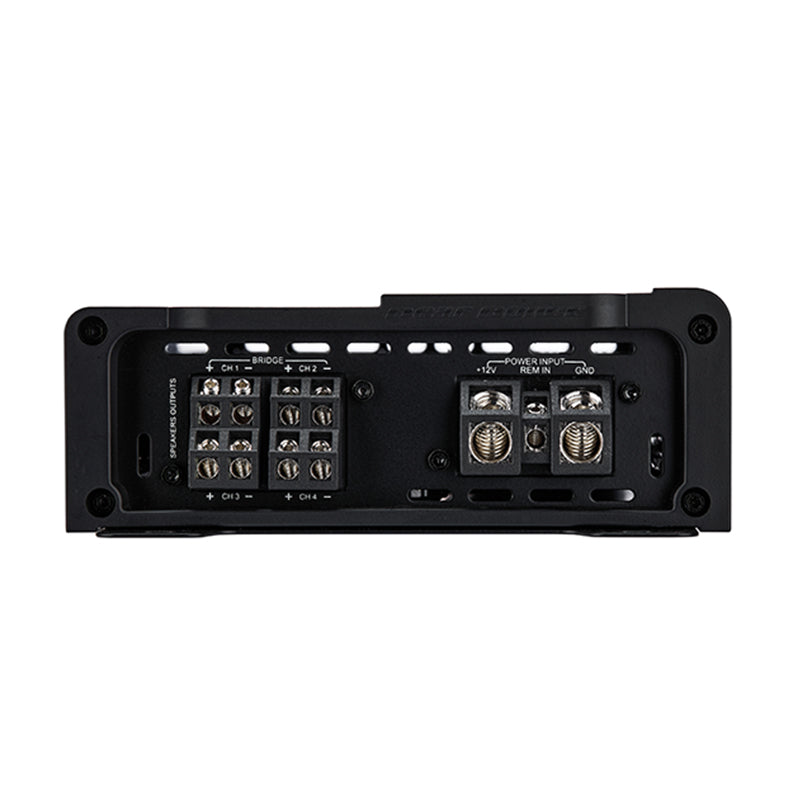

| Power input terminals | 4 AWG |
| Speaker output terminals | 10 AWG |
| Dimensions (W × L × H) | 9.2 × 6 × 2.2 in |
Independent high-pass and low-pass filters support simultaneous operation for band-pass applications. Observe the minimum load requirements when connecting your speakers.
