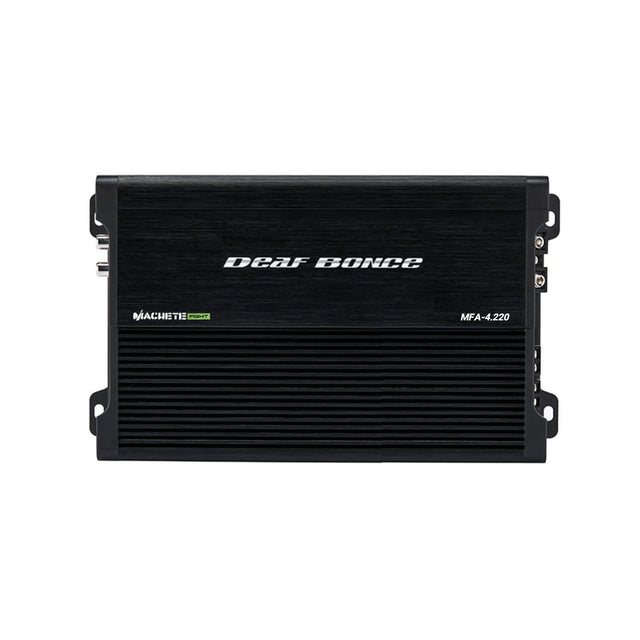

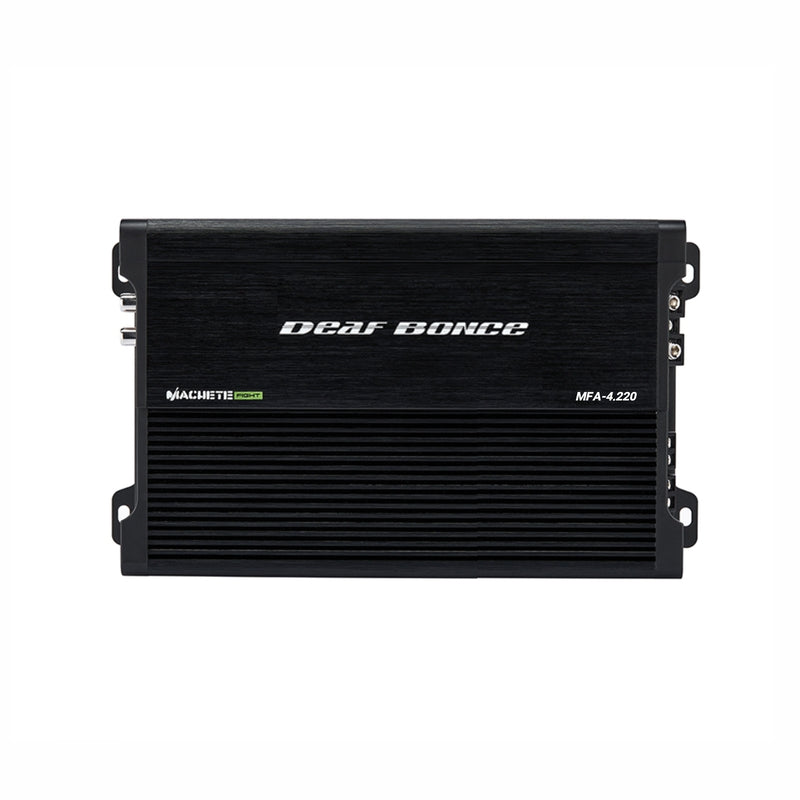

Deaf Bonce Machete MFA-4.220 4-Channel Class D Amplifier – 330W RMS × 4 at 2 Ohms
Deaf Bonce Machete MFA-4.220 4-Channel Class D Amplifier – 330W RMS × 4 at 2 Ohms is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout
The Deaf Bonce Machete MFA-4.220 is a four-channel Class D full-range amplifier delivering 330W RMS per channel at 2 ohms, for 1,320W total. It also provides 220W per channel at 4 ohms, or 660W per bridged pair into 4 ohms.
Specifications
| Model / SKU | MFA-4.220 |
|---|---|
| Class / channels | Class D / 4 |
| RMS output at 4 ohms (14.4V) | 220W × 4 |
| RMS output at 2 ohms (14.4V) | 330W × 4 (1,320W total) |
| Bridged RMS output at 4 ohms | 660W × 2 |
| Minimum stereo / bridged load | 2 ohms per channel / 4 ohms bridged |
| Frequency response | 20 Hz–20 kHz |
| High-pass filter | 50 Hz–12 kHz |
| Low-pass filter | 50 Hz–12 kHz |
| Simultaneous LPF and HPF | Supported |
| Crossover slope | 12 dB/octave |
| Input sensitivity | 0.4–8V |
| Signal-to-noise ratio | ≥90 dB |
| Operating voltage | 9–15V |
| Power input terminals | 4 AWG |
| Speaker output terminals | 10 AWG |
| Chassis dimensions | 10.5 × 6 × 2.2 in |

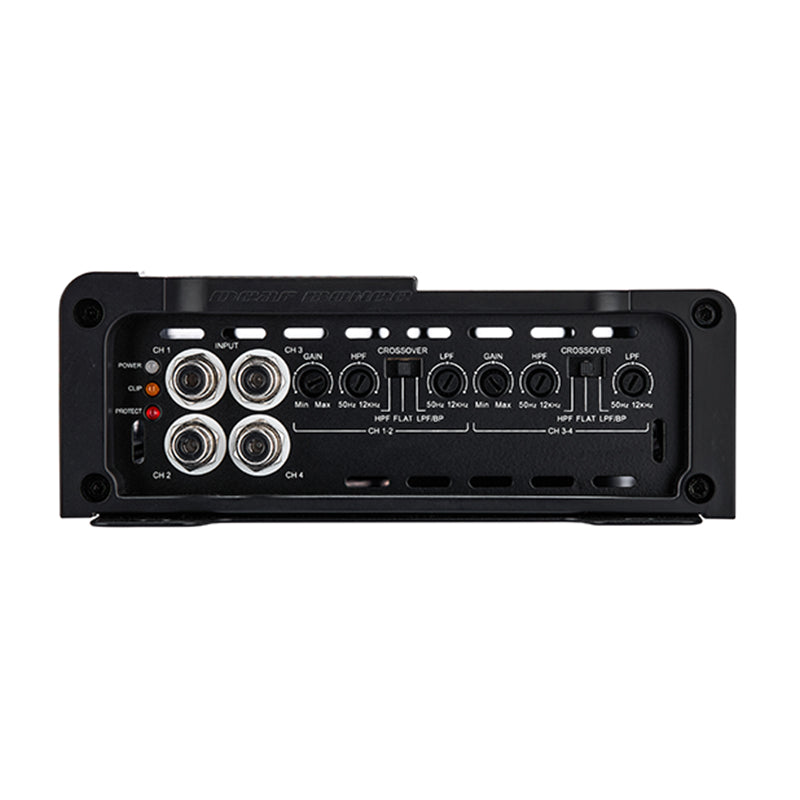

The adjustable high-pass and low-pass filters can operate simultaneously for band-pass speaker applications. Check mounting clearance and observe the minimum load requirements when wiring your system.
