Deaf Bonce Machete Fight 200.4 4-Channel Class D Amplifier – 200W RMS × 4
Deaf Bonce Machete Fight 200.4 4-Channel Class D Amplifier – 200W RMS × 4 is backordered. Review the product page for dispatch information and contact us before ordering if no estimate is shown.
Accepted at checkout
The Deaf Bonce Machete Fight 200.4 is a four-channel Class D amplifier rated at 200W RMS per channel at 4 ohms or 300W RMS per channel at 2 ohms. In bridged operation, it supplies 600W RMS per channel pair into 4 ohms.

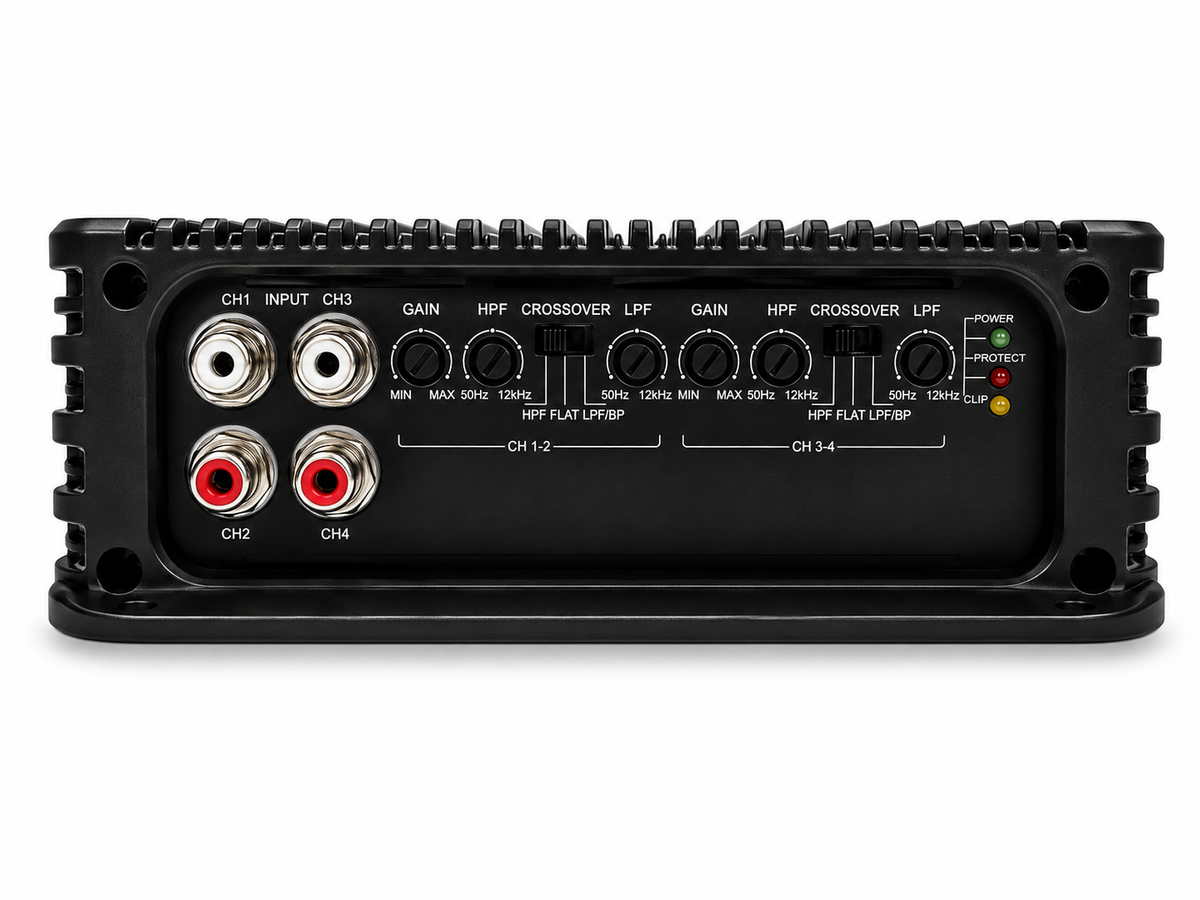

Independent high-pass and low-pass filters can run simultaneously for band-pass speaker applications. Its compact chassis measures 10.35 × 6.10 × 2.09 inches.
Specifications
| Model | Machete Fight 200.4 |
|---|---|
| Amplifier class / channels | Class D / 4 |
| Rated output at 4 ohms | 200W RMS × 4 |
| Rated output at 2 ohms | 300W RMS × 4 (1,200W total) |
| Bridged output at 4 ohms | 600W RMS × 2 |
| Minimum stereo / bridged load | 2 ohms per channel / 4 ohms bridged |
| Frequency range | 10 Hz–20 kHz |
| High-pass adjustment | 50 Hz–12 kHz |
| Low-pass adjustment | 50 Hz–12 kHz |
| Simultaneous HPF and LPF | Supported |
| Filter slope | 12 dB/octave |
| Input sensitivity | 0.3–8V |
| Signal-to-noise ratio | ≥88 dB |
| Damping factor | ≥58 |
| Supply voltage | 9–16.5V |
| Built-in fuse | None |

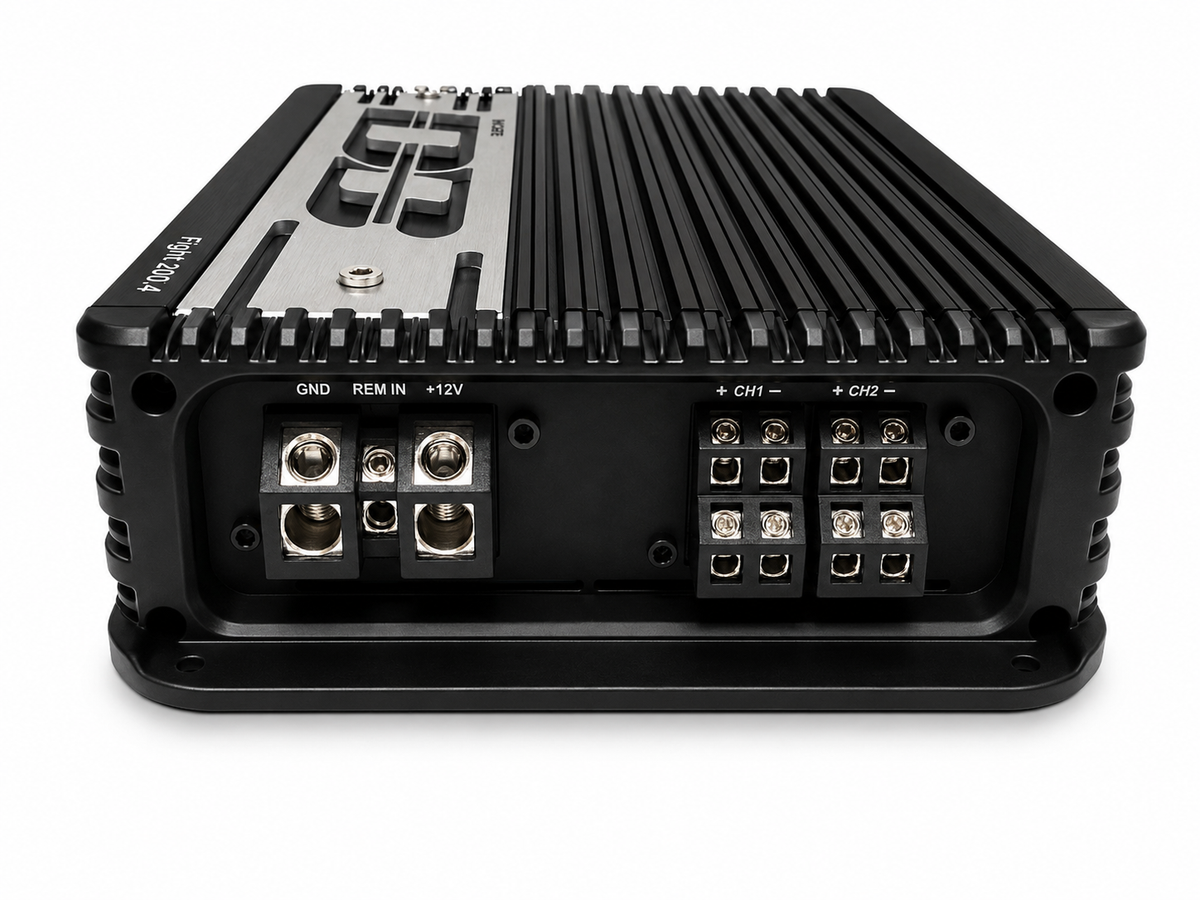

| Power connections | 4 AWG |
| Speaker connections | 10 AWG |
| Dimensions (L × W × H) | 10.35 × 6.10 × 2.09 in / 263 × 155 × 53 mm |
Manufacturer power ratings are measured at 14.4V and 1% THD. Observe the minimum load limits and use appropriate external fuse protection when installing.
